Place of Origin:
Hebei,China
Brand Name:
HengYuan
Certification:
ISO, CIQ, CQ
Model Number:
HY040405
Contact Us

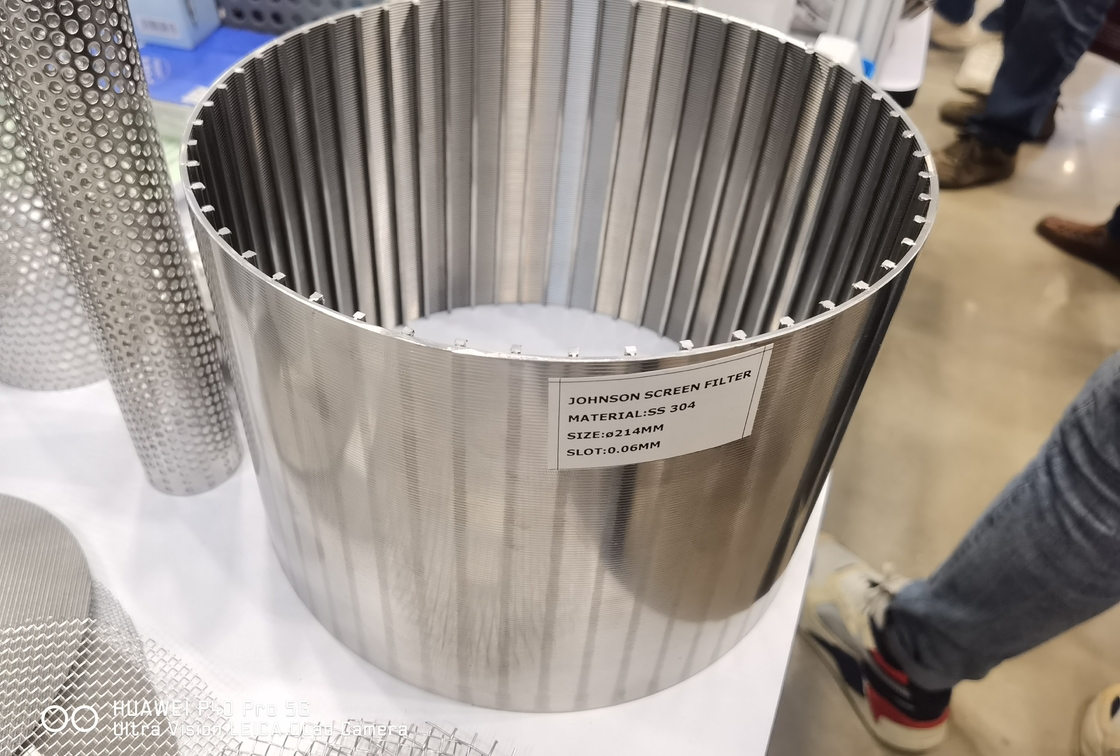

1. Wede Wire Screen with high open area are more suitable for the construction of high-quality water wells , oil wells and gas wells.
2. Low cost operation
Wedge wire screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down , thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition , high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus , which will avoid sand’s entering into screen because of high pressure , thus reduce the abrasion of the pump .
4. Extend the life span of wells
Comparatively , groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen . The slow water flow shall extend the life span of wells .
No. |
TYPE (mm) |
OD (mm) |
ID (mm) |
Support wire Number | Filter direction |
1 | SRD25.4 | 25.4 | 18.6 | 12 | FOTI |
2 | SRD 33 | 33 | 24 | 8 | FOTI |
3 | SRD 37 | 37 | 28 | 8 | FOTI |
4 | SRD 40 | 40 | 31 | 8/10 | FOTI/FITO |
5 | SRD 45 | 45 | 36 | 10/12 | FOTI/FITO |
6 | SRD 48 | 48 | 38 | 12 | FOTI/FITO |
7 | SRD 60 | 60 | 51 | 12 | FOTI/FITO |
8 | SRD 70 | 70 | 61 | 12/18 | FOTI/FITO |
9 | SRD 85 | 85 | 76 | 18 | FOTI/FITO |
10 | SRD 110 | 110 | 101 | 24 | FOTI/FITO |
11 | SRD120 | 120 | 111 | 24 | FOTI/FITO |
