Shallow Well Johnson Stainless Steel Well Screens With ISO / CIQ / SGS Certificate

Shallow Well Johnson Stainless Steel Well Screens With ISO / CIQ / SGS Certificate

water well screen

johnson screen pipe

Place of Origin:

Anping, Hebei, China

Brand Name:

Hengyuan

Certification:

ISO,CIQ,SGS

Model Number:

can also make 2 " 3 " 4 " 8 " 10 " 12 " 14 " 16 "

Contact Us

Request A Quote
Product Details
Material:
Low Carbon Galvanized Or Stainless Steel
Length:
2.9m Or 5.8m To Fit Container
Slot:
0.5mm, 0.75mm, 1.0mm,1.5mm And So On
Enc Connection:
Welded Rings Or Male/Female Threaded
Product Description

6 " Low Carbon Galvanized Johnson Type Wound Screen For Shallow Well



Johnson type wound screen also be named Johnson type water well screen, Rod based continuous slot well screen. It is made up of Vee-shaped wire and round support rod in each intersection welded together.

Note: We use round support rod, to avoid the wound screen stuck with the pump.





Wound Screen Information:



Material: Low carbon galvanized or stainless steel.

Diameter: 2" 3" 4"  6"  8" 10" 12" 14" 16"

Slot size: 0.5mm, 0.75mm, 1.0mm in usual, we can also make other slot as your request.

Length: 2.9m or 5.8m to fit container, the length upto 6 meters.

End connection:Male/female threaded couplings Or Welded rings/ Plain beveled ends



SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)



COLLAPSE

STRENGTH

(BAR)



TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59



These size is this form, are all normal size we make.

We can also any other sizes as your request.

Pls supply your drawing to us is ok.





Why choose us ?



1. We are manufacture.

2. We can give you the best quality products with competitive price.

3. Professional sales team can give you feedback within 24 hours.

4. We offer 12 months excellent after-sale service.

5. We offer customized service.

6. Our service is available twenty four seven, that is twenty four hours a day and seven days a week.

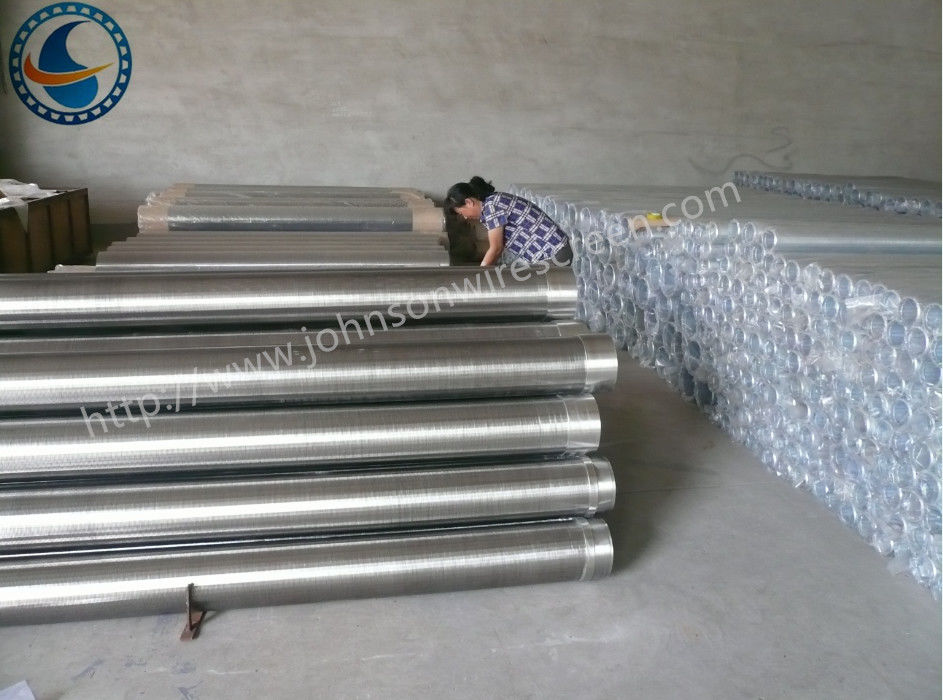

Shallow Well Johnson Stainless Steel Well Screens With ISO / CIQ / SGS Certificate 0
