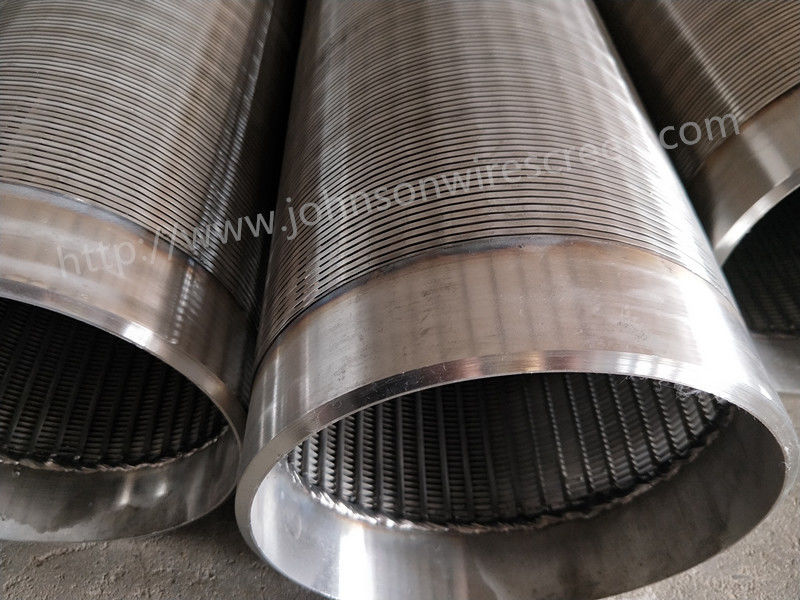

273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings

    • 273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings
    • 273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings
  • 273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings

    Product Details:

    Place of Origin: Hebei,China
    Brand Name: Heng Yuan
    Certification: ISO9000
    Model Number: 10"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: Moister-Barrier with each piece,110 pcs per 20 ft container
    Delivery Time: 7-10 work days,according to the quantity
    Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000pcs/Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Grade: 304, 304L, 316L
    Slot Size: 1.0mm Diameter: 10"
    Length: 5800mm End Connection: Welded Rings
    Wrap Wire: 3.0*4.6mm Support Rod: ø3.8mm





    273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings





    Deep Well Water Well Screen , 273mm Diameter , 3 Meters Length With Welded Rings





    Product Description:



    Deep Well Water Well Screen is continuous slot screen ,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.



    Both the inner and outer screens shall be constructed of Vee-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.





    Specification:



    Material stainless steel
    Grade 304
    O.D 273 mm
    Size 10 "
    Length 3.0 meters
    Solt size 1.0mm
    End connection Welded Rings
    Wire size 3.0*4.6mm
    Support rod ø3.8mm
    Wire shape Vee shaped





    Use:



    Deep Well Water Well Screen is a kind of filtered water tubing with the perforation.



    It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, water supply, the environmental protection, Polluted water and sundries separating, the petroleum industry, crude oil refining, mineral processing, foodstuff processing, and so on the organic solution recycling filters.







    273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings



    273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings



    273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings
