Place of Origin:
Hebei,China
Brand Name:
HengYuan
Certification:
ISO 9001-2008
Model Number:
106
Contact Us

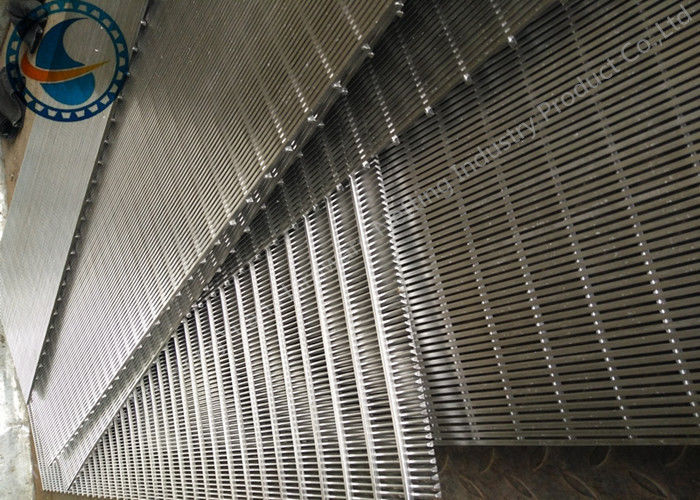

5*10 V Wire & 4*8mm Square Wire Stainless Steel 304L Heavy Duty Wedge Wire Screen Panel
Welded wedge wire screen panels can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.
Flat screen panel can be designed to optimize the open area, strength and wear life for each application. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.
1. Flat Screen with round support rods.
2. Flat Screen with rectangular support rods.
3. Screen Panel with side frame.
4. Heavy duty wedge wire.
|
Material |
SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc |
||||||
|
Length Range |
Up to 6000mm |
||||||
|
Width Range |
Up to 6000mm |
||||||
|
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
|
Other Shapes |
Could cut to any shape according to requirement, such as round, semicircle, sector, and so on. |
||||||
|
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5x2 |
2x3 |
2x4 |
3x5 |
|
Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.8x2.5 2x3 |
2x3 2x4 3x5 3x6 3x10 4x7 |
2x4 3x5 3x6 3x10 4x7 5x6 |
3x5 3x6 3x10 4x7 5x6 5x8 |
|
End Finishing |
With the frame, without any frame, according to request. |
||||||
|
Note |
Customized According To Requirement |
||||||
Contact me: hengyuan3@aphywire.com Skype:cherryhan09
--------------------------------------------------------------------------------------------------------------------------
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
