Johnson Wedge Wire Screen Panels 486 Width 36mm Thickness Customezied

Johnson Wedge Wire Screen Panels 486 Width 36mm Thickness Customezied

    • Johnson Wedge Wire Screen Panels 486 Width 36mm Thickness Customezied
    • Johnson Wedge Wire Screen Panels 486 Width 36mm Thickness Customezied
  • Johnson Wedge Wire Screen Panels 486 Width 36mm Thickness Customezied

    Product Details:

    Place of Origin: Hebei,China
    Brand Name: Heng Yuan
    Certification: ISO9000
    Model Number: HY004

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
    Delivery Time: 7-10 work days,according to the quantity
    Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000pcs/Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Grade: 304
    Slot Size: 0.5mm Length: 1219 Mm
    Width: 486

    Stainless Steel Johnson Screen Plate 36mm Thickness Customezied







    Product Description:

    Stainless Steel Johnson Screen Plate 36mm Thickness Customezied is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire ,a triangular wire,  rectangle or a trapezoidal wire. There is a certain distance between each support bar too . The filter surface is smooth, the gap is uniform, and it is not easy to block.

    The Johnson screen can be made into a wide variety of products, and the ribs can be welded on the four sides or the bottom of the screen to enhance his firmness.
    The screen can also be made into a curved screen according to customer requirements, so that the surface of the screen forms a certain arc.





    Specification:


    Material Stainless steel
    Grade 304
     Dimension 1219mm*486mm, request
    Slot Size 0.5 mm,request
    Width  486mm, up tp 3000mm
    Length  1219mm, up to 4430mm
    Type  screen plate
    Wire size 2.5*4.8 mm
    Support rod 1.8*25 mm
    Wire shape V shape



    Regular Specifications:



    Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

    Slot: 0.1mm - 35mm

    Discrepancy: + / - 0.05mm

    Dimension: width up to 3000 mm

                        Length up to 4430mm

    SIZES OF THE WIRE AND ROD
    WIRE SHAPE V V V V V V
    Width(mm) 1.0 1.2 1.5 2.0 2.2 3.0
    Height(mm) 2.0 2.0 2.0 3.5 4.5 4.6
    ROD SHAPE V V V V V O
    Width(mm) 2.0 2.2 3.0 3.0 3.2 Diameter
    Height(mm) 3.0 4.5 4.6 5.0 6.0 3.0~3.8


    Industry:



    Professional Satinless Steel Welded Screen Use For Coal Washer can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.

    1.  mining machinery: used for desilting and dewatering of coal preparation plants, coal whasher.
    2.  wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
    3.  beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
    4.  huanbao: used for filling oil, gas and Wells with sand and gravel to protect underground and ground equipment.It has the advantages of high opening rate, large filtration area, fast filtration speed and long service life.
    5.  food industry: the filtration process can be used for food and beverage.
    6.  aquaculture: used for farming, cleaning up waste residues from animals.
    7.  chemical industry and other: sewage treatment for sugar mills and paper mills; Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant; Starch filtration in the food factory; Ventilation for grain storage.



    Pictures:

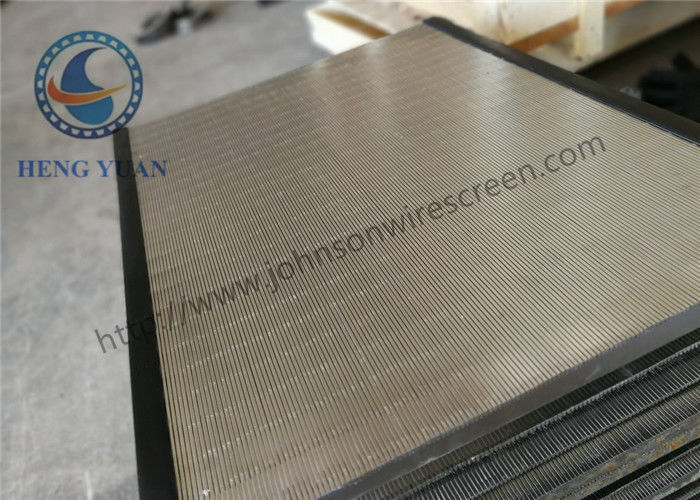

    Johnson Wedge Wire Screen Panels 486 Width 36mm Thickness Customezied
