SS 205 / 304 / 316 / 316L Johnson Screen Pipe , Johnson Wire Wrap Screen Tube

Basic Information
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000,SGS,CIQ,CE
Model Number: HY004
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,110 pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detail Information
Material: Stainless Steel Grade: 205, 304 , 304L, 316L
Slot Size: 0.5 Mm, 0.63mm, 0.75mm, 1.0mm Diameter: 3" 4" 6" 8" 10" 12" 14"
Length: 2900mm / 5800mm , Up To 6 Meter End Connection: Welded Rings
Package: Woden Box,Container Wire Shape: V Shape
Filter Type: From Outside To Inside
High Light:

stainless steel wedge wire screen

,

johnson stainless steel screen


Product Description

Stainless Steel 205 / 304 / 316 / 316L Johnson Wire Wrap Screen Tube



Product Description:



Stainless Steel 205 / 304 / 316 / 316L Johnson Wire Wrap Screen Tube is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.



Specification:



Material Stainless steel
Grade 205, 304,304L, 316L
O.D 89mm 117mm 219mm 273mm 325mm
Size 3-1/2"  4-1/2" 8-5/8 " 10-3/4" 12"
Slot size 0.5 mm,0.63mm, 0.75mm, 1.0mm
Length 2.9m / 5.8 m, 100-6000mm
End connection Welded rings
Wire size 63# 93# 118 #
Support rod 140 #
Wire shape V shape



Regular Specifications:



SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59



Characteristic:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance



Application:



Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells



Pictures:

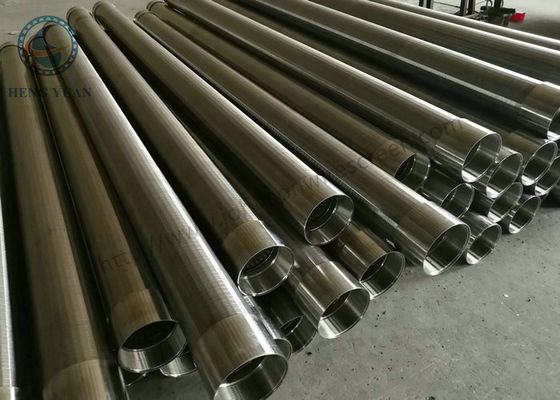

SS 205 / 304 / 316 / 316L Johnson Screen Pipe , Johnson Wire Wrap Screen Tube 0
