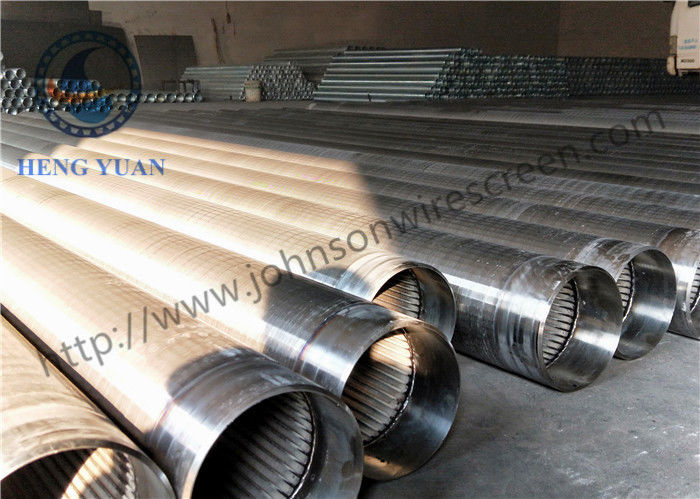

Continuous Slot Johnson Wedge Wire SS 316 1.0mm Screened Pipe
Johnson Wedge Wire Screen is welded by V wire and support rod,creating slots which enlarge inwardly, meeting the most demanding standards for ruggedness,durability, consistency and slot openings. The v-shaped opening allows only two contact points with the particles, thus preventing any risk of clogging.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.
|Solt size||1.0 mm|
|End connection||Welded rings|
|Wire size||118 #|
|Support rod||140 #|
|Wire shape||V shape|
Johnson Wedge Wire Screen, Vee-Wire construction of rod based screens is known around the world as the industry's best well screen. Providing more open area, these non-plugging well screens have a tight slot tolerance, effective sand control and a lower entrance velocity.
Width(mm): 1.0, 1.5, 2.0, 2.3, 3.0, 3.2,
Height(mm): 1.5, 2.0, 2.5, 3.5, 4.6, 6.0
Width(mm): 2.0, 2.2, 2.3, 2.5, 3.2
Height(mm): 2.5, 3.0, 3.5, 4.6, 6.0
Round rods : diameter from 2.50 mm to 6.0 mm
Note: other wires and rods available upon request
Slot size(mm): 0.10, 0.25, 0.70, 1.0, 2.0, 5.0 ... 45mm also achieved upon request.
Diameter(mm):48, 63, 89, 117, 168, 219, 273, 325, 500, 800, 1000
Length: up to 6 meters.
End connection: Plain beveled ends for welding or threaded male &female coupling(spiral).
Other sizes available on request. Deep well construction specifications available on question.
Water well screens are designed for depths of 100 m, 200 m, 350 m & 600 m.
Johnson Wire Wrap Screen is a kind of filtered water tubing with the perforation. it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, water supply, the environmental protection, Polluted water and sundries separating, the petroleum industry, crude oil refining, mineral processing, foodstuff processing, and so on the organic solution recycling filters.
