Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment

Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment

  • Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment
  • Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment
Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment
Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY0010
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: according to the specifications
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Contact Now
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 1.0 Mm Diameter: 520 Mm
Length: 600 Mm Components: None, As The Customer's Requirement
Package: Woden Box,Container
High Light:

wedge wire inner rotary screen drum

,

cylinder rotary screen drum

,

sewage treatment rotary screen drum

Wedge Wire Inner Filter Rotary Screen Drum Filter Cylinder


Product Description:

Stainless steel Reverse Wedge Wire Wound Screen Drum Heat FITO Filter Cylinder Basket is made by Johnson screen mesh through reverse welding.

From inside to outside (FITO):

Whereas,the liquid flow from inside to outside.It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.

The key point of producing the first-class seiving mesh is the welding process. And based on that, in 2001, we created our automatic welding equipment, which was testified by the practice, the seiving mesh processed have the highest screening efficiency, the strongest seismic tensile ability, need the least maintenance and get the longest life span.

Filter precision conversion

Microns 10 25 30 40 50 80 100 120 150 200 400 800 1500 3000
Mesh 1500 650 550 400 300 200 150 120 100 80 40 20 10 5
MM 0.01 0.025 0.03 0.04 0.05 0.08 0.1 0.12 0.15 0.2 0.4 0.8 1.5

3.0





Scope of application:


Widely used in drinking water treatment, construction circulating water treatment, industrial circulating water treatment, sewage treatment, mining water treatment, golf course water treatment, construction, steel, petroleum, chemical, electronics, power generation, textile, paper, food, sugar , pharmaceuticals, plastics, automotive industries and other fields.





Regular Specifications:


SIZES OF THE WIRE AND ROD

Wire













Width(mm)

1.0

1.2

1.5

2.3

3.0



Height(mm)

2.0

2.2

2.5

3.5

4.6



Rod











Round wire

Width(mm)

2.3

2.3

3.0

3.7

3.3

Diameter

Height(mm)

2.7

3.5

4.6

5.6

6.3

0.25-0.5m


Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment 0




Benefits:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel have the high corrosion resistance

Easy to backwash, clean without dead Angle.

Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.

Built-in scraper, brush, suction first class cleaning device.

The special



Industry:



● Trommel screens with internal feed

● Systems with an internal rotor or screw

● Dewatering systems

● Baskets

● Automatic filters

Fecal treatment



Pictures:

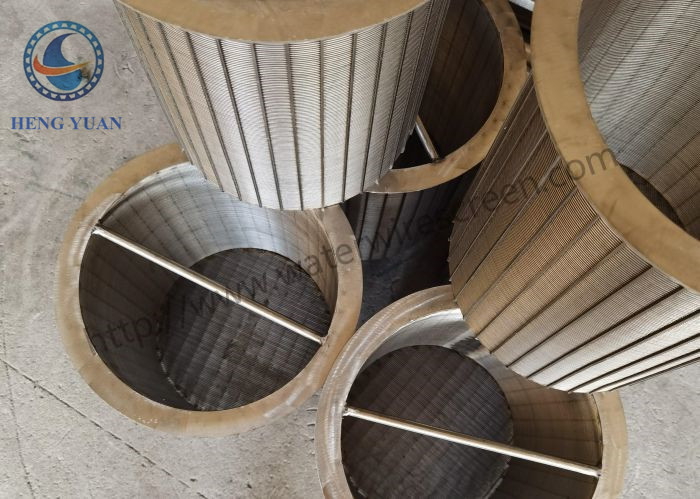

Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment 1

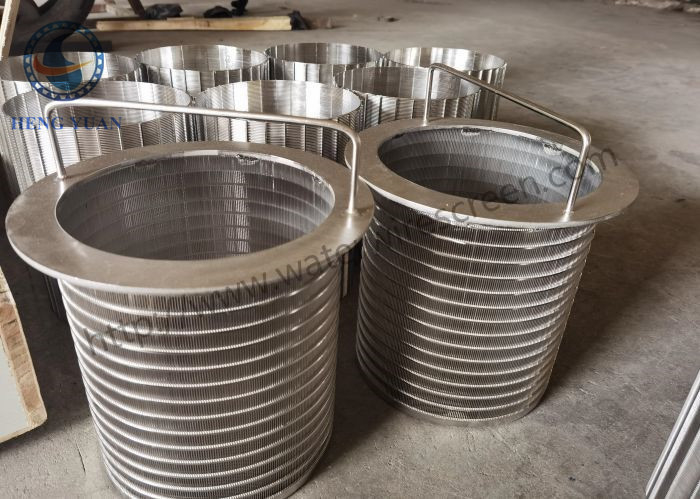

 Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment 2Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment 3Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment 4
Package:

Wedge Wire Inner Filter Rotary Screen Drum Cylinder For Sewage Treatment 5
