406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells

China Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. certification
Waleed came to visit our factory on 8 Oct,2012 He said: "You are really professional ", then sign order at once, and gave us us dollar as the advance.

—— Waleed

I'm Online Chat Now

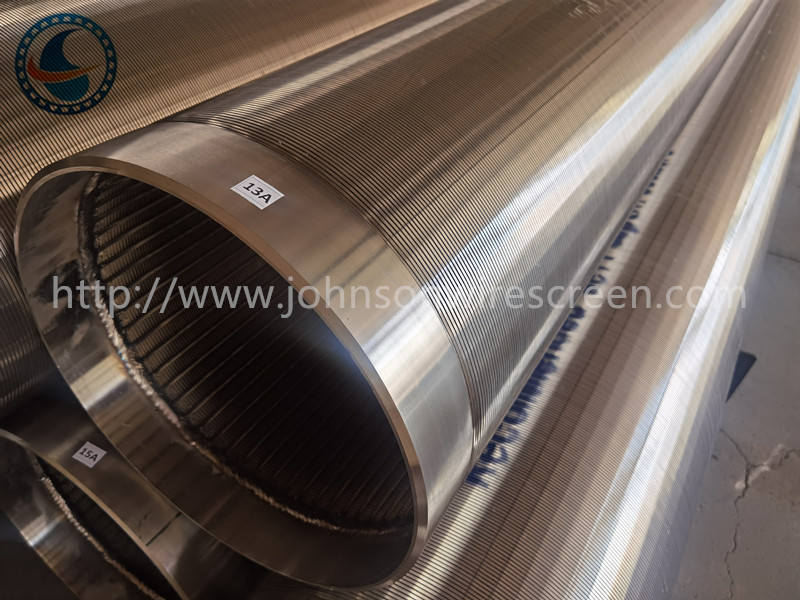

406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells

406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells
406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells 406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells 406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells 406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells

Large Image :  406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells

Product Details:
Place of Origin: Hengshui,Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: 16"
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Plastic film
Delivery Time: 10 work days
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Name: Water Well Screen Material: Stainless Steel
Grade: SS304L Diameter: 16" (406mm)
Length: 6000mm Slot Size: 1.0 Mm
Wrap Wire: 3*5.5mm Support Rod: ø4.2mm
NO. Of Rod: 64NOS End Connection: Welded Rings
Weight: 38KG/meter Package: Plastic Film
High Light:

406mm wedge screen filter

,

1.0mm slot wedge screen filter

,

deep wells vee wire filter screen



Stainless Steel 1.0mm Slot Water Well Screen For 300 Meters Deep Wells





Water Well Screen Information:





Water well screen ,as known as Johnson screen, water wire screen, wire wrap screen, wedge wire screen, wound screen.

It can be used in Water wells for sand control.





Due to its high open area, Hengyuan water well screens can be developed more effectively as more of the development energy can
reach the formation. This ensures that more fine material is removed quickly as all the energy can be directed at the surrounding formation.

The water well screen is recommended in the following situations;

1. Formation comprised of small or fine particles
2. Water wells where gravel packs will be installed
3. Thin aquifers, where maximum open area is required
4. Small diameter wells





Water Well Screen Regular Specifications:



Name:Water Well Screen, Johnson screen,Water wire screen,Wire warp screen,

Wedge wire screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,

Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.

Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:2*3.5mm,2.2*3.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.0*3.5(Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.0*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.0*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0*6.0(Width*height) ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.2*3.5(Width*height) ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*4.6(Width*height) ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.0*6.0(Width*height) ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2*3.5(Width*height) ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*4.6(Width*height) ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0(Width*height) ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0(Width*height) ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0*5.5(Width*height) ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0*5.5(Width*height) ø4.0MM×64




Special specification can be made according to your need !





Water Well Screen Advantages:




NON-CLOGGING SLOT:

Water well screen is designed to provide unique structural strength. The “V” shaped openings allow only two contact points, thus preventing clogging and making cleaning easier.


REDUCTIONS IN OPERATING COSTS:

By using a Johnson screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized, therefore;
Drawdowns are reduced.
Less energy is needed for pumping.
Flow rates are increased.
Less sand in the water reduces wear on the pumps.

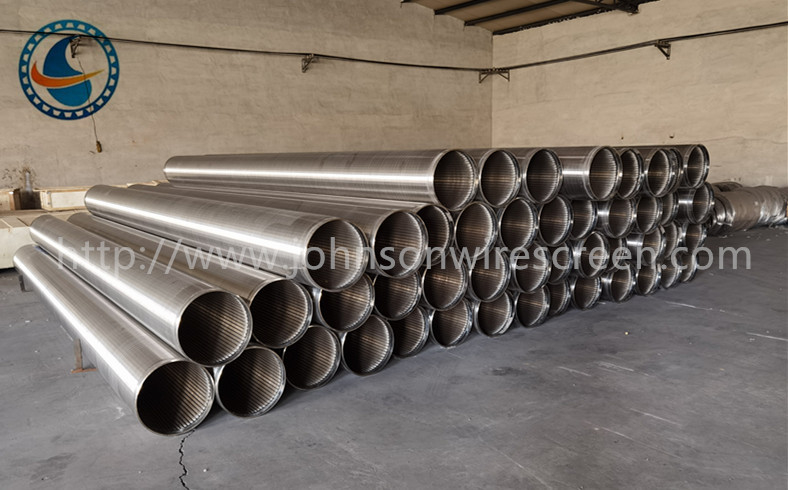

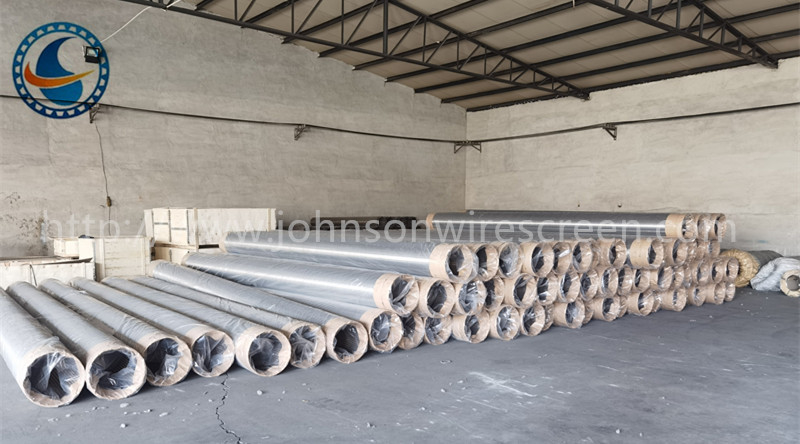

406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells 0406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells 1

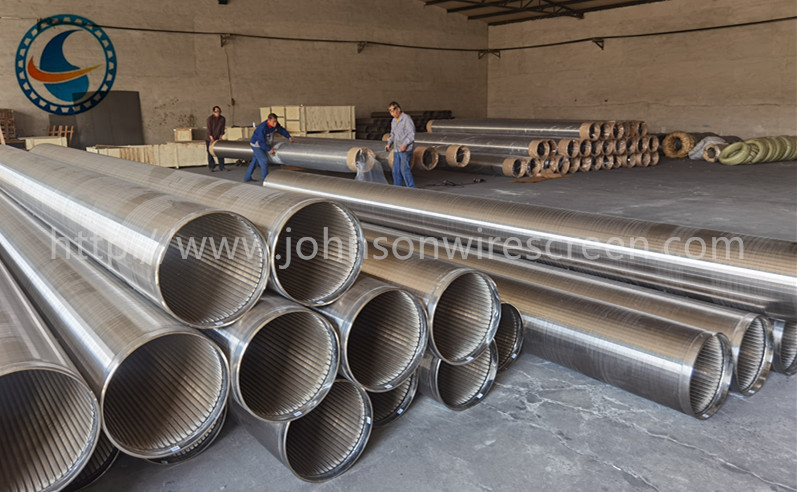

406mm Stainless Steel 1.0mm Slot Wedge Screen Filter For 300 Meters Deep Wells 2
