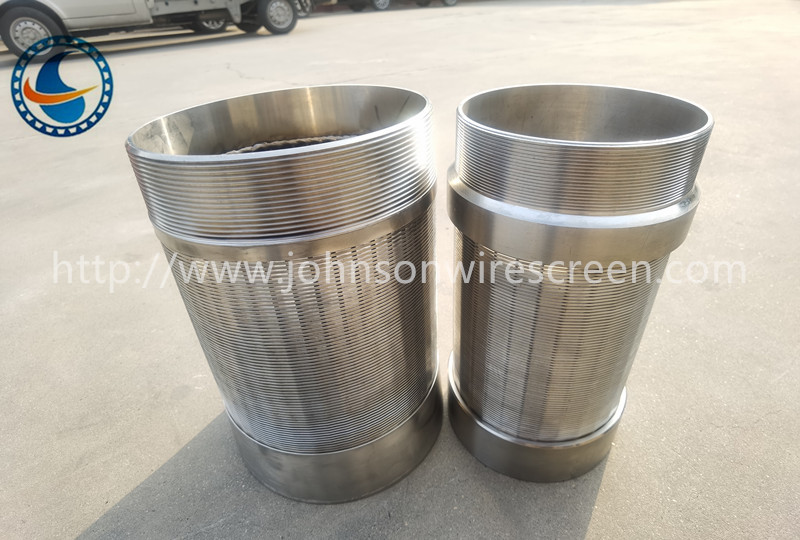

8-5/8" Johnson Wire Screen Tube With Male / Female Threaded

8-5/8" Johnson Wire Screen Tube With Male / Female Threaded
8-5/8" Johnson Wire Screen Tube With Male / Female Threaded 8-5/8" Johnson Wire Screen Tube With Male / Female Threaded 8-5/8" Johnson Wire Screen Tube With Male / Female Threaded 8-5/8" Johnson Wire Screen Tube With Male / Female Threaded

Large Image :  8-5/8" Johnson Wire Screen Tube With Male / Female Threaded

Product Details:
Place of Origin: Hengshui,Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: 8-5/8"
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Plastic film
Delivery Time: 10 work days
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Name: Johnson Wire Screen Tubo Material: Stainless Steel
Diameter: 219mm Length: 500mm
Slot Size: 0.76 Mm Wrap Wire: 2.3×3.5mm
Support Rod: ø3.8mm NO. Of Rod: 48NOS
End Connection: Male/female Threaded Weight: 5KG
Package: Wooden Box Use: In Water Wells For Sand Control
High Light:

8-5/8" johnson wire screen

,

female threaded johnson wire screen

,

threaded johnson stainless steel well screen



8-5/8" Stainless Steel Johnson Well Screen Tubo





Johnson Well Screen Tubo Information:





Hengyuan Johnson Well Screen introduction a well screen is a filtering device that serves as the intake portion of wells constructed in unconsolidated or semi-consolidated aquifers. The well screen permits water to enter the well from the saturated aquifer, prevents sediment from entering the well, and serves structurally to support the aquifer material.





Johnson Well Screen Regular Specifications:





Name:Johnson Well screen,Continuous Slot Water Well Screen, Water wire screen,

Wedge wire screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,

Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.

Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:2*3.5mm,2.2*3.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.0*3.5(Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.0*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.0*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0*6.0(Width*height) ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.2*3.5(Width*height) ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*4.6(Width*height) ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.0*6.0(Width*height) ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2*3.5(Width*height) ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*4.6(Width*height) ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0(Width*height) ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0(Width*height) ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0*5.5(Width*height) ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0*5.5(Width*height) ø4.0MM×64




Special specification can be made according to your need !





Technical Support and Design Assistance





  • Sand analysis of formation materials
  • Screen size recommendations
  • Screen installation suggestions
  • Well construction consultation





Our technical staff includes expert design engineers, welders, technical support personnel, and sales engineers who are familiar with all aspects of manufacturing and deployment of downhole screens for different applications.
