M24 Stainless Steel 304 Wedge Wire Screen Nozzle For Water Treatment

Basic Information
Place of Origin: Hebei,China
Brand Name: HENG YUAN
Certification: ISO9000
Model Number: HY006
Minimum Order Quantity: 1 pcs
Price: Negotiate
Packaging Details: Woden box, Paper box
Delivery Time: 3 - 5 days, according to the quantity
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pcs / month
Detail Information
Material: Stainless Steel Slot Size: 0.25 Mm
Grade: 304 Diameter: 53 Mm
Length: 110mm Thread Size: M24
High Light:

m24 wedge wire screen nozzle

,

water treatment wedge wire screen nozzle

,

wedge filter nozzles for water treatment


Product Description



Stainless steel 304 Wedge Wire Screen Nozzle





Wedge Wire Screen Nozzles are used in liquid/solid or gas/solid separation (sand, catalyst, resins, zeolite etc).

The design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow.

Hengyuan nozzles are an excellent technical and economical solution in bringing together a fully welded, strong and highly corrosion resistant structure and with a non-plugging surface.





Feature of wedge wire screen nozzles:





1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.


2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness.

  Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.


3.After work for a period of time, the filter can be back flush.It can use for many times.
  Filtering direction from outside to inside (FOTI)




Wedge Wire Screen Nozzle Regular Specifications:



Type Slot size Specifications Flow filter area
0.2mm slot ( reference)
D H L M
HY45-11-A 0.2-0.5 45 30 150 M20 330
HY45-11-B 0.2-0.5 45 40 160 M24 400
HY53-12-A 0.2-0.5 53 40 170 M24 510
HY53-12-B 0.2-0.5 53 50 180 M32 640
HY57-13-A 0.2-0.5 58 40 190 M32 630
HY57-13-B 0.2-0.5 58 50 200 M32 780

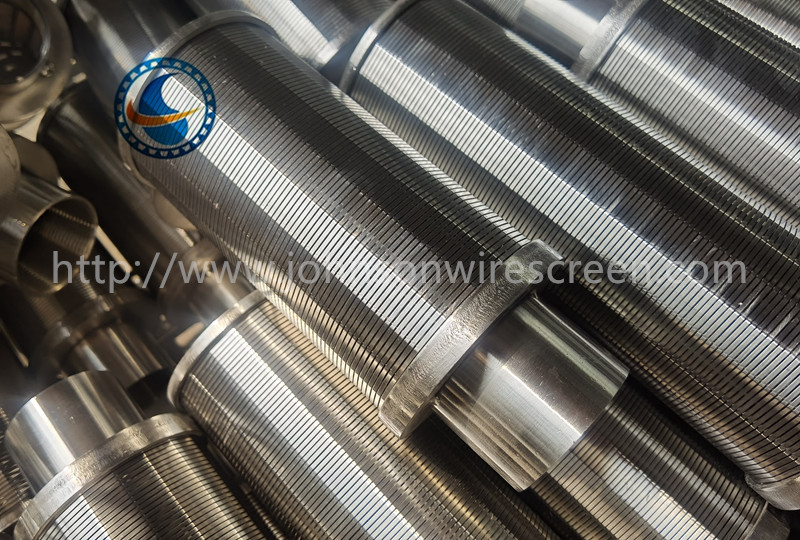

M24 Stainless Steel 304 Wedge Wire Screen Nozzle For Water Treatment 0

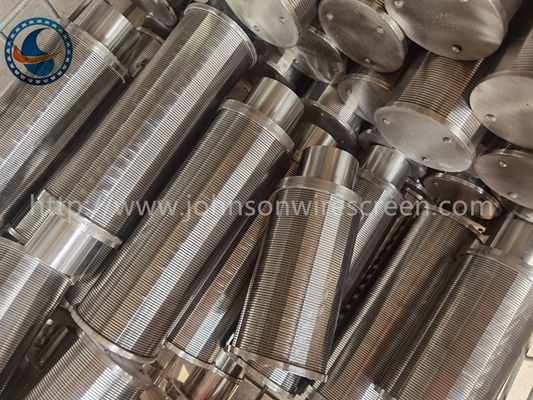

M24 Stainless Steel 304 Wedge Wire Screen Nozzle For Water Treatment 1
