| Place of Origin: | Hebei,China |
|---|---|
| Brand Name: | Heng Yuan |
| Certification: | ISO9000 |
| Model Number: | HY220629 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Packaging Details: | Moister-Barrier with each piece,64pcs per 20 ft container |
| Delivery Time: | 7-10 work days,according to the quantity |
| Payment Terms: | L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/Month |
| Name: | Slotted Wedge Wire Screen Panels | Material: | Stainless Steel 316L, 304, 321, 2205, 2507 |
|---|---|---|---|
| Slot Size: | 0.025mm-100MM | Video Outgoing-inspection:: | Provide |
| FIlter Rating: | 75% | Hole Shape: | Slot |
| Business Type: | Manufacturer | Technique: | Wedge Wire,wire Wound |
| Oem: | YES | Feature: | Easy Leakage,non-clogging,wear Resistance,corrosion Resistance |
| High Light: | slotted wedge wire screen panels,petroleum industry wedge wire screen panels,2507 stainless steel wedge wire panel |
||

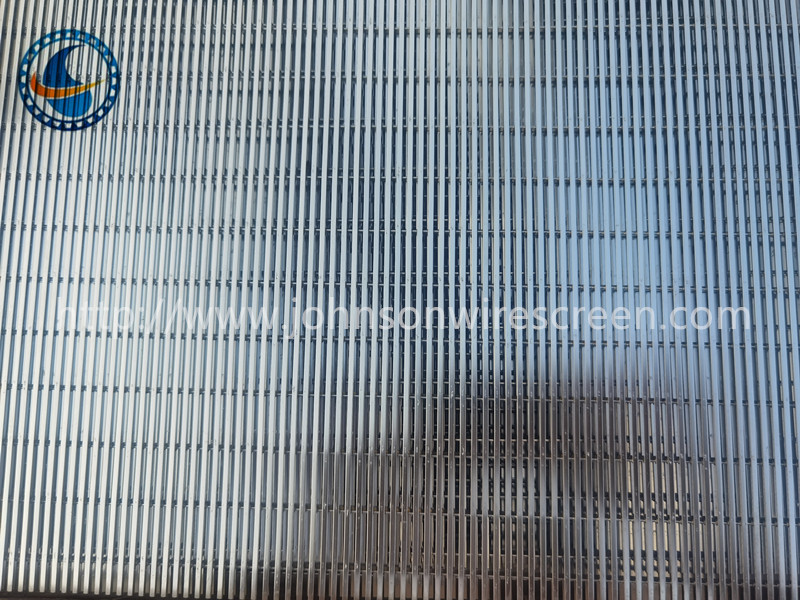

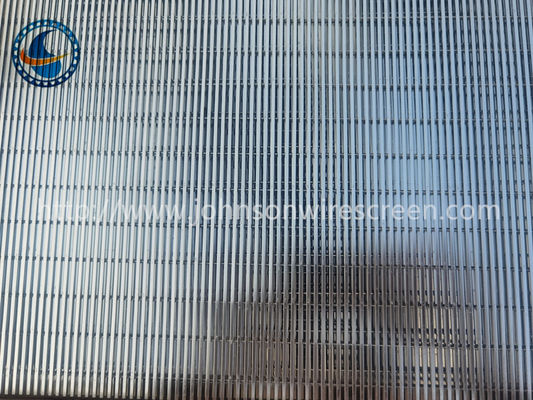

Slotted wedge wire welded panel consists of V shape profile wire and the longitudinal support rods.
Each intersecting point the V shape section planel can avoid blockage ,and make sure of the unimpeded water.
The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property.
Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
Meanwhile, the slot can change according to the real condition of the earth.
If you are interested in our product ,please contact us, and for more information.
1) Widely used in vairous kinds of medium filtering.
2) As the fitting using in the water-treating equipment,the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment.
3) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol.
4) The organic solution recycling filter.
Material: stainless steel 302, 304, 316, 304L, 316L etc.
Slot: 0.025mm - 100mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 4430mm
| SIZES OF THE WIRE AND ROD | ||||||
| WIRE SHAPE | V | V | V | V | V | V |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 4.5 | 4.6 |
| ROD SHAPE | V | V | V | V | V | O |
| Width(mm) | 2.0 | 2.2 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.5 | 4.6 | 5.0 | 6.0 |
3.0~3.8 |
