| Place of Origin: | Hengshui City,Hebe Provincei,China |
|---|---|
| Brand Name: | HengYuan |
| Certification: | ISO,CO,FORM E,CIQ, etc |
| Model Number: | HY100401 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiated price |
| Packaging Details: | wooden box |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1500 pcs /month |

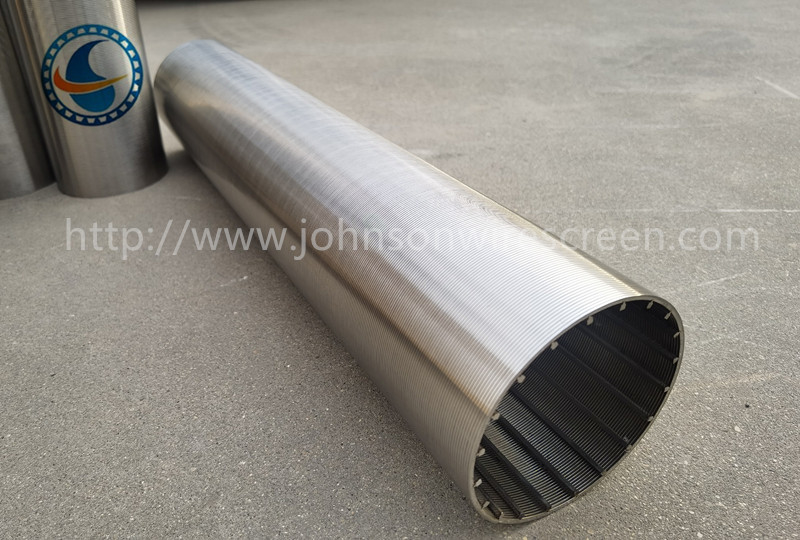

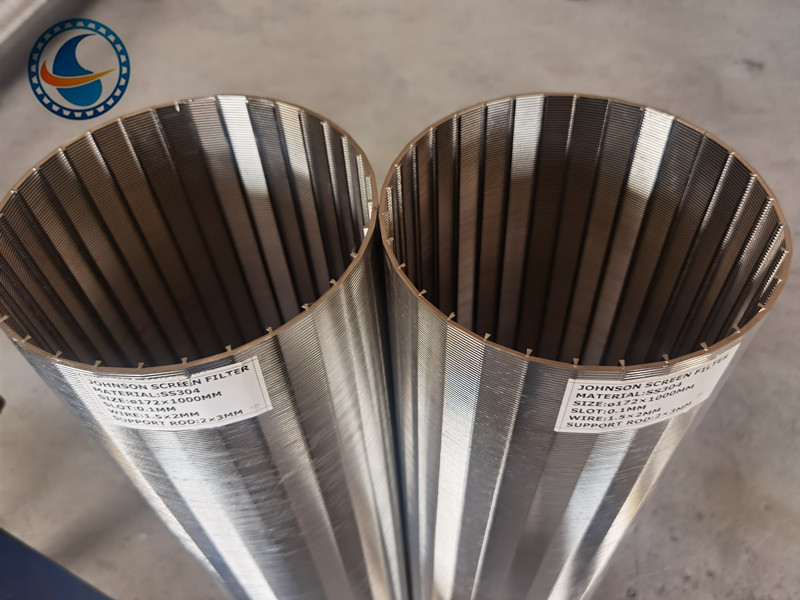

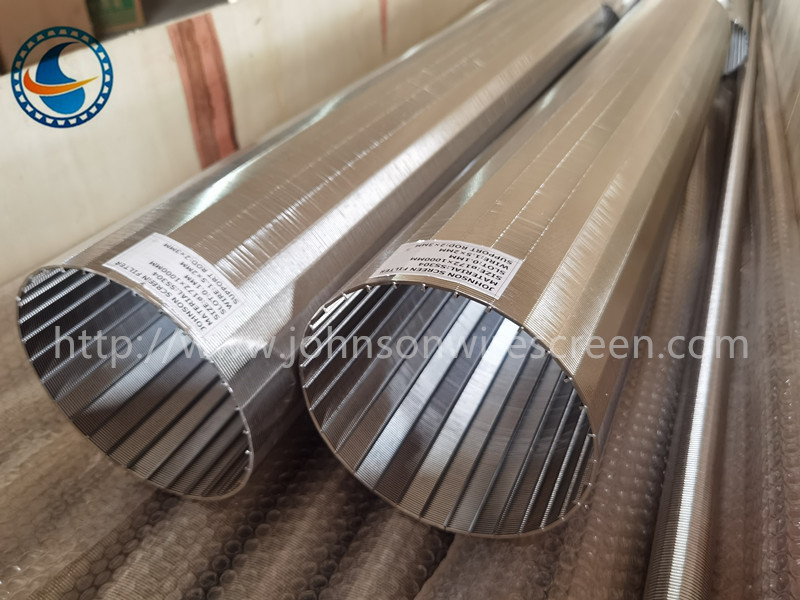

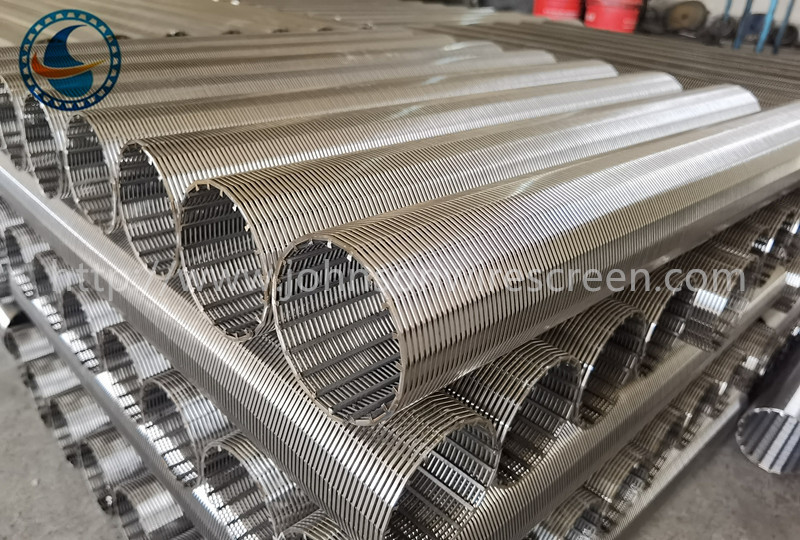

| Features: | Non-clogging | Name: | Surface Profile Wire Wedge Wire Screen Filter |
|---|---|---|---|
| Material: | Hastelloy C276 | Diameter: | 100mm |
| Length: | 246mm | Slot: | 0.017mm |
| Wire: | 1*2mm Vee Wire | Support Rod: | 2*3mm Vee Wire |
| Ends: | Nothing (open Ends) | Technique: | Point Welding |
| Application: | Filteration | Package: | Wooden Box |
| Business Type: | Manufacturer | Filter Type: | From Outside To Inside |
| High Light: | hastelloy c276 vee wire filter screen,od100mm vee wire filter screen,hastelloy wedge wire filter element |
||
The surface profile of a wedge wire filter comprises of a wire also known as V-shaped wire.
Remember, there are four types of surface profile available for a wedge wire filter,that is, flat wire, triangle wire, round wire, and trapezoid wire.
The primary material of surface profile in most wedge wire filters is steel due to its characteristics when it comes to filtration of fluids.
Depending on the directional flow of your fluid, the surface profile can either be horizontal or vertical.
The width size available for the surface profile ranges from 1.0mm to 4.0mm while the height varies from 2.0mm to 6.5mm.
Material : stainless steel wire.Such as: SS304, SS201, SS316L etc; Hastelloy C276; 904L; Duplex 2205,2507
Diameter : 26-1300 mm ,can make as customers request.
Slot: 0.02-100mm
Length :10-4000mm

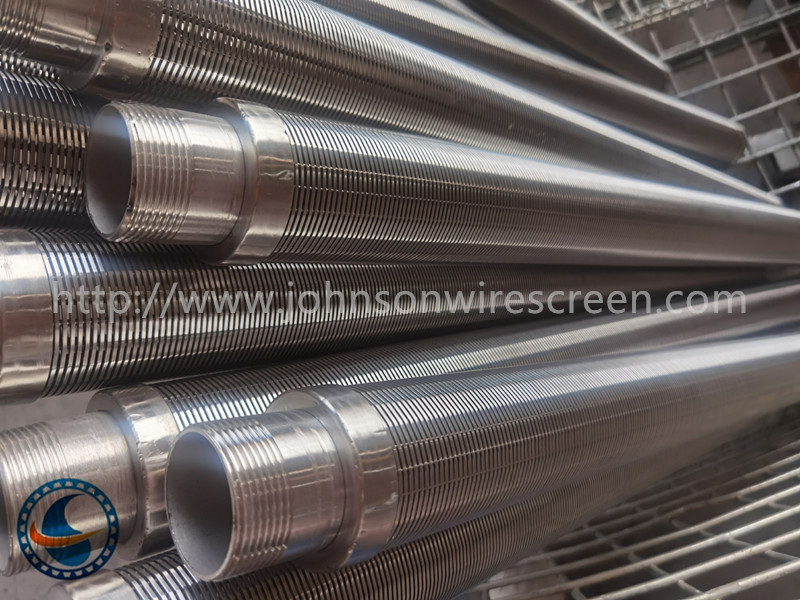

End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.
|
Material |
Stainless steel 304, 316L,Hastelloy C276; 904L; Duplex 2205,2507 etc. |
|
Diameter |
25mm-1300mm |
|
Shape |
Cylindrical |
|
Slot |
0.02mm-10mm |
|
Thickness |
4mm-12mm |
|
Feature |
Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells |
|
Application |
--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio |
1. It has high mechanical strength, can bear large pressure drops.
2. The wedge-type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, used in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
