Stainless Steel 316l Wedge Wire Sheets Flat Welded For Showers

Basic Information
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY100704
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detail Information
Material: Stainless Steel 316L Key Word: Flat Welded Wedge Wire Screen
Slot Size: 3.0MM Video Inspection:: Provide
Type: Filter Elements FIlter Rating: 50%
Surface: Polished Screen Size: 3000*63mm
Usage: Liquid Filter Hole Shape: Slot
Wire Size: 3*4.6mm Support Rod: 3*4.6mm
Distance Of Rods: 25mm Frame: 3*20mm
High Light:

stainless steel 316l wedge wire sheets


flat welded wedge wire sheets


showers welded wedge wire screen

Product Description



Stainless Steel 316L Flat Weld Wedge Wire Screen For Showers



Flat Weld Wedge Wire Screen Description:



We were pioneers in the development of flat welded wedge wire screens. In recent years a demand has grown for wedge wire assembled by welding, in contrast to the looped method. We have met this demand with the very latest in TIG welding technology.

Using specially developed machinery and advanced automatic welding our welded type screens offer a wide range of apertures with clear and unobstructed open area.

Reinforcements can be added as required providing the strongest and most cost effective welded wedge wire screen on the market. Usual materials are stainless steels in AISI grades 430, 304 and 316. Other metals are available – please call.



Flat Weld Wedge Wire Screen Specification:



  • Material: SS 304 or SS 316L is the most popular.

  • Load class: pedestrian, cars/bikes, light commercial, heavy commercial.

  • Parts: grate panels and through/channel.

  • Wedge wire: 2 × 3 mm, 3 × 4.6 mm, 3× 6 mm, 5 × 5 mm.

  • Wedge wire spacing: 2.5 / 3.0 / 3.5 mm as required.

  • Supporting wire: 3 × 6.5 mm.

  • Support wire spacing: 20/25/30 mm or as request.

  • Frame size: 3 × 15 mm, 3 × 18 mm, 3 × 20 mm, 5 × 18 mm, 5 × 20 mm or as your request.

  • Width: 50/65/70/89/95/100/150/200/350 mm or as request.

  • Length: 100/200/500/1000 mm, etc.

  • Surface treatment : Brushed / hairline finish; Polished / mirror finish




Stainless steel

Key word

Flat Weld Wedge Wire Screen


Up to 3000*1000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Other Shapes

Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.

End Finishing

With the frame, without any frame, according to request.


Customized According To Requirement



Flat Weld Wedge Wire Screen Features:



Unique self-cleaning design

Customizable lengths width and depth.

Aesthetically pleasing design

Different loads as required.

304 or 316 grade stainless steel for durable and long lifespan.

Resist the accumulation of soap scum, deposit, mineralization, dirt and so forth.

Ease of installation and easy maintenance.

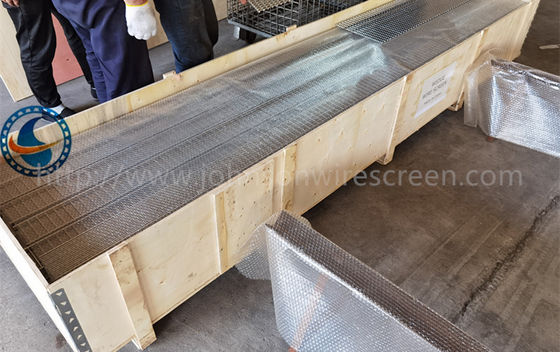

Stainless Steel 316l Wedge Wire Sheets Flat Welded For Showers 0

Stainless Steel 316l Wedge Wire Sheets Flat Welded For Showers 1Stainless Steel 316l Wedge Wire Sheets Flat Welded For Showers 2

Stainless Steel 316l Wedge Wire Sheets Flat Welded For Showers 3Stainless Steel 316l Wedge Wire Sheets Flat Welded For Showers 4
