Ss316l 3.0mm Slot Welded Wedge Wire Screen Flat For Swimming Pool

Basic Information
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY100703
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detail Information
Material: Stainless Steel 316L 304 321 2205 2507 Name: Flat Welded Wedge Wire Screen
Slot Size: 3.0MM Wire Size: 3*4.6mm
Support Rod: 3*4.6mm Distance Of Rods: 25mm
Frame: 3*20mm Video Inspection:: Provide
Type: Filter Elements FIlter Rating: 50%
Surface: Polished Screen Size: 3000*124mm
Usage: Liquid Filter Hole Shape: Slot
High Light:

ss316l welded wedge wire screen


3.0mm slot welded wedge wire screen


swimming pool welded wedge wire

Product Description


Stainless Steel Flat Weld Wedge Wire Screen Johnson Screen Panel



Flat Welded Wedge Wire Screens Description:



Stainless Steel Flat Welded Wedge Wire Screen also known as side hill screens, parabolic screens, run down screens, gravity screens and DSC Screen can be custom designed to separate solids from liquids in various appli-cations including food processing, pulp and paper, waste water clean up, surface water intakes, corn wet milling, coal preparation, and gold recovery.


Stainless Steel Flat Welded Wedge Wire Screen is made of V-shape profile wire and longitudinal support rods,make the adjacent wire forming has a fixed value slot tubular body. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property.


The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction

filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements.



Flat Welded Wedge Wire Screen Specification:



  • Material: SS 304 or SS 316L is the most popular.
  • Load class: pedestrian, cars/bikes, light commercial, heavy commercial.
  • Parts: grate panels and through/channel.
  • Wedge wire: 2 × 3 mm, 3 × 4.6 mm, 3× 6 mm, 5 × 5 mm.
  • Wedge wire spacing: 2.5 / 3.0 / 3.5 mm as required.
  • Supporting wire: 3 × 6.5 mm.
  • Support wire spacing: 20/25/30 mm or as request.
  • Frame size: 3 × 15 mm, 3 × 18 mm, 3 × 20 mm, 5 × 18 mm, 5 × 20 mm or as your request.
  • Width: 50/65/70/89/95/100/150/200/350 mm or as request.
  • Length: 100/200/500/1000 mm, etc.
  • Surface treatment : Brushed / hairline finish; Polished / mirror finish



Material Stainless steel
Key word Flat Welded Wedge Wire Screen
Dimension Up to 3000*1000mm
Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)
Other Shapes Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.
End Finishing With the frame, without any frame, according to request.
Note Customized According To Requirement



Flat Welded Wedge Wire Screen Applications:



The stainless steel Flat Welded Wedge Wire Screens  are widely used in the drainage system in following places:

  • Swimming pools, showers, driveways in residences.
  • Healthcare facilities including hospitals, retirement living and rest homes.
  • Fountain, poolsides, patios and other drainage system in public and commercial places.
  • Industrial drainage system

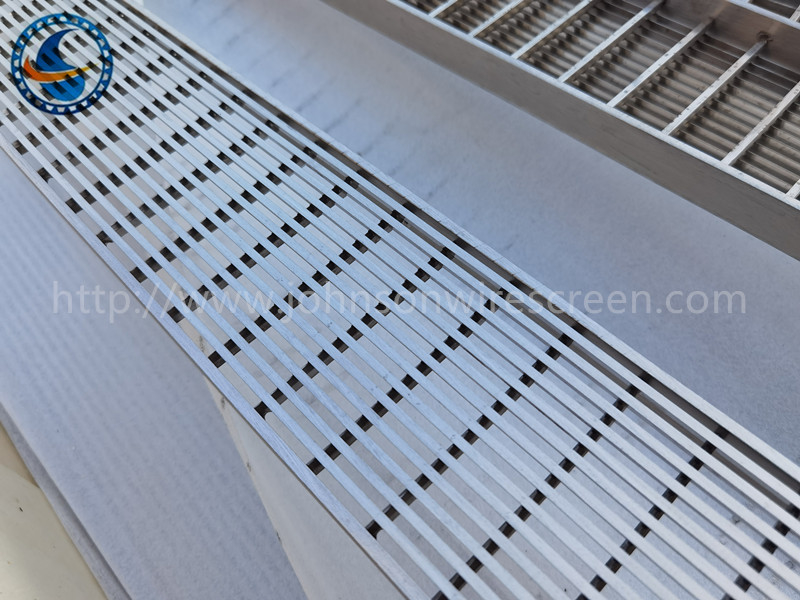

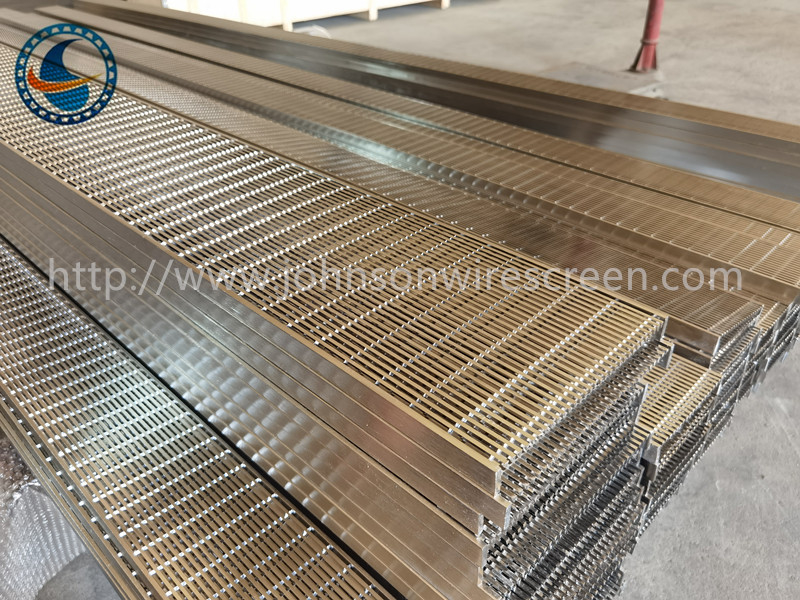

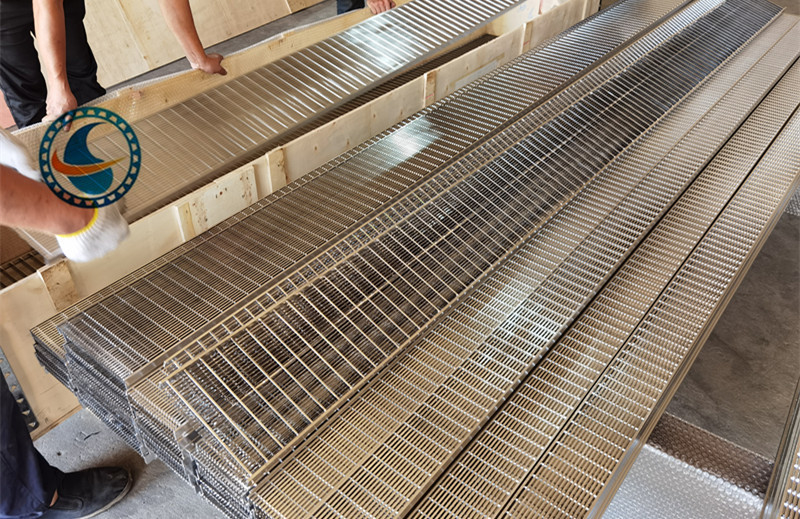

Ss316l 3.0mm Slot Welded Wedge Wire Screen Flat For Swimming Pool 0Ss316l 3.0mm Slot Welded Wedge Wire Screen Flat For Swimming Pool 1Ss316l 3.0mm Slot Welded Wedge Wire Screen Flat For Swimming Pool 2

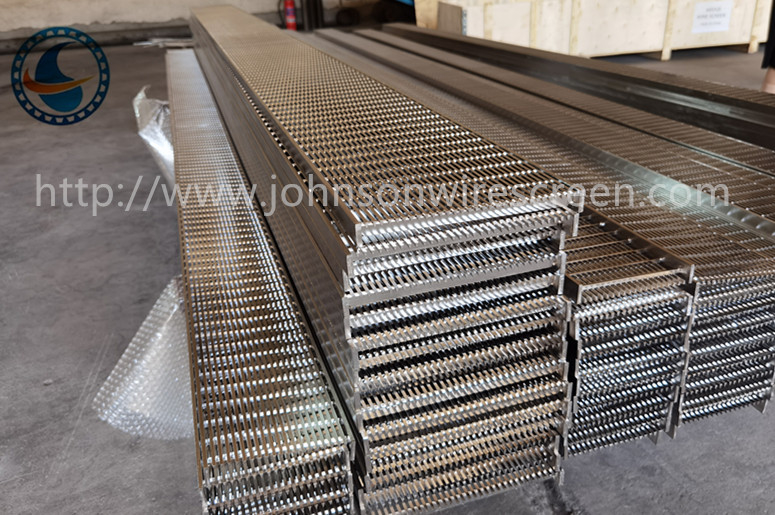

Ss316l 3.0mm Slot Welded Wedge Wire Screen Flat For Swimming Pool 3Ss316l 3.0mm Slot Welded Wedge Wire Screen Flat For Swimming Pool 4
