Non Magnetic Johnson Water Well Screen OD 273mm

Basic Information
Place of Origin: Hengshui,Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: 10-3/4"
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Plastic film
Delivery Time: 10 work days
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detail Information
Name: Johnson Water Well Screen Material: Non-Magnetic Stainless Steel
Diameter: 273mm Length: 5850mm
Slot Size: 0.25mm Wrap Wire: 2.2×4.5mm
Support Rod: ø5.0mm NO. Of Rod: 55NOS
End Connection: Bevel Welded Rings Weight: 170KG/piece
Package: Plastic Film Use: In Water Wells For Sand Control
High Light:

Water Well Screen OD 273mm

,

Non Magnetic Water Well Screen

,

johnson screen filter OD 273mm


Product Description



Non-magnetic SS Johnson Water Well Screen





Johnson Water Well Screen is also known as Johnson screens, wedge wire screens, wire wrapped well screens, rod based well screens, continuous slot water well screens, vee shaped wire well screens, screen pipe, stainless steel strainer.



Quality is critical. There’s no question about it. That’s why Johnson Water Well Screen has developed the most modern facility in the industry. We designed it to optimize new manufacturing processes that will produce high quality and top performing products.



  • Pipe base screens (Used in deep wells)
  • Rod-base screens (Used in shallow wells)
  •

While quality is critical, on-time delivery is a must. Our modern procedures streamline the manufacturing process that drive reduced lead times from order to shipment.




Johnson Water Well Screen Regular Specifications:





Name:Johnson Water Well Screen,Continuous Slot Water Well Screen,Oil Well Sand Screen,Water Well Screen,Water wire screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.

Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:2*3.5mm,2.2*3.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.0*3.5(Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.0*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.0*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0*6.0(Width*height) ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.2*3.5(Width*height) ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*4.6(Width*height) ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.0*6.0(Width*height) ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2*3.5(Width*height) ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*4.6(Width*height) ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0(Width*height) ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0(Width*height) ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0*5.5(Width*height) ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0*5.5(Width*height) ø4.0MM×64




Special specification can be made according to your need !





We provide Johnson Water Well Screen solutions to almost every industry, including:



Water Well,

Food &Beverage Screens,

Pharmaceutical & Biological industries,

Refining & Petrochemical,

Water Treatment & Liquid / Solids Separation,

Mineral & Aggregate Processing,

Pulp & Paper Screens.

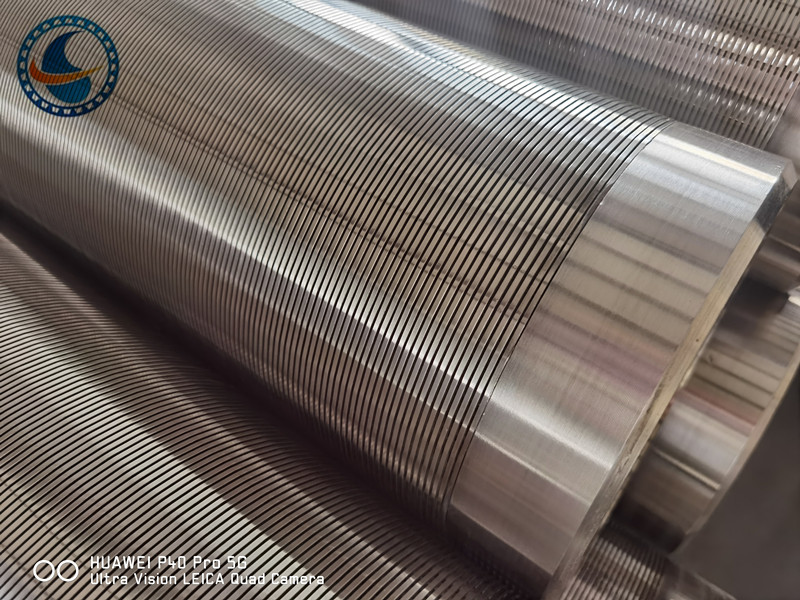

Non Magnetic Johnson Water Well Screen OD 273mm 0Non Magnetic Johnson Water Well Screen OD 273mm 1
