Name: Johnson Vee Wire Wrapped Screen Stainless Steel 114-500mm
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 12-3/4" 10-3/4" 8-5/8" 6-5/8"
Price: 100.00 USD
Availability: InStock

Home > PRODUCTS > Johnson Vee Wire Screen >

Johnson Vee Wire Wrapped Screen Stainless Steel 114-500mm

Johnson Vee Wire wrapped screen

stainless steel well screen

114-500mm Johnson Vee Screen

Place of Origin:

Hengshui,Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

12-3/4" 10-3/4" 8-5/8" 6-5/8"

Request A Quote

Product Details

Name:

Wire Wrapped Screen

Material:

Stainless Steel And Low Carbon Steel

Diameter:

114-500mm

Length:

Upto 6000mm

Slot Size:

0.05-100mm

Wrap Wire:

1.5*2mm, 2*3mm, 2*3.5mm, 2.2*3.5mm,3*5mm

Support Rod:

ø4.0mm And Others

End Connection:

Male/female Threaded

Package:

Plastic Film

Use:

In Water Wells For Sand Control

6-5/8" SS304L Johnson Vee Wire Screen Pipe for Sand Control

Get Best Price

Video

Low Carbon Galvanized Johnson Vee Wire Screen 8-5/8" 100 Bar Collapse Strength

Get Best Price

Video

Od 16" High Strength Johnson Vee Wire Screen For Water Well

Get Best Price

Video

High Strength 6 Meter Johnson Vee Wire Screen 205 / 304 / 304L / 316L Grade

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

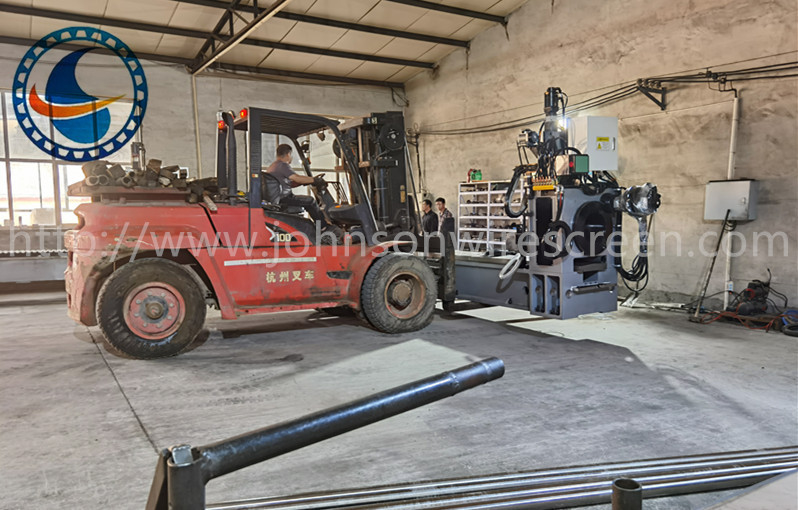

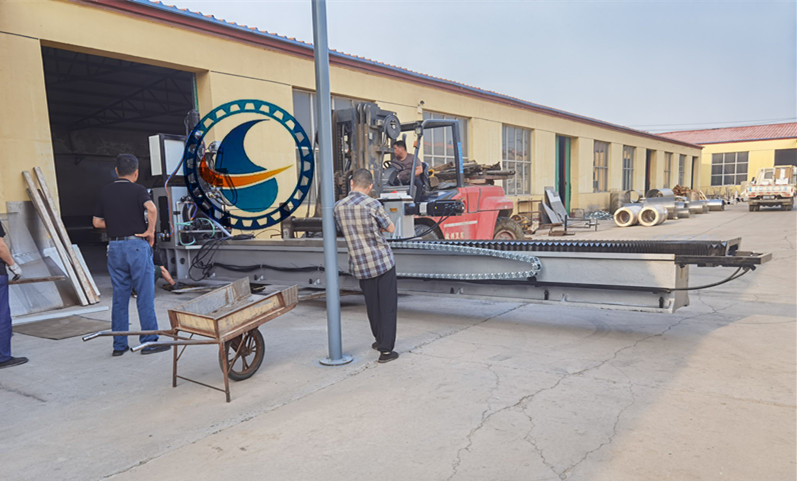

Johnson Vee-Shaped Wire Wrapped Screen Machine

Product Overview

High-performance wire wrapped screen designed for water well sand control applications, available in various materials and configurations to meet specific filtration requirements.

Key Specifications

Material: Stainless steel and low carbon steel options
Diameter Range: 114-500mm (3"-18")
Length Options: Up to 6000mm (standard 2.9m/3m and 5.8m/6m)
Slot Size: 0.05-100mm (standard 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm)
Wrap Wire: Multiple size options including 1.5×2mm to 4×7mm
Support Rod: ø3.0-ø6.0mm round wire or Vee-shaped wire
End Connections: Male/female threaded, welded rings, plain beveled ends, or flange
Surface Finish: Polished
Package: Plastic film wrapping

Standard Specifications

Size (inch)	OD (mm)	Slot (mm)	Length (m)	Tensile Strength	Collapse Strength	Wrap Wire (mm)	Support Rod (mm)
3-1/2	88.9	1.0	2.9	＞22	10.2	2.0×3.5	ø3.8×22
4-1/2	114.3	1.0	2.9	＞28	11.5	2.0×3.5	ø3.8×22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.0×3.5	ø3.8×32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.2×3.5	ø3.8×32
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0×4.6	ø4.0×48
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0×4.6	ø4.8×55

Applications

Water well sand control
Oil well filtration
Waste water treatment systems
Water supply infrastructure
Coal and mining operations
Food processing and beverage screening
Environmental protection systems
Refining and petrochemical applications
Architectural and construction uses

Customization Available: Special specifications can be manufactured according to your specific requirements.

Note: All specifications are subject to manufacturing tolerances. Contact us for detailed technical drawings and exact specifications.
