Name: High Strength Water Well Sand Screen Pipe Base Screen Low Energy Consumption
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: Diameter: 89mm
Price: 105.00 USD
Availability: InStock

Home > PRODUCTS > Wire Wrapped Screen >

High Strength Water Well Sand Screen Pipe Base Screen Low Energy Consumption

water well sand screen

oil well screen

Place of Origin:

Anping, Hebei, China

Brand Name:

Hengyuan

Certification:

ISO, CIQ,CE, SGS

Model Number:

Diameter: 89mm

Request A Quote

Product Details

Slot:

0.05, 0.25, 0.5, 0.75, 1.0, We Can Make It As Your Request

Material:

Stainless Steel 304 Or 316L, Or Other Material As Your Request

Length:

Upto 4 Meters

Wrap Wire:

1*2mm, 1.2*2mm, 1.5*2mm, 2*3mm

Support Rod:

2*3mm In Uaual

End Connection:

Welded Rings, Male/female Threaded, Flange Or Other

Automatic Back Wash Drum Screen , OD 600 MM Wire Wrap Screen Mesh

Get Best Price

Video

Stainless Steel Johnson Wire Wrapped Screen For Water Well Filter Non Clogging

Get Best Price

Video

High Filtration Precision Wire Wrapped Screen For Mining / Food Industry

Get Best Price

Video

Full Welded Stainless Steel Wedge Wire Screen 2.9m / 3m / 5.8m / 6m Length

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

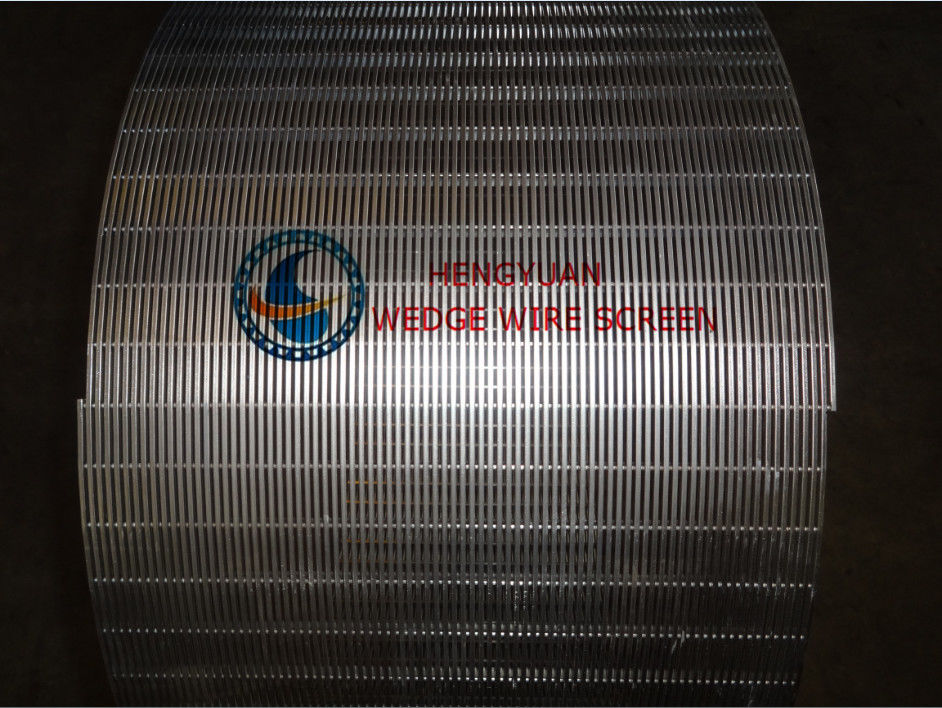

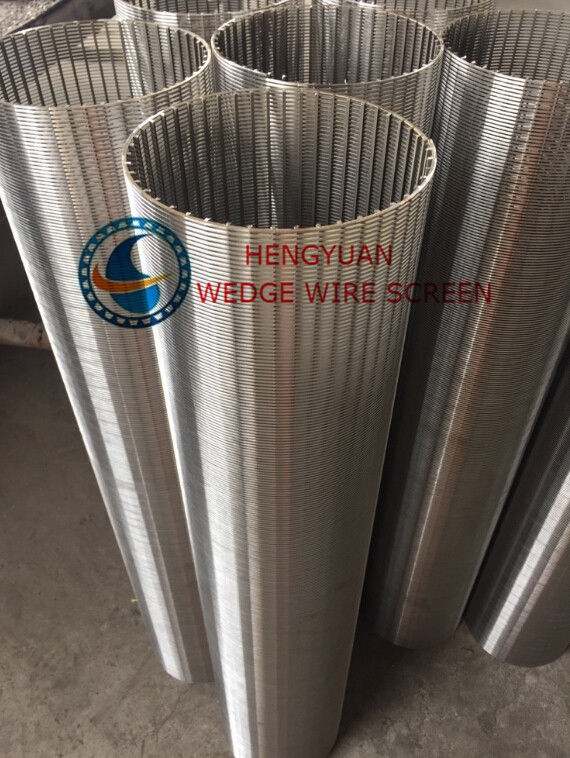

Outer Diameter 89mm Stainless Steel 304,316 Wedge Wire Screen

Hengyuan Wedge wire screen also be named Vee-Wire screen pipe,Continuous slot Vee-wire screen tube,Wire wrapped screen,Wire wound screen,water filter.

Wedge Wire Screen is made up of Vee-shaped wrapped wire and round rod in each intersection welded together.Accurate slot and high filtration precision.

Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

End connection

29,38,42,57,63,76,89,108,150,168,320,600,900,985,1000

1000,2000,3000

0.05,0.1,0.25,0.5,1.0

Welded rings, male/female threaded coupling,flange,closed up

Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 29mm- ￠ 1000mm, the length from the 100mm-4000mm series screen pipe

Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.

High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.

High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

High Strength Water Well Sand Screen Pipe Base Screen Low Energy Consumption 0
