Place of Origin: | Hebei,China |
Brand Name: | Heng Yuan |
Certification: | ISO9000 |
Model Number: | HY004 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Moister-Barrier with each piece,800pcs per 20 ft container |
Delivery Time: | 7-10 work days,according to the quantity |
Payment Terms: | L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000pcs/Month |
Material: | Stainless Steel | Grade: | 304 |
---|---|---|---|
Slot Size: | 0.7mm | Diameter: | 4 " |
Length: | 2900mm | End Connection: | Welded Rings |
Package: | Woden Box,Container | ||
High Light: | wire wrapped pipe,oil well screen |

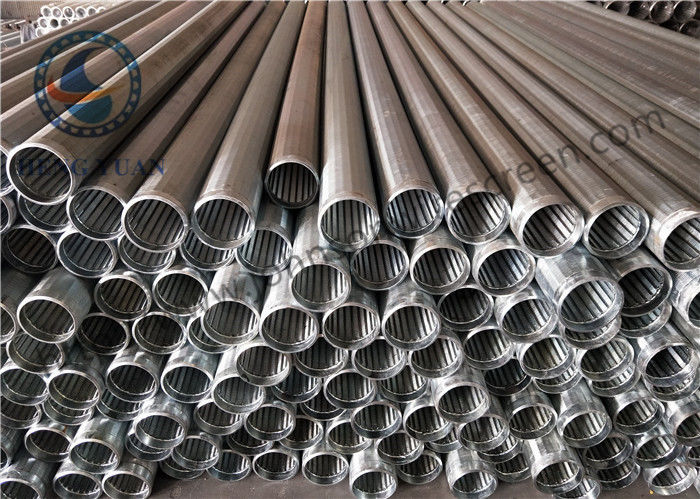

Wire Wrap Jonson Screen Stainless Steel 4 " OD 117 Screen Pipe
Product Description:
Wire Wrap Johnson Screen is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.
.
Specification:
Material | Stainless steel |
Grade | 304 |
O.D | 117 mm |
Size | 4 " |
Slot size | 0.7 mm |
Length | 2.9m |
End connection | Welded rings |
Wire size | 93 # |
Support rod | 120 # |
Wire shape | V shape |
Advantages:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The numerical control machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Use:
The wire wrap Johnson screen pipe can be widely used in petroleum gasoline industry and the prevention of sand in water well, chemical industry and environment protect industry. Especially in water filtering industry, it has the prominent position.The Johnson screen pipe can be widely used in petroleum gasoline industry and the prevention of sand in water well, chemical industry and environment protect industry. Especially in water filtering industry, it has the prominent position.
