Name: SS304 Slot 40 Continuous Slot Wire Wrapped Screen For Sand Control
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY040407
Price: 105.00 USD
Availability: InStock

Home > PRODUCTS > Wire Wrapped Screen >

SS304 Slot 40 Continuous Slot Wire Wrapped Screen For Sand Control

water well sand screen

oil well screen

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY040407

Request A Quote

Product Details

Name:

Wire Wrapped Screen

Material:

Stainless Steel

Grade:

304

Slot Size:

1.0 Mm

Diameter:

8 ",219mm

Length:

2.9M/5.8M,1000-6000MM

End Connection:

Thread Couplings ( Male / Female )

Package:

Woden Box, Container

Stainless Stelel 304 Water Well Wedge Wire Screen 89mm Diameter

Get Best Price

Video

Easy Cleaning Water Well Screen Pipe / Wire Wrap Mesh Multi Function

Get Best Price

Video

Automatic Back Wash Drum Screen , OD 600 MM Wire Wrap Screen Mesh

Get Best Price

Video

V Shaped Wire Wrapped Screen Stainless Steel Round Slot Tube 29-1200mm Dia

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

SS304 Slot 40 Continuous Slot Wire Wrapped Screen For Sand Control

Product Specifications

Attribute	Value
Name	Wire Wrapped Screen
Material	Stainless steel
Grade	304
Slot size	1.0 mm
Diameter	8", 219mm
Length	2.9M/5.8M, 1000-6000MM
End connection	Thread couplings (male/female)
Package	Wooden box, Container

Product Description

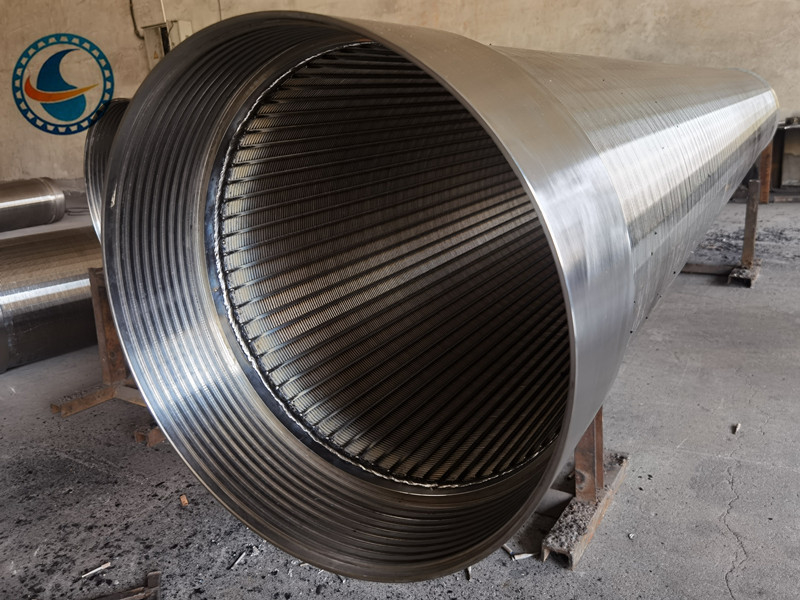

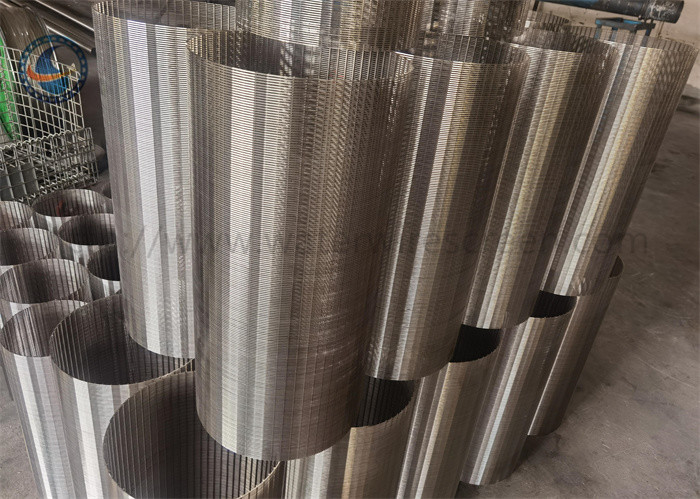

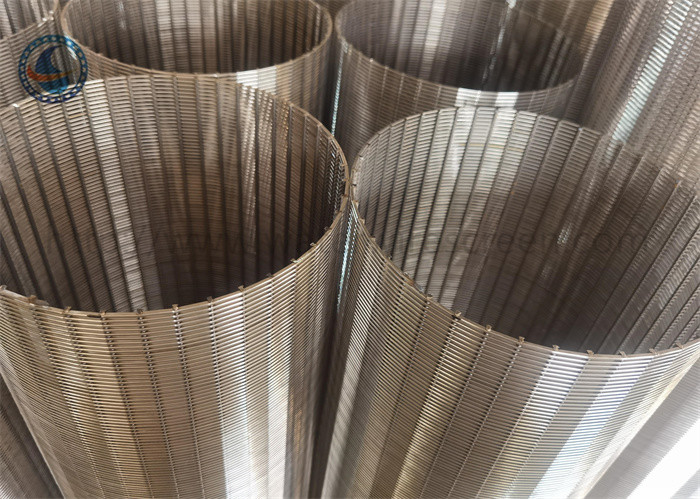

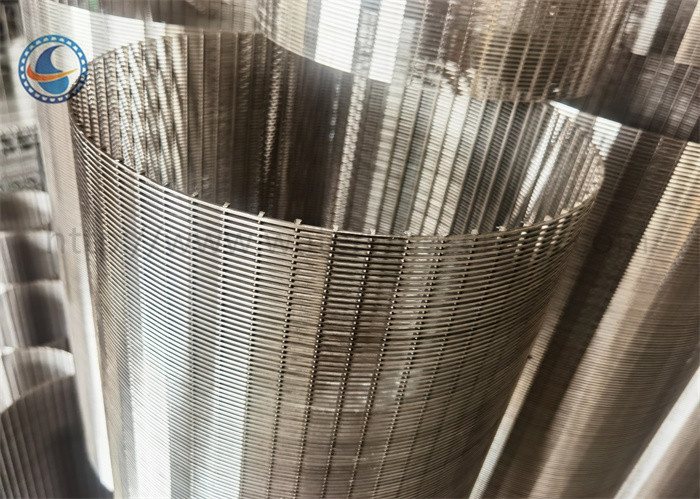

Continuous Slot Wire Wrapped Screens are made by welding vee-shaped wire on support rods, creating slots which enlarge inwardly, meeting the most demanding standards for ruggedness, durability, consistency and slot openings.

The v-shaped opening allows only two contact points with the particles, thus preventing any risk of clogging. There is a fixed value slot between each v wire, and the continuous slot is designed to provide maximum open area to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

Key Features

Not easy to jam: The special V shaped wire makes the hole of screen outside face smaller than inside, so the hole is not easy to jam.
Slot even: CNC machine tools strictly control the gap between the wire, ensuring even spacing.
Strong corrosion resistance: Stainless steel 304 provides high corrosion resistance.

Available Specifications

Material: Stainless steel 304, 304L, 316, 316L, 321. Low Carbon Steel Galvanized

Diameter: 30 - 1000mm (63mm, 89mm, 117mm, 168mm, 219mm, 273mm, 325mm, 377mm, etc.)

Inch: 3", 4", 6", 8", 10", 12", 14", 16", etc.

Length: 2.9m and 5.8m (standard), custom lengths 300mm - 6000mm available

Slot size: 0.2mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm (0.1 - 45mm range)

End connection: Welded rings, thread couplings (male/female)

V wire: 63#, 93#, 118#, etc.

Support rod: Diameter 300mm, 350mm, 380mm, 400mm, 480mm, 500mm, etc.

We can manufacture screen pipes according to customers' specific requirements.
