Name: SS304 Slot 40 Johnson Profile Wire Water Well Screens For 400m Depth Wells
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY040404
Price: 200.00 USD
Availability: InStock

Home > PRODUCTS > Water Well Screen >

SS304 Slot 40 Johnson Profile Wire Water Well Screens For 400m Depth Wells

SS304 slotted well pipe

40 slotted well pipe

400m Depth slotted well pipe

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY040404

Request A Quote

Product Details

Name:

Johnson Profile Wire Water Well Screens

Material:

Stainless Steel 304

Diameter:

10 "

Length:

5800 Mm

Slot Size:

Slot 40 (1.0 Mm)

Wire Size:

3*6mm

Support Rod:

ø5.0mm Round Wire Or Vee-shaped Wire

End Connection:

Thread Couplings ( Male / Female ) Or Welded Rings

Package:

Woden Boxes

Use:

400m Depth Wells

10-3/4 Inch SS304 Water Well Screen with #20 Slot

Get Best Price

Video

219mm Stainless Steel Johnson Water Well Screen 1.0mm Slot

Get Best Price

Video

Johnson Type Casing Pipe Wound Screen For Water Well Oil Well Filter

Get Best Price

Video

Stainless Steel Johnson Wire Screen V Wire Wrapped FIlter Element

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

SS304 Slot 40 Johnson Profile Wire Water Well Screens For 400m Depth Wells

Product Specifications

Attribute	Value
Name	Johnson Profile Wire Water Well Screens
Material	Stainless Steel 304
Diameter	10"
Length	5800 mm
Slot size	Slot 40 (1.0 mm)
Wire size	3*6mm
Support rod	ø5.0mm round wire or Vee-shaped wire
End connection	Thread couplings (male/female) or Welded rings
Package	Wooden boxes
Use	400m depth wells

Product Description

Johnson Profile Wire Water Well Screens are welded by V wire and support rod. There is a fixed value slot between each V wire, and the continuous slot is designed to provide maximum open area to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

Regular Specifications

Special specifications can be made according to your needs!

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Product Advantages

Not easy to jam: The special V shaped wire makes the hole of screen outside face smaller than inside, so the hole is not easy to jam.
Slot even: The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance: Stainless steel 304 has high corrosion resistance.

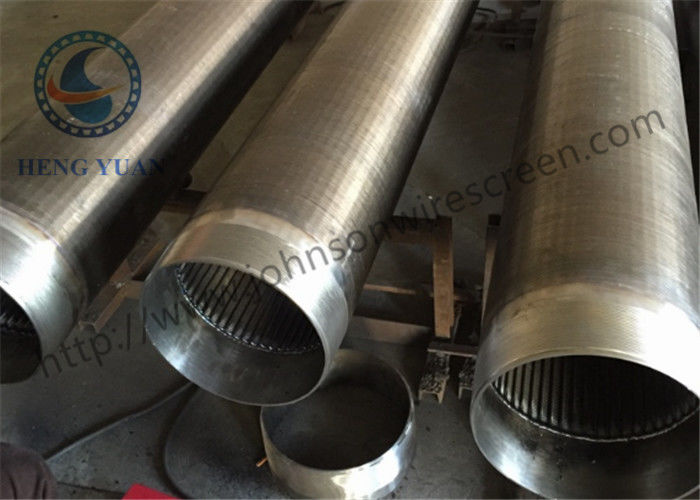

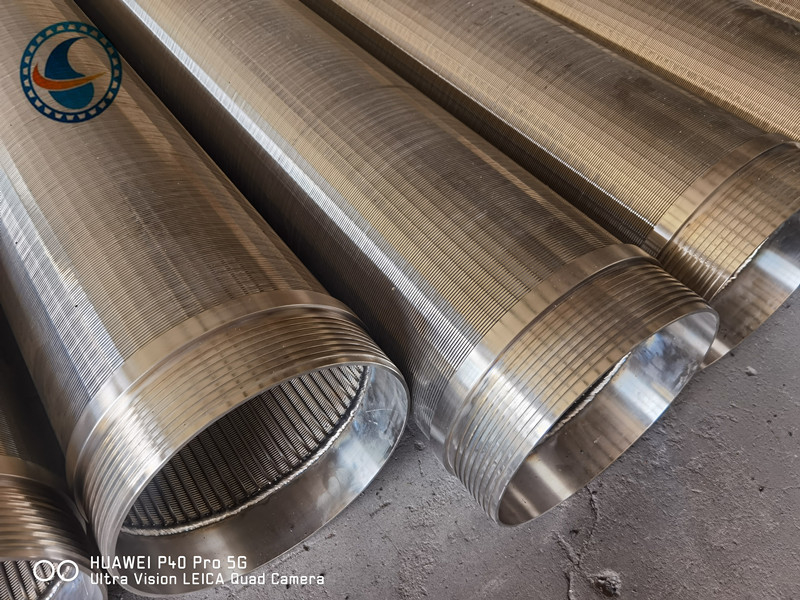

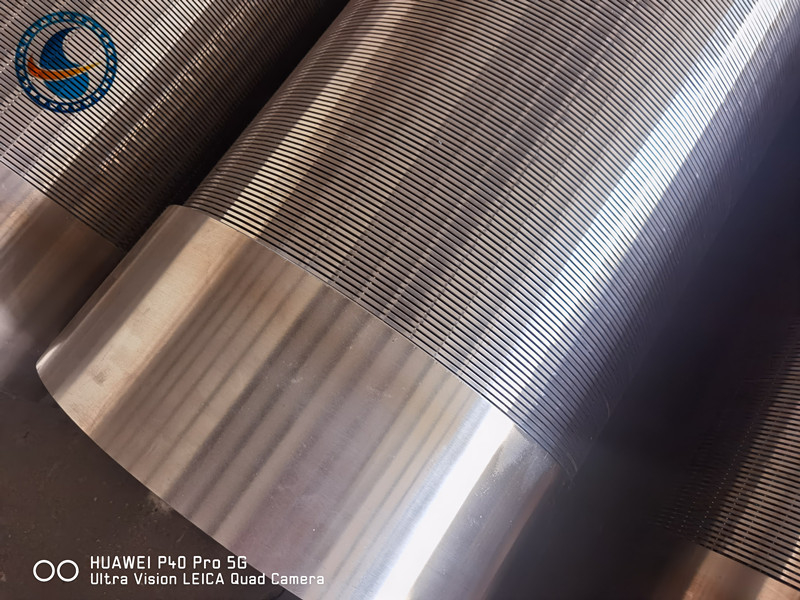

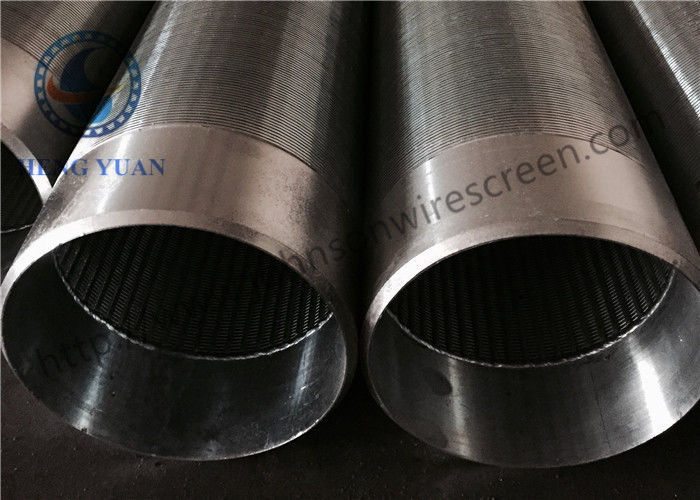

Product Images
