Name: Strong Structure Welded Wedge Wire Screen With Center Circular Hole
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY-50
Price: 155.00 USD
Availability: InStock

Home > PRODUCTS > Wedge Wire Mesh >

Strong Structure Welded Wedge Wire Screen With Center Circular Hole

sieve bend screen

wedge wire panels

Place of Origin:

Hebei,China

Brand Name:

HengYuan

Certification:

ISO

Model Number:

HY-50

Request A Quote

Product Details

Features:

Non-clogging

Name:

Wholesale Welding Plate Wedge Wire Mesh

Material:

Low Carbon Galvanized ,stainless Steel

Length:

10-3000mm

Diameter:

29-1200mm

Technique:

Full Welded

Application:

Filteration

Package:

Wooden Boxes

Ss 304 Coutinuous Slot Wedge Screen Filter Wastewater Treatment

Get Best Price

Video

SS304 Vee Wire Wedge Wire Screen Non Clogging Long Lasting Performance

Get Best Price

Video

Enhanced Filtration V Wire Screen Filter With Precise Slot 100 Micron

Get Best Price

Video

Stainless Steel 304 Wedge Wire Mesh With Continuous Slots

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

Strong Structure Welded Wedge Wire Screen With Center Circular Hole

Product Specifications

Attribute	Value
Name	Wholesale Welding Plate Wedge Wire Mesh
Material	Low carbon galvanized, stainless steel
Length	10-3000mm
Diameter	29-1200mm
Technique	Full welded
Features	Non-clogging
Application	Filtration
Package	Wooden boxes

Product Description

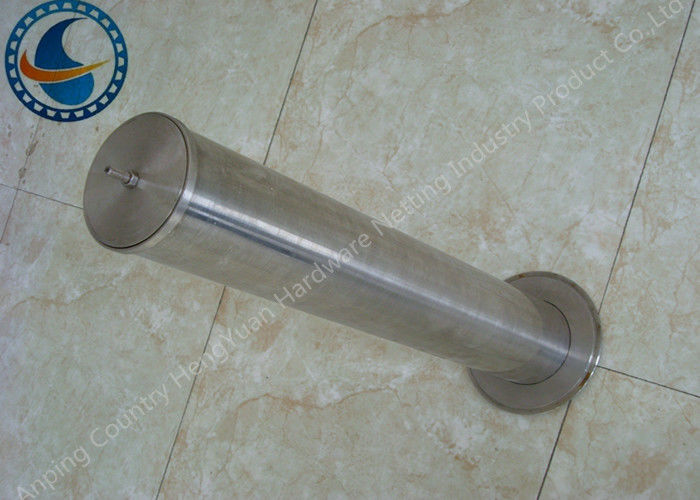

Wholesale Welding Plate Wedge Wire Mesh, Wedge Wire Screen With Center Circular Hole

Wedge wire screen, also known as Vee-wire screen pipe, continuous slot vee-wire screen tube, wire wrapped screen, wire wound screen, or water filter, is constructed with Vee-shaped wrapped wire and round rods welded together at each intersection. This design ensures accurate slot dimensions and high filtration precision.

The unique hole shape enhances the fusion between the wedge wire mesh and machine structure. Our professional welding techniques guarantee high performance with neat and perfect sealing.

Common sizes: Profile wire #63, #93, #118
Slot size: 0.05-30mm or customized
Length: 10-3000mm
Diameter: 29-1200mm
End connection options: Male/female threaded couplings, welded rings/plain beveled ends, flange, closed end plate, same slot sieve plate

Technical Specifications

Material	SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range	19mm-2000mm
ID Range	13mm-1981mm
Length Range	Up to 6000 mm
Slot Range	20 micron to 3000 micron (Tolerance: ±5 micron)
Wedge Wire	1x2 \| 1.22 \| 1.52 \| 23 \| 2.2x3.5 \| 34.6 \| 3*5
Support Rod	23 \| 23 \| 2x3 \| 2x3 \| 2x3 2x4 3x5 3x6 3x10 4x7 \| 2x4 3x5 3x6 3x10 4x7 5x6 \| 3x5 3x6 3x10 4x7 5x6 5x8
End Finishing	Flange, Metal Ring, Cross Connector, closed, etc

Customized According To Requirement
