Easy Operation Rotating Screen Filter Rotary Drum Screen For Solid Liquid Separation

Easy Operation Rotating Screen Filter Rotary Drum Screen For Solid Liquid Separation

rotary sand screen

wire cylinder basket

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY0010

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Grade:
316L
Slot Size:
0.75 Mm
Diameter:
250 Mm
Length:
1100 Mm
Components:
Flange, Handle
Package:
Woden Box,Container
Product Description

Stainless Steel 316 Reverse Johnson Screen Rotary Screen Drum Cylinder Back Flush Screen



Product Description:



Reverse Wedge wire screen cylinder is made by Johnson screen mesh through reverse welding . Johnson screen mesh is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The finished reverse wedge wire screen cylinder have a smooth inside.The filter screen cylinder has a number of longitudinal and horizontal ribs on the outside, greatly enhancing the anti-crushing strength of the sieve cylinder, especially suitable for sieving cylinder with rotating blades inside the extruder.



.

Specification:


Material Stainless steel
Grade 304
 I.D 150-1000 mm, 250 MM
Slot Size 0.1 - 30 mm,  0.75 mm
Components Flange, handle
Length 300-3000mm, 1.1m,
Filter type  From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

I.D.: 150 - 1000 MM

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 300mm-3000mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Filter Type: from inside to outside.

The wedge wire is circle, and the support rod is vertical.

Other components : Flange, stiffener, lifting handle, and other type components by request.



Special specification can be made according to your need.



Advantages:



adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filtration and more effective

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Stainless steel have the high corrosion resistance.

Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.

Apply to Built-in scraper, brush, suction first class cleaning device.

easy operation, fine permeability, unaffected by temperature, long life service, safety and reliability, low comprehensive cost.



Industry:



Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.



Pictures:

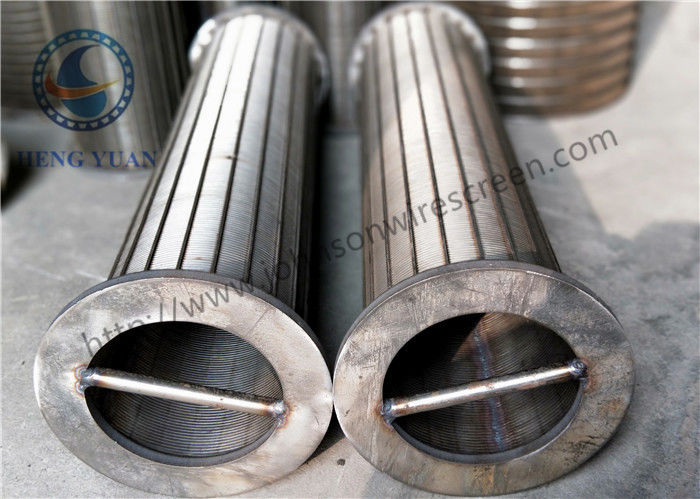

Easy Operation Rotating Screen Filter Rotary Drum Screen For Solid Liquid Separation 0

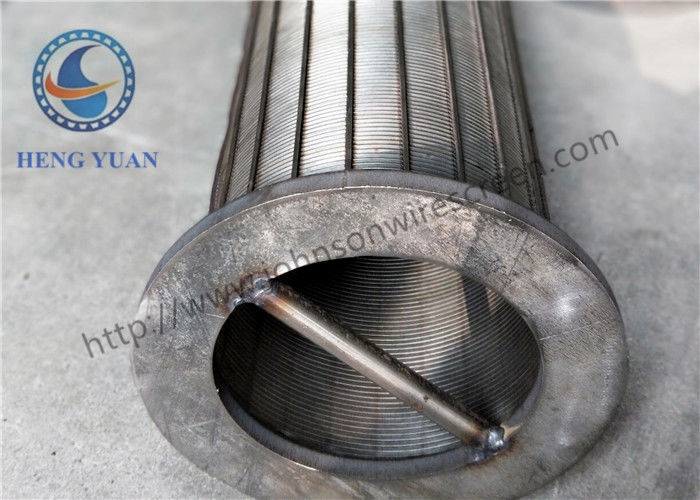

Easy Operation Rotating Screen Filter Rotary Drum Screen For Solid Liquid Separation 1
