Name: Stainless Steel Sand Control Pipe Base Screen Pipe Salt Resistance
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 6 " 8 " 10 " 12 " 14 "
Price: 300.00 USD
Availability: InStock

Home > PRODUCTS > Pipe Base Screen >

Stainless Steel Sand Control Pipe Base Screen Pipe Salt Resistance

water well drill pipe

wire wrapped pipe

Place of Origin:

Anping, Hebei, China

Brand Name:

Hengyuan

Certification:

ISO,SGS,CIQ,CE

Model Number:

6 " 8 " 10 " 12 " 14 "

Request A Quote

Product Details

Name:

Pipe Based Screen Pipe

Wedge Wire Screen Material:

Stainless Steel 304

Base Pipe Material:

N80

Slot Of Wedge Wire Screen:

0.1-50mm

Wire Size:

2*3.5mm , 3*4.6mm Etc

End Connection:

Male/female Threaded

Application:

Filters

Technique:

Full Welded

Stainless Steel 304 Pipe Base Screen For Geothermal Well Drilling High Efficiency

Get Best Price

Video

6 " 8 " 10 " 12 " 14 " Pipe Base Screen Water Well Drill Pipe For Filters

Get Best Price

Video

Welding Based Well Screen Two Layer Wedge Wire Screen Pipe Non Clogging

Get Best Price

Deep Well Pipe Base Screen High Flow Capacity Outer Diameter 114mm

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

Stainless Steel Sand Control Pipe Base Screen Pipe Salt Resistance

Product Specifications

Attribute	Value
Name	Pipe based screen pipe
Wedge Wire Screen Material	Stainless Steel 304
Base Pipe Material	N80
Slot of Wedge wire screen	0.1-50mm
Wire size	23.5mm, 34.6mm etc
End connection	Male/female threaded
Application	Filters
Technique	Full Welded

API Pipe Base Screen Perforated Sand Filter Water Well Screen Pipe

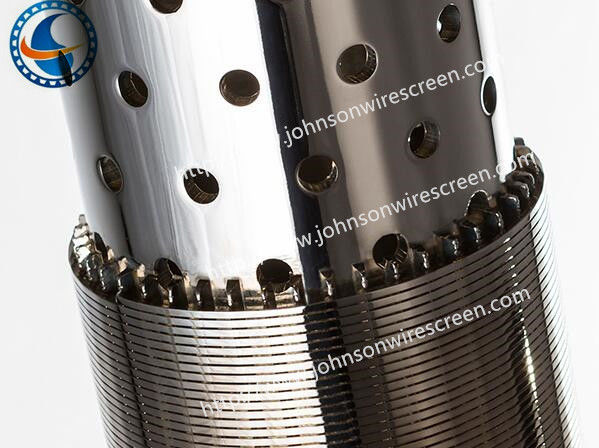

Pipe Based Screen Pipe (also known as Wrap On Pipe Screen) is a wire-wrapped screen constructed directly onto the base pipe. Combining advanced machine technology with optimized wire design, our Pipe Base Screen Pipe delivers best-in-class performance.

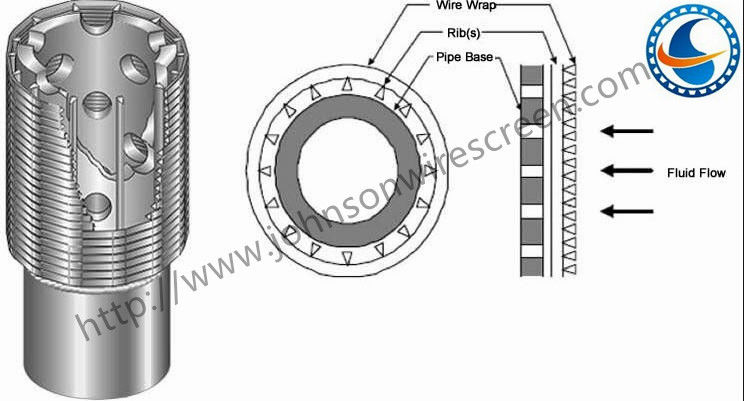

The design features longitudinal ribs that support the wrap wire while functioning as a drainage layer, ensuring optimal flow to the base pipe perforations. The wire is tightly wrapped around the base pipe and welded to the ribs, with the cooling process creating additional strength through shrinkage. The base pipe perforations are engineered to maximize flow while maintaining structural integrity.

Key Features & Benefits

Wide selection of wire dimensions and configurations to meet specific requirements
Self-cleaning design with maximum flow capacity
Comprehensive range of slot sizes and pipe hole diameters
Available in various alloys as needed
Screen-to-base pipe attachment provides exceptional strength against compression, torque, and thermal strain
Enhanced resistance to damage through direct wrapping to base pipe
