Place of Origin:
Anping, Hebei, China
Brand Name:
Heng Yuan
Certification:
ISO,SGS, CIQ,CE
Model Number:
HY040403
Contact Us

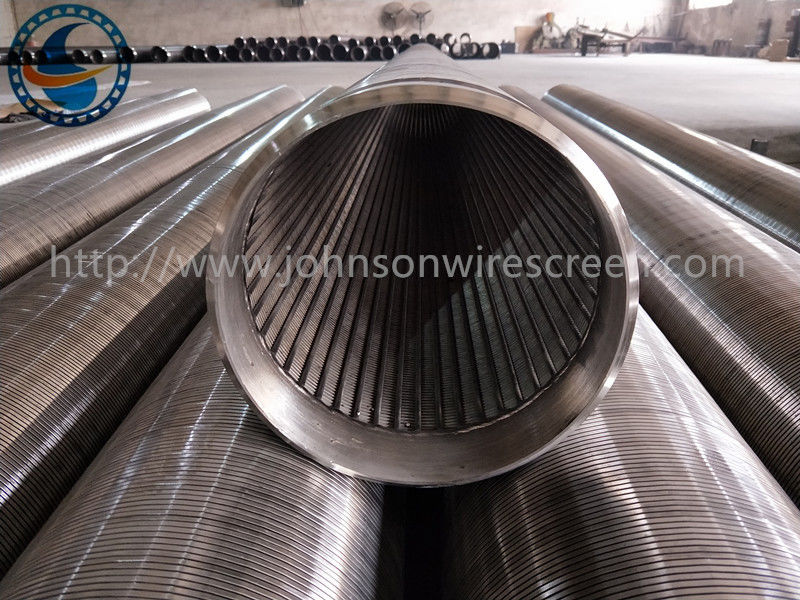

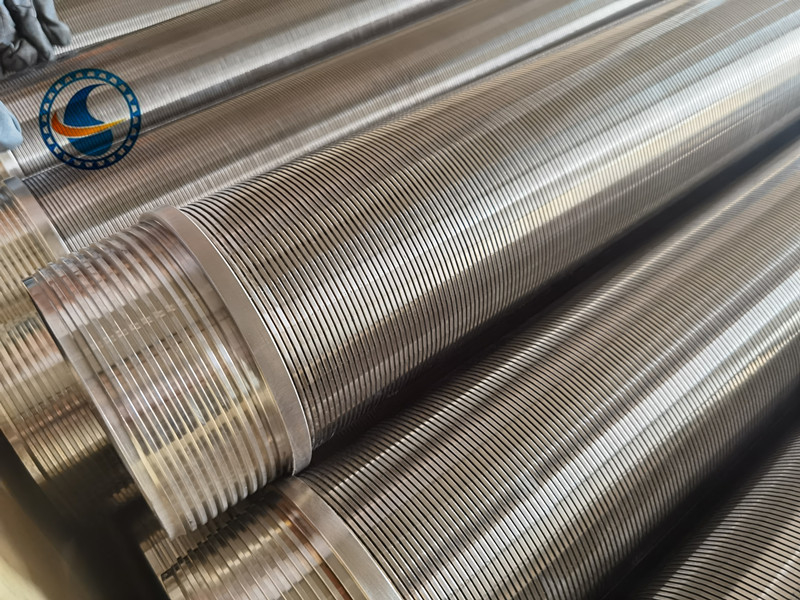

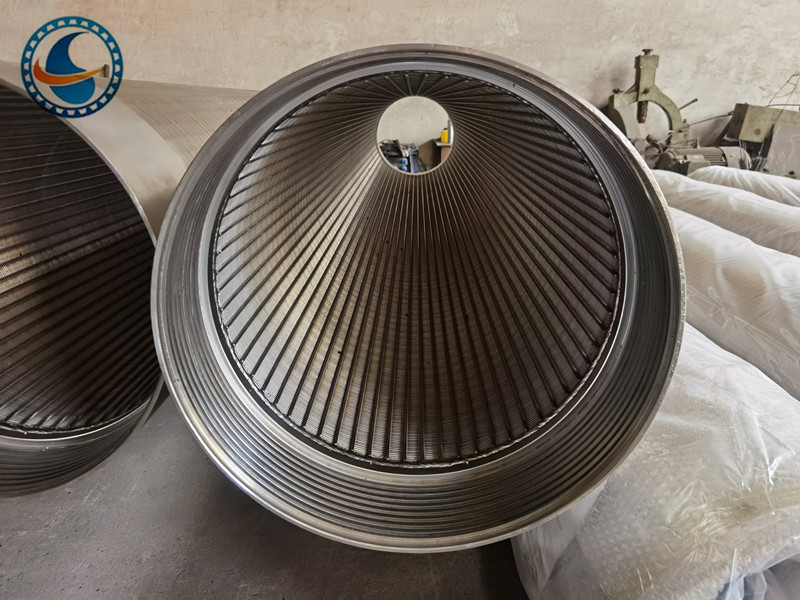

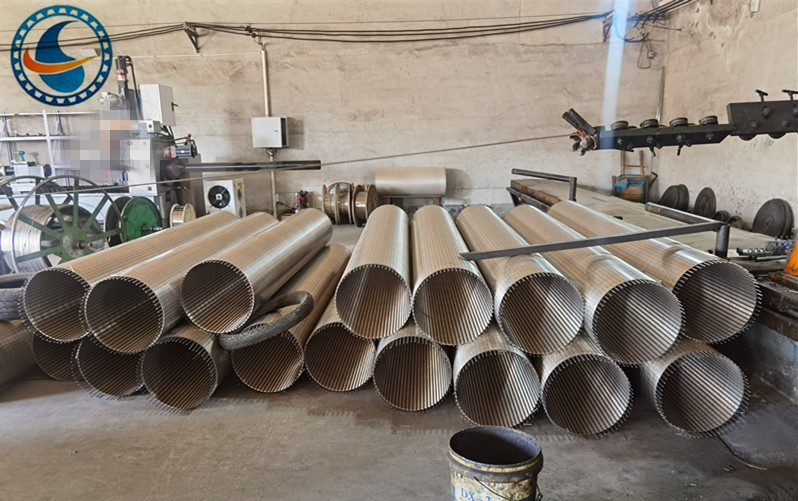

Johnson well screen is the continuous slot,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.Both the inner and outer screens shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.Each junction of wire/rod contact shall be resistance welded.The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.
| Material | Stainless Steel |
| Grade | 304,, 316L |
| O.D | 168mm, 219 mm, 273mm,325mm, 356mm, 406mm etc. |
| Size | 6", 8 ", 10" , 12", 14", 16" etc. |
| Length | 2.9m, 5.8 m to fit container, max length 6m |
| Solt size | 0.5mm, 0.75mm, 1.0 mm,1.5mm |
| End connection | Welded rings or male/female threaded |
| Wire size | 2*3.5mm, 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm, 3*7mm etc. |
| Support rod |
round wire ø3.0-5.0mm or Vee-shaped wire |
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Johnson well screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
· Water Well
· Waste Water Treatment
. Water supply systems
· Coal & Mine
· Food Processors & Beverage Screens
· Environmental protection
· Refining & Petrochemical
· Architecture & Construction
