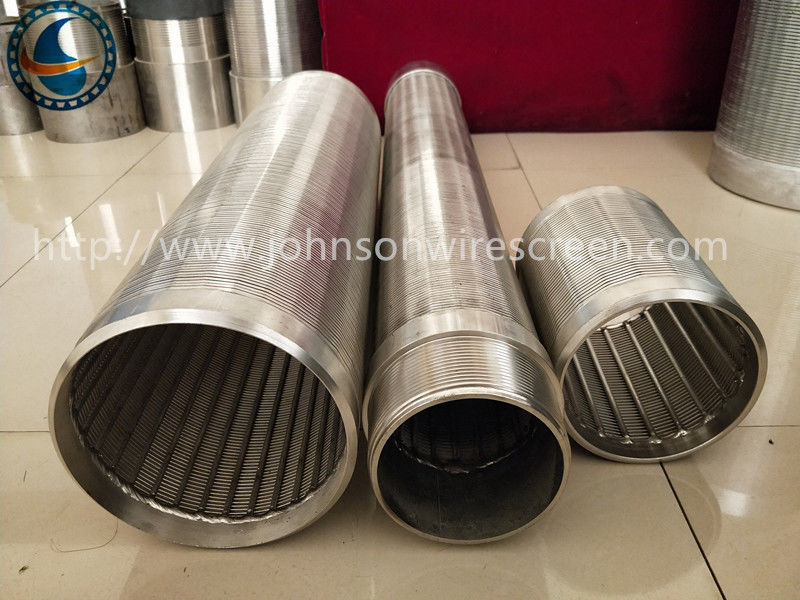

High Effective Johnson Wedge Wire Screens Non Magnetic Stainless Steel Material

High Effective Johnson Wedge Wire Screens Non Magnetic Stainless Steel Material

  • High Effective Johnson Wedge Wire Screens Non Magnetic Stainless Steel Material
  • High Effective Johnson Wedge Wire Screens Non Magnetic Stainless Steel Material
High Effective Johnson Wedge Wire Screens Non Magnetic Stainless Steel Material
Product Details:
Place of Origin: Anping, Hebei, China
Brand Name: HengYuan
Certification: ISO, CIQ, SGS, CE
Model Number: 6-5/8 inch
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: negotiated price
Packaging Details: wooden boxes,container
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs /month
Contact Now
All Products
Johnson Wire Screen (66)
Johnson Vee Wire Screen (37)
Johnson Wedge Wire Screens (24)
Wire Wrapped Screen (30)
Water Well Screen (38)
Water Filter Nozzle (49)
Wedge Wire Screen Panels (64)
Wedge Wire Mesh (61)
Parabolic Screen Filter (9)
Rotary Screen Drum (71)
Pipe Base Screen (6)
Tapered Steel Tube (3)
Detailed Product Description
Features: Non-clogging Name: Wedge Wire Screen Mesh
Material: Stainless Steel Length: 10FT, Upto 6 Meters
Diameter: 29-1200mm Technique: Full Welded
Application: Filteration Package: Wooden Boxes,container
End Connection: Welded Rings Or Male/female Threaded
High Light:

wedge wire filter

,

well screen pipe

Supplier Non-Magnetic Stainless Steel Wedge Wire Screen Filter



Non-magnetic Stainless steel wedge wire screens by HengYuan has a high open area compared with other screen media, then this kind of water well screens allows lower entrance velocity and higher flow rates through the screen.



Non-magnetic Stainless steel wedge wire screens give continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening.


Specifications of non-magnetic stainless steel wedge wire screens :


Slot size (mm): 0.25, 0.5, 1.0, 1.5, 2.0mm, or other slot as your request.
Open area: up to 60%
Material: Non-magnetic stainless steel
Lengths up to 6 meters for container
Diameter: ranging from 25 to 800mm
End connection: threaded coupling or welded ends
Slot (mm): 0.50,  0.75,  1.00,   1.50,   2.00,   3.00 and so on.





Specification (wedge wire): Width(mm): 2.0,  2.2,  3.0,  3.2
Height(mm): 3.5,  4.6,  5.0,  6.0, 7.0
Specification (support rod): Round: From 3.0mm to 5.0mm
Note: other specifications available as per request
Slot size 0.5,  0.75,  1.0, 1.5mm.. 100mm also achieved upon request.
Material: Non-magnetic Stainless steel
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings





High Effective Johnson Wedge Wire Screens Non Magnetic Stainless Steel Material 0
