Place of Origin:
Hebei,China
Brand Name:
Heng Yuan
Certification:
ISO9000
Model Number:
HY0010
Contact Us

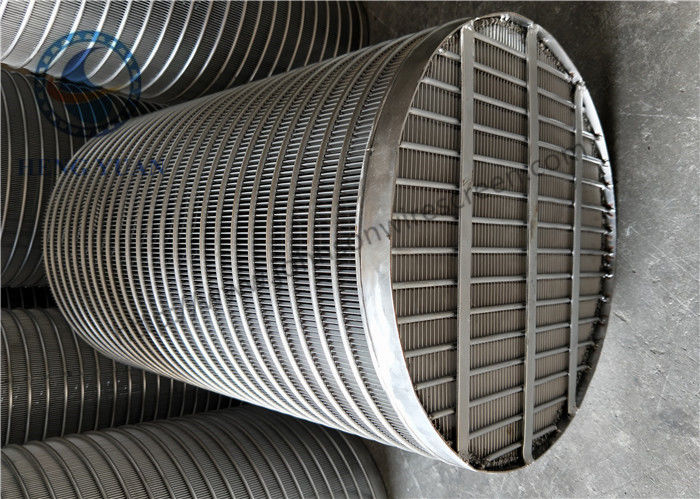

SUS 316 Reverse V Profile Wedge Wire Screen Basket Drum Back Flush Filter Treatment
Product Description:
Johnson screen drum is made by Johnson screen mesh through reverse welding.There are two type of the screen cylinder, the inside circle wire ( circle gap ) and the inside vertical wire ( vertical gap ) . It can be madeby customer's requirement.The liquid flow from inside to outside. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.The drum screen is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams.
.
Specification:
| Material | Stainless steel |
| Grade | 316L |
| I.D | 150-1000 mm, 500 MM |
| Slot Size | 0.1 - 30 mm, 0.5 mm |
| Components | Reinforcing plate |
| Length | 300-3000mm, 1.2m, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Filter Type: from inside to outside.
Other components : Flange, stiffener, lifting handle, and other type components by request.
Special specification can be made according to your need.
Advantages:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel have the high corrosion resistance
Easy to backwash, clean without dead Angle.
Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.
Built-in scraper, brush, suction first class cleaning device.
The special
Industry:
Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.
