Place of Origin:
Hebei,China
Brand Name:
HengYuan
Certification:
ISO
Model Number:
HY-74
Contact Us

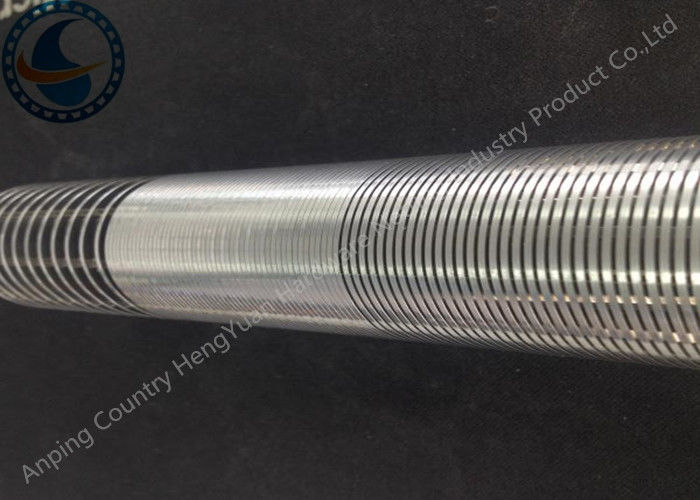

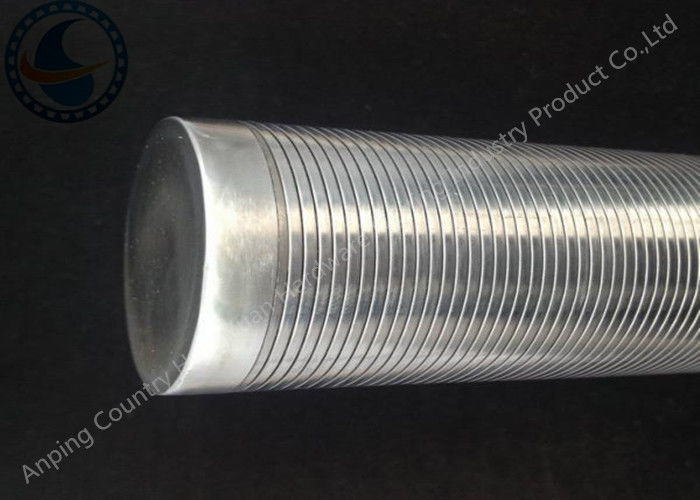

Johnson Water Well Screen ,wedge slot screen wedge wire filter
Sand control screens
For diverse purposes and applications, slotted liner, continuous slot like wedge wire screen and pipe-based wire wrapped screen, bridge slot screen and perforated casing are provided.
All of them use state-of-art technologies to ensure optimum well completions.
Slotted liner is our star product among sand control screens for its outstanding performance over anti-plugging and excellent mechanical properties.
Our company integrates advanced laser cutting process with CNC indexing system. This significantly improves precise slot size and production efficiency as well as significantly reduces the cost.
Wire wrapped screen features continuous slot and permits more water or oil to enter the screen. It can be subdivided into two styles: rod-based screen or wedge wire screen and pipe-based screen.
Pre-packed screen is a stand-alone screen for it is previously equipped with packed gravel. Bridge slot screen has a unique construction – bridge slot. It is characterized by lightweight, lower possibility of clogging and low cost.
| Basepipe OD (in) | Perforations per foot | Basepipe Hole Size (in) | Open Area of Basepipe Holes (in2/ft) | Wrap Wire Size Keystone (in) | Rib Wire Size Round (in) | Maximum OD (in) |
| 1.05 | 54 | 0.312 | 4.14 | 0.09*0.09 | 0.125 | 1.489 |
| 1.315 | 66 | 0.312 | 5.06 | 0.09*0.09 | 0.125 | 1.726 |
| 1.66 | 78 | 0.312 | 5.98 | 0.09*0.09 | 0.125 | 2.126 |
| 1.90 | 42 | 0.375 | 4.63 | 0.09*0.09 | 0.125 | 2.387 |
| 2.063 | 42 | 0.375 | 4.63 | 0.09*0.09 | 0.125 | 2.55 |
| 2.375 | 54 | 0.375 | 5.96 | 0.09*0.09 | 0.125 | 2.86 |
| 2.875 | 66 | 0.375 | 7.28 | 0.09*0.09 | 0.125 | 3.362 |
| 3.25 | 78 | 0.375 | 8.61 | 0.09*0.09 | 0.125 | 3.737 |
| 3.50 | 78 | 0.375 | 8.61 | 0.09*0.09 | 0.125 | 3.987 |
| 4.00 | 90 | 0.375 | 9.94 | 0.09*0.09 | 0.125 | 4.487 |
| 4.50 | 102 | 0.375 | 11.26 | 0.09*0.09 | 0.125 | 5.001 |
| 5.00 | 114 | 0.375 | 12.59 | 0.09*0.09 | 0.125 | 5.506 |
