Place of Origin: | Hebei,China |
Brand Name: | HengYuan |
Certification: | ISO |
Model Number: | HY-77 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negoiation Price |
Packaging Details: | wooden boxes ,container |
Delivery Time: | 7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1500 pcs ./month |
Features: | Non-clogging | Name: | Vee Wire Screen Systerm Water Treatment |
---|---|---|---|
Material: | Low Carbon Galvanized ,stainless Steel | Technique: | Point Welding |
Application: | Filteration | Package: | Wooden Boxes ,container |
High Light: | stainless steel wedge wire screen,slotted screen pipe |

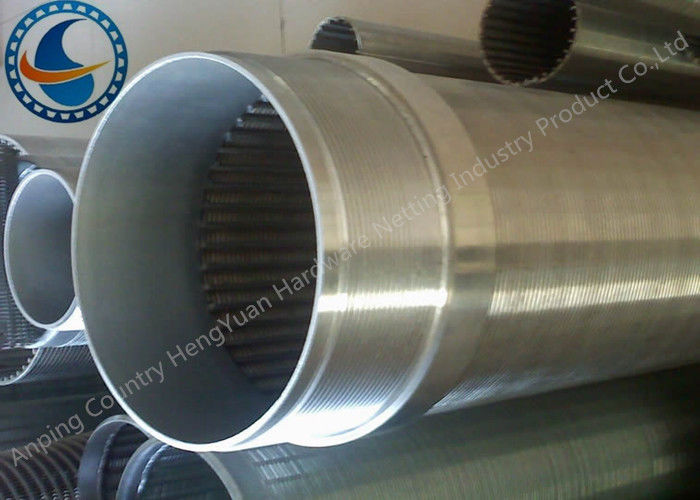

Vee Wire Screen System water treatment, Johnson V shape wedge wire screen
Johnson Screens offers a wide variety of screens for particle separation, dewatering, classifying and related mineral processing applications. Every intersection of surface wire and internal support rods is welded producing a very strong screen. Our flat screens can be fabricated with very small wires and rods for critical, fine-screening operations or with much larger wires and rods for heavy-duty operations.
Our welded wire screens use a surface wire that is vee-shaped in profile, creating slots that enlarge inwardly. This means particles make only a two-point contact in the slots and will not become lodged.
Benefits of Johnson Screens Vee-Wire screens are:
1. Great strength
2. Higher capacity
3. Reduced cost
4. Higher level of adaptability
5. Long wear/service life
6. Reduced maintenance
7. Greater resistance to corrosive conditions and high temperatures and pressures
8. Greater resistance to stresses of installation and cleaning
9. High efficiency fluid-solid separation
SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/42 |
8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/42 |
8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/42 |
10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/54 |
10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/54 |
10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/54 |
Slot (mm): 0.1,0.25,0.50,0.75,1.00,1.50,2.00,3.00 also achieved upon customer request.
