304 Grade Johnson Stainless Steel Screen Vee Wire Screen 5800mm Length

304 Grade Johnson Stainless Steel Screen Vee Wire Screen 5800mm Length

stainless steel wedge wire screen

slotted screen pipe

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY004

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Grade:
304
Slot Size:
0.5 Mm
Diameter:
8 "
Length:
5800mm
End Connection:
Welded Rings
Package:
Woden Box,Container
Product Description

Jonson Vee Screen Wege Wire Screen Pipe Stainless Steel 40 Bar 20 Slot OD 219 8 "



Product Description:



Jonson Vee wire screen is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape.



Specification:



Material Stainless steel
Grade 304
O.D 219 mm
Size 8 "
Slot size 0.5 mm
Length 5.8 m
End connection Welded rings
Wire size 118 #
Support rod 140 #
Wire shape V shape



Regular Specifications:



SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59



Characteristic:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance



OEM service:



Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Custom range

Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.



Application:



Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells



Pictures:

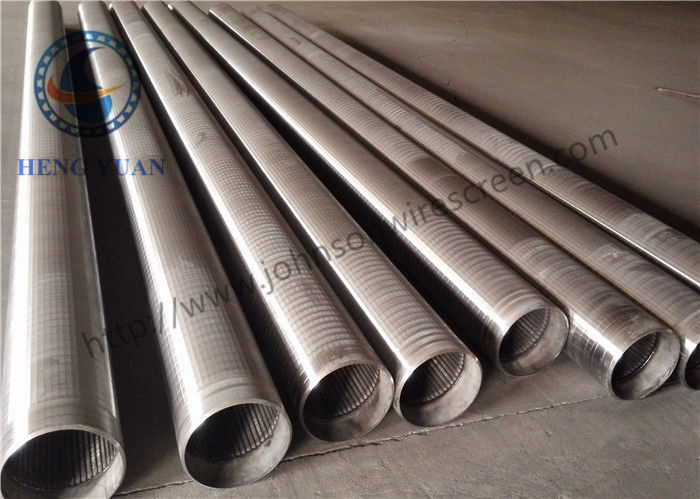

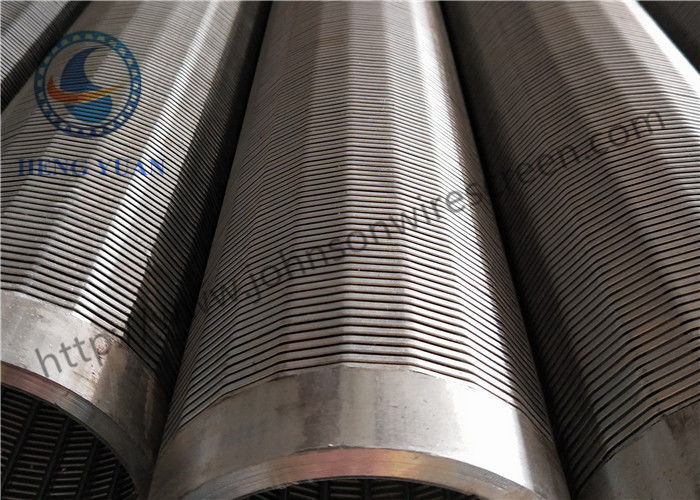

304 Grade Johnson Stainless Steel Screen Vee Wire Screen 5800mm Length 0304 Grade Johnson Stainless Steel Screen Vee Wire Screen 5800mm Length 1



Package:



304 Grade Johnson Stainless Steel Screen Vee Wire Screen 5800mm Length 2304 Grade Johnson Stainless Steel Screen Vee Wire Screen 5800mm Length 3
