Product Description

Food Filtration Welded Wedge Wire Screen Durable 304L / 304L / 316L Grade

Product Specifications

Attribute	Value
Material	Stainless steel
Grade	304, 304L, 316L
Slot size	0.05-100mm
Dimension	Diameter 1.3 m, up to 3m (custom requests available)
Package	Wooden box, Container

Product Description

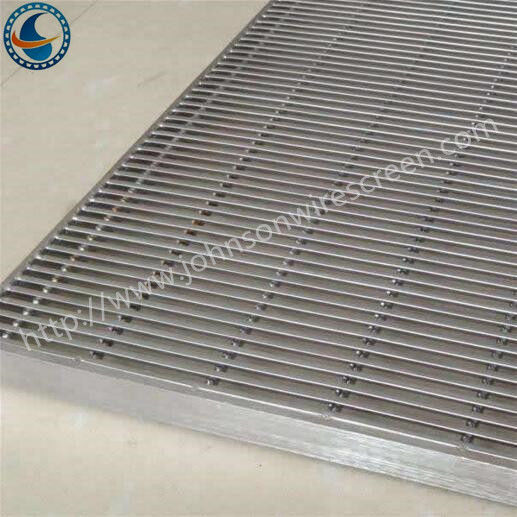

Stainless Steel 30408 Vee Wedge Wire Screen Panel for Food Filtration is welded by V wire and support rod with fixed value slots between each v wire.

The support rod can be round wire or triangular/trapezoidal shape. The wedge shape wire creates gap openings with one end small and the other end large, preventing jamming.

Processed by advanced fusion welding technology, this product features:

High strength, rigidity and bearing capacity
Accurate slot size and high filtering precision
Strong structure with high ventilation efficiency
Excellent heat dissipation and high temperature resistance
Superior corrosion resistance and mechanical properties
Long service life with safe and reliable operation

Technical Specifications

Material	Stainless steel 304, 304L, 316, 316L, 321 etc.
Grade	304, 304L, 316L, 321
Dimension	3 × 3 m (custom requests available)
Slot Size	0.05-100 mm (Discrepancy: ±0.05mm)
Width	Up to 3000mm
Length	Up to 3150mm
Type	Screen plate
Wire size	1×2mm, 1.2×2mm, 1.5×2mm, 2×3mm, 2×3.5mm, 2.2×3.5mm, 3×4.6mm, 3×5mm, 3×6mm etc.
Support rod	2×3mm, 3×4.6mm, 3×5mm, 3×6mm, 2×10mm, 3×10mm
Wire shape	V shaped

We can manufacture custom sizes according to your specifications and drawings.

Industry Applications

Mining Machinery:

Used for desilting and dewatering of coal preparation plants.

Wheat Tooth Machine:

Suitable for use in wheat tooth mill, floater and drying stove.

Beer Machine:

Ideal for brewery filter tanks with high opening rate and long service life.

Food Industry:

Perfect for filtration processes in food and beverage production.
