Wedge Wire Screen Panel can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.
1. Freel throws gravel material special screen used in high standards of geothermal wells.
2. For the slot screen, in order to filter from the inside out, wire surface can be reversed with supporting
bar in the pipe.
3. And most surface wire can be combined like this way.The diameter of the gap screen can achieve
1200mm, and slot width is variable.
| Round Support Rod Construction | Rectangular Support Rod Construction |
| 63V on ¼” diameter at 1 ¼” centers | 63V on .074” × ½” at 1” centers |
| 69V on 5/16” diameter at 2” centers | 69V on .074” × ¾” at 1 ½” centers |
| 93V on 5/16” diameter at 2” centers | 93V on .074” × 1” at 2” centers |
| 125V on 3/8” diameter at 3” centers | 125V on .105”× 1” at 2” centers |

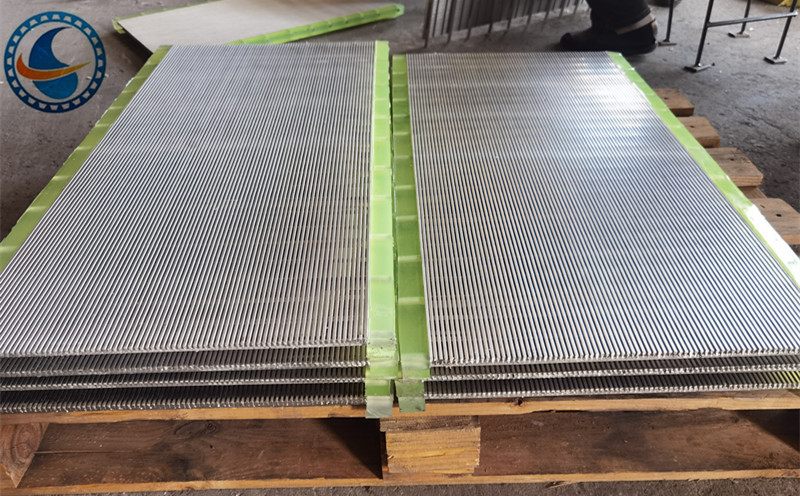

Finished product

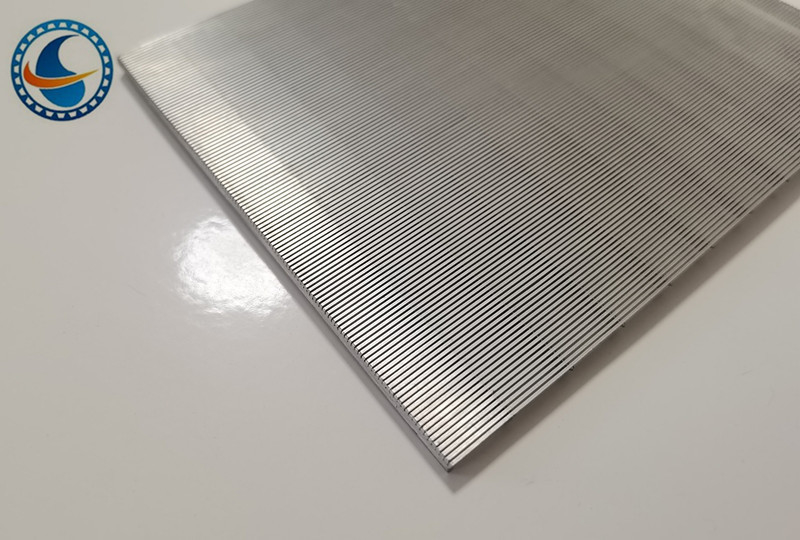

1. Wedge Wire Screen Panels with round support rods.

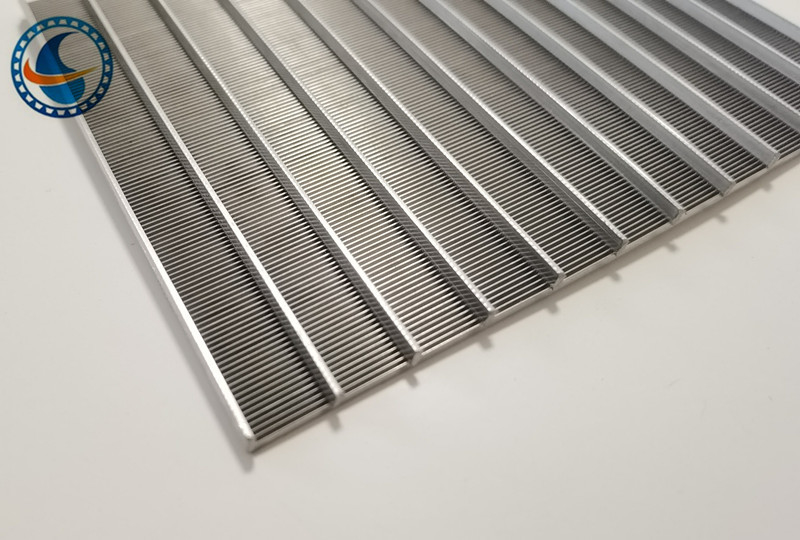

2. Wedge Wire Screen Panels with rectangular support rods.
3. Wedge Wire Screen Panel with side frame.
4. Heavy duty wedge wire.
Wedge Wire Screen Panel can be designed to optimize the open area, strength and wear life for each application. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.
