251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe

251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe

  • 251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe
  • 251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe
251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe
Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: HY-87
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD 250/PC
Packaging Details: wooden box or customized
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs/month
Contact Now
Detailed Product Description
Material: Stainless Steel V Wire Technique: Welding
Feature: Non-clogging Application: Filtration
High Light:

johnson screen mesh

,

johnson screen pipe



251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe



251mm stainless steel Johnson type wedge wire screen tube water well slot pipe





Material:stainless steel v wire /galvanized steel wire



Technique:welding



Features: The surface of the wire wound filter core is smooth, without edges and corners, reducing friction and increasing effective filtration area.


The filtering direction can be adjusted according to the requirements of customers, from the inside out or the direction, to meet the customer's design needs.


The gap of the wire filter core is uniform, and the error is 0.005mm, which can meet the higher precision requirements.


The special V type silk structure is not only difficult to block, but also can be back washed.


In order to adapt to the special environment such as high pressure and high temperature, we can make reinforced wire filter core.



Application:water well screen drilling pipe,liquid filtration,oil filtration etc.





Material stainless steel wire 304,302,304L,316,316L or galvanized steel wire
OD 1 Iinch,3 inch,4 inch,6inch,8 inch,10 inch,12 inch,14 inch,16 inch,18 inch,20 inch
the slot 0.1mm-45mm
the wire 2.0mm*3.0mm ,3.0mm*4.6mm,3.0mm*5.0mm
the rods 3.8mm/22,3.8mm/32,3.8mm/48,3.8mm/50
Styles of connection welding ring,threaded male /female coupling
Standard length 1000mm-5850mm

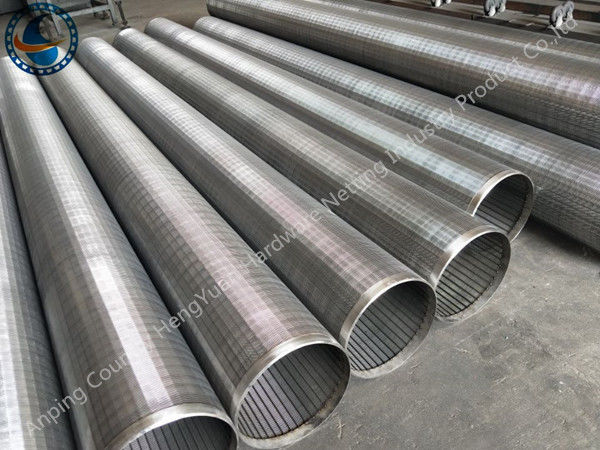

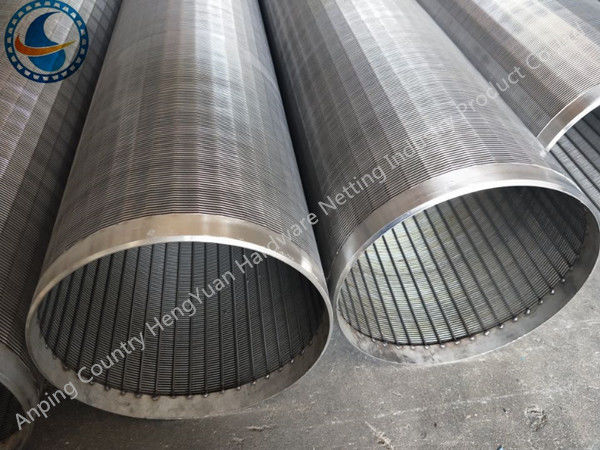

251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe 0



251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe 1



251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe 2

--------------------------------------------------------------------------------------------------------------------------

Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.



Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial lateralsetc.





Any questions please feel free to contact me !my wechat: 13903185920
