Length 5.8M Stainless Steel Vee Well Casing Pipe Wire Welded Well Pump Screen

Length 5.8M Stainless Steel Vee Well Casing Pipe Wire Welded Well Pump Screen

  • Length 5.8M Stainless Steel Vee Well Casing Pipe Wire Welded Well Pump Screen
  • Length 5.8M Stainless Steel Vee Well Casing Pipe Wire Welded Well Pump Screen
Length 5.8M Stainless Steel Vee Well Casing Pipe Wire Welded Well Pump Screen
Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY005
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Contact Now
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 1.0 Mm Diameter: 10 ",273mm
Length: 5.8M End Connection: Wleded Rings
Package: Woden Box, Container
High Light:

well casing pipe

,

well pump screen

High Strength Continuous Slot Johnson Sand Control Water Well Drill Screen



Product Description:



High Strength Continuous Slot Johnson Sand Control Water Well Drill Screen which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.



Specificarion:



Material Stainless steel
Grade 304 316L
O.D 63mm 89mm 117mm 168mm 219mm 273mm 325mm 377mm 426mm
Size 2" 3" 4" 5" 6" 8" 9" 10" 12" 14" 16"
Length 5.8 m / 2.9 m
Solt size 1.0 mm
End connection Welded rings
Wire size 63#  93 #  118#
Support rod 120#  140 #  170#  200#
 Wire shape V shape

Characteristic:

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.



Regular Specification:



SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59





Use:



water well

water supply systems

Refining & petrochemical

Filter equipment

Sand control





Pictures:

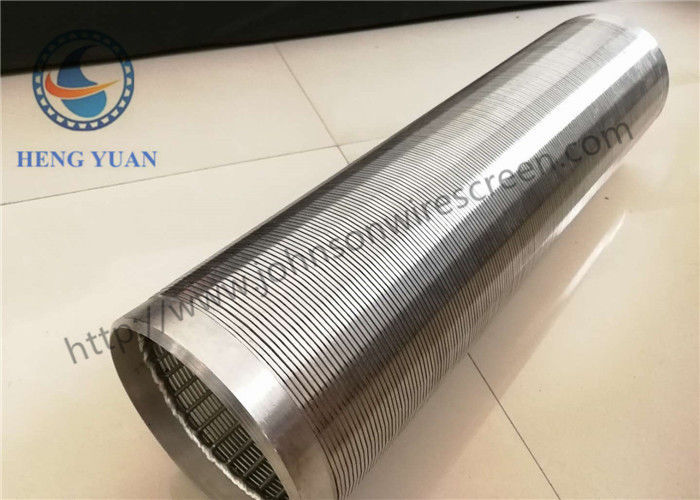

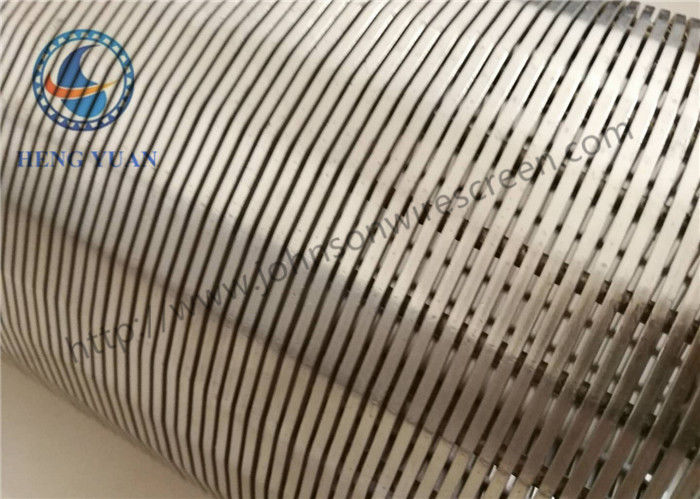

Length 5.8M Stainless Steel Vee Well Casing Pipe Wire Welded Well Pump Screen 0
