Stainless Steel Johnson Water Well Screen Tube / Johnson V Wire Screen

Stainless Steel Johnson Water Well Screen Tube / Johnson V Wire Screen

  • Stainless Steel Johnson Water Well Screen Tube / Johnson V Wire Screen
  • Stainless Steel Johnson Water Well Screen Tube / Johnson V Wire Screen
Stainless Steel Johnson Water Well Screen Tube / Johnson V Wire Screen
Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO9001-2008
Model Number: HY-117
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD 20-200/pc
Packaging Details: wooden boxes or customized
Delivery Time: 7 days or customized
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs /month
Contact Now
Detailed Product Description
Features: Non-clogging ,anti-corrosion Material: Stainless Steel Wedge Wire
Technique: Welding Application: Liquid/gas/soild Filtration
High Light:

johnson screen mesh

,

johnson screen pipe

Stainless Steel Johnson Water Well Screen Tube/Johnson V Wire Screen





V-wire screens are made by welding V-shaped wire on support rods, creating slots which enlarge inwardly, meeting the most demanding standards for ruggedness, durability, consistency and slot openings. The V-shaped opening allows only two contact points with the particles, thus preventing any risk of clogging. Each project is custom designed and engineered to ensure complete satisfaction.

The continuous V-wire slot design allows for lower entrance velocity of the water by reducing encrustation rates. The slot design also resists plugging and prevents sand from damaging pumps and reducing pumping cost. The high open area of the V-Wire well screen allows for water to enter the well freely, resulting in minimal drawdown and less energy usage by a pump. V-Wire technology and welded construction help to prevent well screen failure by better controlling of the sand.
Material stainless steel wire 304,302,304L,316,316L or galvanized steel wire
OD 1 Iinch,3 inch,4 inch,6inch,8 inch,10 inch,12 inch,14 inch,16 inch,18 inch,20 inch
the slot 0.1mm-45mm
the wire 2.0mm*3.0mm ,3.0mm*4.6mm,3.0mm*5.0mm
the rods 3.8mm/22,3.8mm/32,3.8mm/48,3.8mm/50
Styles of connection welding ring,threaded male /female coupling
Standard length 1000mm-5850mm

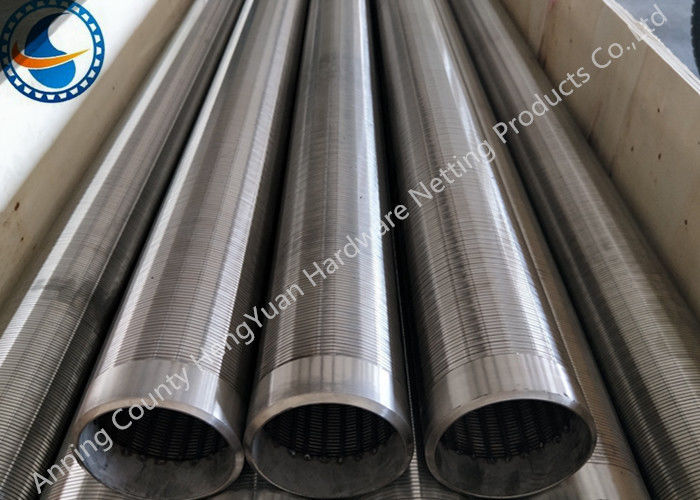

Stainless Steel Johnson Water Well Screen Tube / Johnson V Wire Screen 0

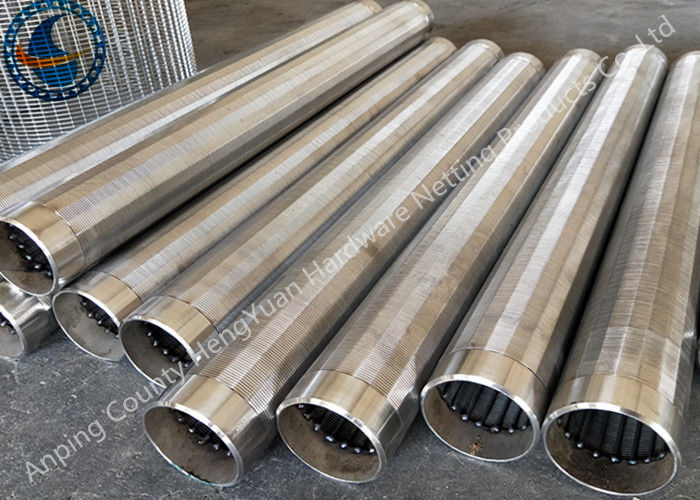

Stainless Steel Johnson Water Well Screen Tube / Johnson V Wire Screen 1



Contact me :hengyuan3@aphywire.com    Skype:cherryhan09

--------------------------------------------------------------------------------------------------------------------------

Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
