Product Description

V Shaped Wire Wrapped Screen Stainless Steel Round Slot Tube 29-1200mm Dia

Product Attributes

Material	stainless steel v wire
Technique	welding
Features	non-clogging, anti-corrosion
Application	filtration

Product Description

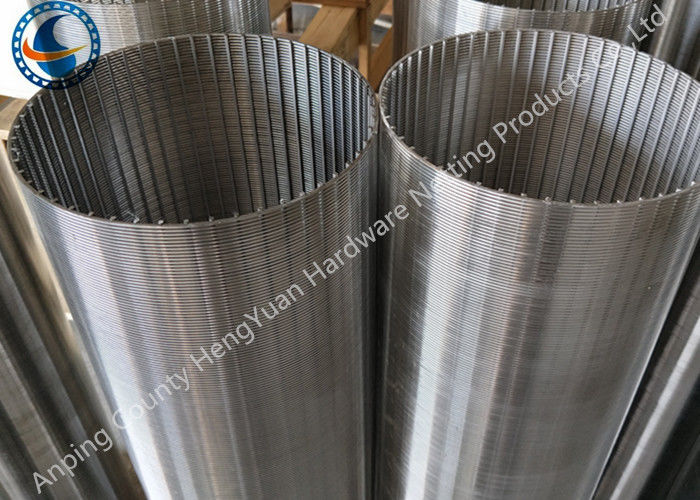

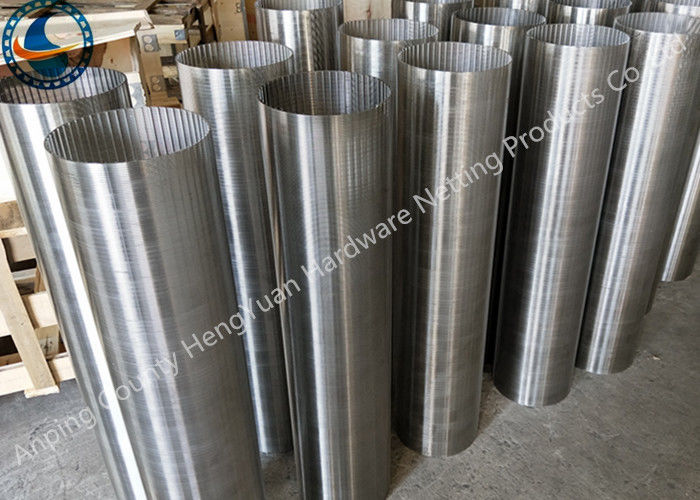

Stainless Steel V Wire Wrap Screen / V Wire Wedge Wire Screen

Wedge wire screen tube, also called round slot tube, is made of stainless steel wire, which is the most popular type because of its outstanding chemical stability and corrosion resistance.

The wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles are placed on the suit position of the machine, while the surface profiles are spirally wound and welded onto the support profiles.

This perfect round type is produced by strict standards, offering better filtering accuracy than common types. Additionally, the perfect round type can be used in the most precise machines to complete arduous filtering tasks.

Specifications

Profile Wire
Width (mm):	1.0, 1.2, 1.5, 2.0, 2.2, 3.0, 3.2
Height (mm):	2.0, 2.5, 3.5, 4.6, 5.0, 6.0

Support Rods
Width (mm):	2.0, 3.0
Height (mm):	3.0, 4.6, 5.0, 6.0, 7.0
Round:	From 2.50mm to 6.0mm
Other wires and rods available upon request

Slot Size	0.10, 0.15, 0.20, 0.25, 0.30...100mm (also achieved upon request)
Material	Stainless steel 304, 304L, 316L, 321 etc.
Length	Up to 4 meters
Diameter	29-1200mm
Screen Ends	Plain beveled ends, male/female threaded, flange, close up
Other sizes available on request

Advantages

Reduce energy consumption and increase water flow
Reduce erosion of entry surfaces and increase well life
Allow a uniform and efficient well development
Reduce significantly potential pump damage and subsequent maintenance costs

Contact: hengyuan3@aphywire.com

Skype: cherryhan09

Our factory: Hengyuan Hardware Netting Industry Product Co., Ltd located in Anping country, Hebei Province, China.

Main products: Stainless steel vee shaped wire/wrap wire, Johnson screen, water well screen/rod based wire wrapped screen, wedge wire screen pipe, reverse wedge wire screen, screen nozzle/water and gas strainer, sieve plate, slot mesh, ARC screen, header and hub laterals & hub radial laterals, pipe base, crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
