Commercial / Residential Water Well Screen Sand Control Wedge Wire Sheets

Commercial / Residential Water Well Screen Sand Control Wedge Wire Sheets

johnson screen mesh

water well screen

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Non-clogging ,anti-corrosion
Product Name:
Commercial/ Residential Water Well Screen
Liquid/gas,solid Filtration
Normal Size:
Up To 5850mm
Product Description

Commercial/ Residential Water Well Screen Sand Control Wedge Wire Screen Pipe



The Screens are threaded with standard iron pipe thread MIPT x MIPT. Using both 3' screens and 5' screens along with our 2" stainless steel pipe couplings, you can come up with an almost unlimited choice of screen setting lengths. In addition, our threaded flush joint change-over will allow you to transition into ASTM F-480 threaded flush joint PVC plastic solid riser pipe for monitoring applications.

The v-wire or wedge wire tapered opening becomes progressively wider toward the interior of the well screen. This produces a non-plugging opening ( unlike mesh construction ) that has only two contact points to retain sand particles, thus increasing efficiency and lowering entrance velocity.


Material stainless steel wire 304,302,304L,316,316L or galvanized steel wire
OD 1 Iinch,3 inch,4 inch,6inch,8 inch,10 inch,12 inch,14 inch,16 inch,18 inch,20 inch
the slot 0.02mm-45mm
the wire 2.0mm*3.0mm ,3.0mm*4.6mm,3.0mm*5.0mm
the rods 3.8mm/22,3.8mm/32,3.8mm/48,3.8mm/50
Styles of connection welding ring,threaded male /female coupling
Standard length 1000mm-5850mm



1. In industrial filtration, solid will be held back in

the smooth surface of the filter tubes forming granular layer and small particles will outflow the V-shaped gap without clogging

2.A continuous slot opening which significantly increases the available open area,thus provide greater access to the water bearing zone.V-shaped profile wire which avoids clogging and ensures an uniterrupted flow.

3.Screen with high open area are more suitable for the construction of high-quality water wells,oilwells and gas wells. With low operation cost and high filter efficiency,screen with high open area shall favor groundwater infiltration.Abundant water shall reduce the water level's down,thus to reduce

energy consumption. Reduce the abrasion of the pump,under the same condition,high open area can make the speed of groundwater's entering into the screen much more slower than any other filtration apparatus, which will avoid sand's entering into screen because of high pressure,thus reduce the abrasion of the pump impeller. Exten the life span of the wells, groundwater's entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall exten the life span of the wells.

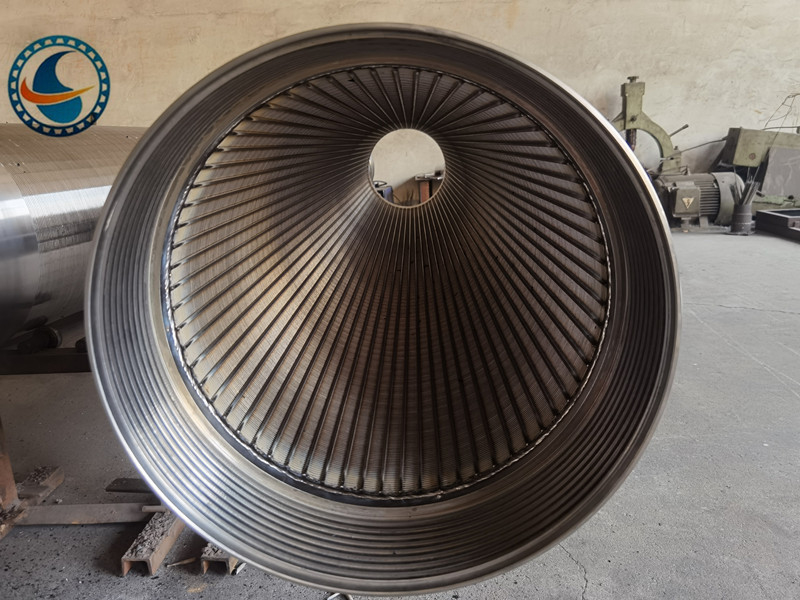

Commercial / Residential Water Well Screen Sand Control Wedge Wire Sheets 0

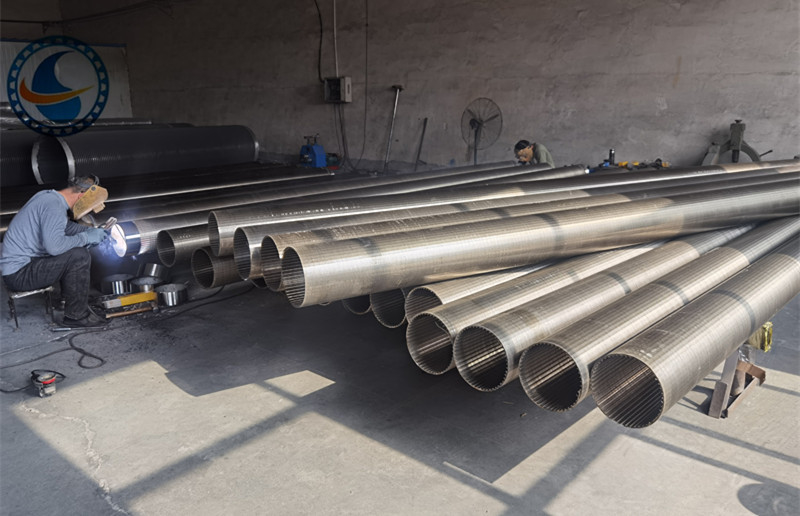

Commercial / Residential Water Well Screen Sand Control Wedge Wire Sheets 1


Contact me Skype:cherryhan09


Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
