Johnson Screen Tube Water Filter Nozzle Strainer Stainless Steel 316L Grade

Johnson Screen Tube Water Filter Nozzle Strainer Stainless Steel 316L Grade

water screen nozzle

wedge wire strainer

Place of Origin:

Hebei,China

Brand Name:

HENG YUAN

Certification:

ISO9000

Model Number:

HY006

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Slot Size:
0.2 Mm
Grade:
316L
Diameter:
57 Mm
Length:
115 - 110mm
Thread Size:
1 1/4"
Product Description

Stainless Steel 316L Grade Johnson Screen Tube Filter Nozzle Strainer


Product Description:


Product Name  Johnson Water Filter Nozzle
Material Stainless Steel
Grade 316L
Slot size 0.2mm
Diameter 57 mm
Screen Lenth 50 - 55 mm
Total Length 200 mm
Thread Size 1 1/4 " , 32 mm
Nutsert 1 PCS, 2 PCS
Gasket 1 PCS steel gasket,1 PCS rubber mat


Characteristic:

Strong and durable, with long service life.
The gap is even, no leakage of resin, no running material.
High opening rate can meet the requirement of large flow.
The structure is varied and meet different design requirements.

OEM service:

Please tell us the specification of the water cap you need and we will help you to process the high quality products.
Custom range
Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
Gap: 0.2-0.25mm, can be according to customer needs.
Type: Female thread, male thread, no thread, long handle, single velocity, double velocity etc.
Length: 50mm, 100mm, 130mm, 150mm, and by customers' request

Use:

The drainage cap purposes Stainless steel water cap is widely used in power plant, petroleum, chemical, pharmaceutical, food industries such as water treatment equipment, water treatment equipment is the key components of water distribution and water device.ABS enhanced water cap series.It is suitable for ion exchange, ion exchange resin and so on.Complete product specifications, including internal thread, external thread, single head, double head, long handle....Water treatment equipment is also used in various forms, such as mechanical filtration equipment, zwitterion exchange resin, floating bed, double room bed, mixing bed and gravity filter.


Regular Specifications:


Type Slot size Specifications Flow filter area
0.2mm slot ( reference)
D H L M
HY45-11-A 0.2-0.5 45 30 150 M20 330
HY45-11-B 0.2-0.5 45 40 160 M24 400
HY53-12-A 0.2-0.5 53 40 170 M24 510
HY53-12-B 0.2-0.5 53 50 180 M32 640
HY57-13-A 0.2-0.5 58 40 190 M32 630
HY57-13-B 0.2-0.5 58 50 200 M32 780

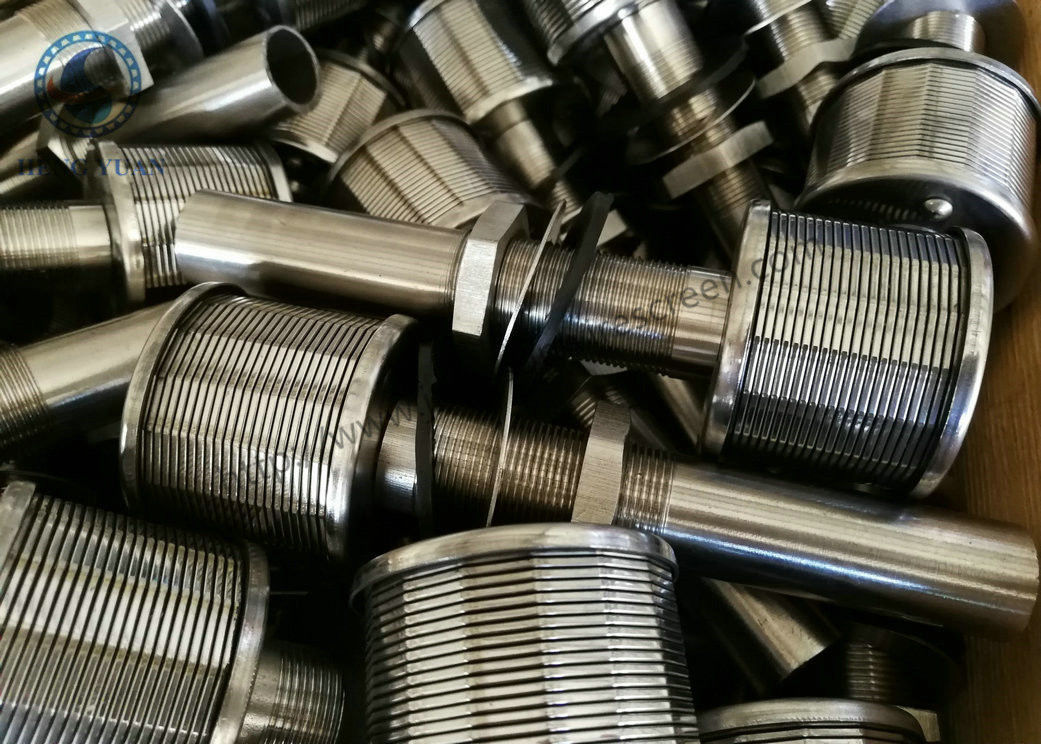

Johnson Screen Tube Water Filter Nozzle Strainer Stainless Steel 316L Grade 0

Johnson Screen Tube Water Filter Nozzle Strainer Stainless Steel 316L Grade 1
Johnson Screen Tube Water Filter Nozzle Strainer Stainless Steel 316L Grade 2
