High Precision Wedge Wire Screen Panels Filter Grate 1219 Length 0.5mm Slot Size

High Precision Wedge Wire Screen Panels Filter Grate 1219 Length 0.5mm Slot Size

wedge wire filter elements

vibrating screen panels

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY004

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Grade:
304
Slot Size:
0.5mm
Length:
1219 Mm
Width:
486
Product Description

Wire Wrap Wedge Wire Screen Filter Grate 1219 Length Use In Coal Washer







Product Description:

Wire Wrap Wedge Wire Screen Filter Grate 1219 Length Use In Coal Washer is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire ,a triangular wire,  rectangle or a trapezoidal wire. There is a certain distance between each support bar too . The filter surface is smooth, the gap is uniform, and it is not easy to block.

We can weld the frame around the bottom or bottom of the net. The frame can be flat steel, angle steel, channel steel, or other shapes, all of which can be produced according to customer requirements.



Specification:


Material Stainless steel
Grade 304
 Dimension 1219mm*486mm, request
Slot Size 0.5 mm,request
Width  486mm, up tp 3000mm
Length  1219mm, up to 4430mm
Type  screen plate
Wire size 2.5*4.8 mm
Support rod 1.8*25 mm
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

                    Length up to 4430mm

SIZES OF THE WIRE AND ROD
WIRE SHAPE V V V V V V
Width(mm) 1.0 1.2 1.5 2.0 2.2 3.0
Height(mm) 2.0 2.0 2.0 3.5 4.5 4.6
ROD SHAPE V V V V V O
Width(mm) 2.0 2.2 3.0 3.0 3.2 Diameter
Height(mm) 3.0 4.5 4.6 5.0 6.0 3.0~3.8



Advantages:



Stainless steel V Wire Welded Screen Slot Size 1mm Use for Coal Industry have many advantages as below:

V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.
Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.
Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.
Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.





Industry:



Professional Satinless Steel Welded Screen Use For Coal Washer can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.

  1.  mining machinery: used for desilting and dewatering of coal preparation plants, coal whasher.
  2.  wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
  3.  beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
  4.  food industry: the filtration process can be used for food and beverage.
  5.  aquaculture: used for farming, cleaning up waste residues from animals.
  6.  chemical industry and other: sewage treatment for sugar mills and paper mills; Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant; Starch filtration in the food factory; Ventilation for grain storage.



Pictures:

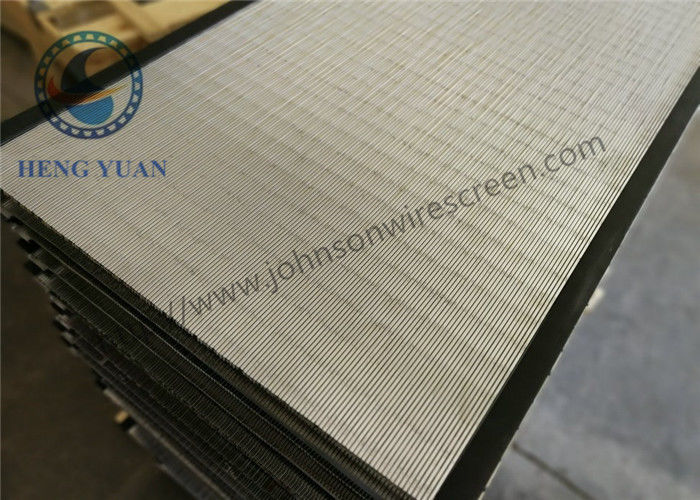

High Precision Wedge Wire Screen Panels Filter Grate 1219 Length 0.5mm Slot Size 0High Precision Wedge Wire Screen Panels Filter Grate 1219 Length 0.5mm Slot Size 1
