Stainless Steel 316 Johnson Screen Rotary Wire Strainer Basket High Efficient

Stainless Steel 316 Johnson Screen Rotary Wire Strainer Basket High Efficient

rotary sand screen

wire cylinder basket

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY0010

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel
Grade:
316L
Slot Size:
0.5mm
Diameter:
500 Mm
Length:
1000mm
End Connection:
Welded Rings
Package:
Woden Box,Container
Product Description

Stainless Steel 316 Johnson Screen Rotary Wire Strainer Basket High Efficient



Product Description:



Reverse Wedge wire screen cylinder is made by Johnson screen mesh through reverse welding . Johnson screen mesh is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The finished reverse wedge wire screen cylinder have a smooth inside.The filter screen cylinder has a number of longitudinal and horizontal ribs on the outside, greatly enhancing the anti-crushing strength of the sieve cylinder, especially suitable for sieving cylinder with rotating blades inside the extruder.



.

Specification:


Material Stainless steel
Grade 316L
 I.D 150-1000 mm, 500 MM
Slot Size 0.1 - 30 mm,  0.5 mm
Components Reinforcing plate
Length 300-3000mm, 1.2m,
Filter type  From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

I.D.: 150 - 1000 MM

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 300mm-3000mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Filter Type: from inside to outside.

Other components : Flange, stiffener, lifting handle, and other type components by request.



Special specification can be made according to your need.



Advantages:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel have the high corrosion resistance

Easy to backwash, clean without dead Angle.

Filter from inside to outside , and the outside slot is bigger than inside slot, so it is easy to bakc flush.

Built-in scraper, brush, suction first class cleaning device.

The special





Industry:





Pictures:

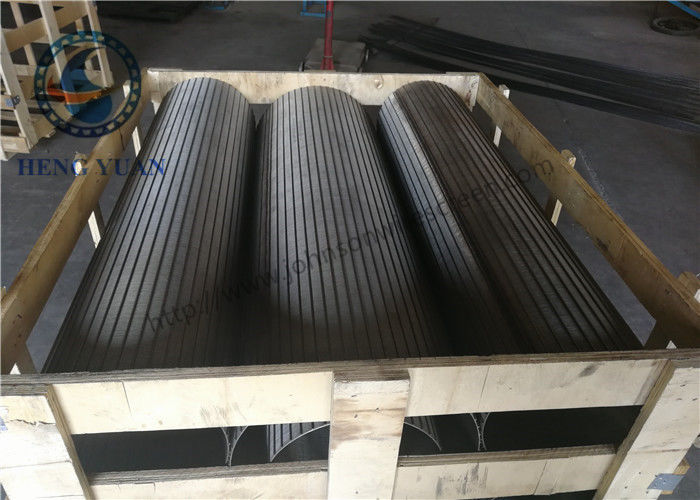

Stainless Steel 316 Johnson Screen Rotary Wire Strainer Basket High Efficient 0

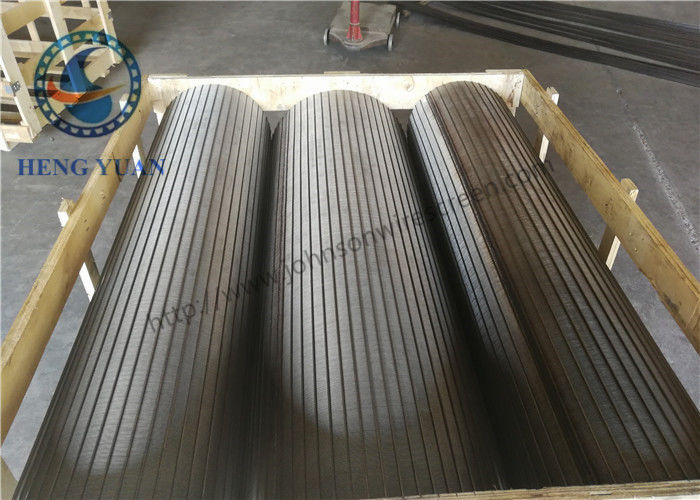

Stainless Steel 316 Johnson Screen Rotary Wire Strainer Basket High Efficient 1
