High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot

High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot

  • High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot
  • High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot
High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot
Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000,SGS,CIQ,CE
Model Number: HY004
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,110 pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Contact Now
Detailed Product Description
Material: Stainless Steel 304 Slot Size: 0.25mm
Diameter: 32-1027 Mm Length: 1000-6000 Mm
End Connection: Welded Rings/thread Couplings / Flange/None Package: Wooden Box
Usage: Liquid Filter,filtration Slot Shape: V Shaope
Wire Size: 63# Support Rod: 93#
High Light:

0.25mm slot johnson wire screen

,

ss 304 johnson wire screen

,

high filtration vee wire filter screen

Higher Filtration V-shaped Slot Johnson Type Wrapped Screen Tube

Product Description:

Higher Filtration V-shaped Slot Johnson Type Wrapped Screen Tube is made of V-shape profile wire and longitudinal support rods,make the adjacent wire forming has a fixed value slot tubular body. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property.
The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction
filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements.
What's more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements

Specification:

Higher Filtration V-shaped Slot Johnson Type Wrapped Screen Tube



Material Stainless steel
Grade 316L
O.D 219 mm
Size 8"
Slot size 0.25 MM
Length 100-6000mm
End connection Welded rings / Flange
Wire size 1.5*2.5
Support rod 2.2*3.5
Wire shape V shape


Product advantage:



1, higher filtration accuracy: because the wire sieve adopts v-shaped large opening design, so that the filtration accuracy area is more precise, better play a sand control

The role of.

2, excellent overall strength and deformation resistance: the internal support by the base pipe, according to the need to increase the external protection sleeve to strengthen the protection, drilling base pipe

The overall strength is only 2 to 3% lower than standard casing/tubing, providing sufficient overall strength to withstand formation compression and deformation. Even if locally deformed

When, the gap of the compression part does not increase, and the sand control reliability is high.

3, more choices: the outer screen material can be stainless steel or low carbon steel, according to the actual needs of users to choose their own material.

4, high density gap, low flow resistance gap density is 3 ~ 5 times of ordinary slotted screen, low flow resistance, is conducive to improve oil and gas production.

Application:

It can be used for filtration and screening of various media, and is widely used in screening, filtration, dehydration, mud removal and other operations in many industries.
* Mining machinery: used for desilting and dewatering coal preparation in coal preparation plants.
* Malt machinery: it is suitable for the use of the milling machine, flossing machine and drying oven in malt plant.
* Beer machinery: suitable for use in the filter tank of brewery, with the advantages of high opening rate and long service life.
* Environmental protection: it is used for filling oil, gas and water Wells with sand and stone. It can protect underground and ground equipment from sand.It has the advantages of high opening rate, large filtration area, fast filtration speed and long service life.
* Chemical industry and others: used for waste water treatment in sugar mills and paper mills;Material filtration, dewaterting and supporting use of various paint rooms in chemical fertilizer plant;Starch filtration in food plants;Ventilation for food storage.

Pictures:

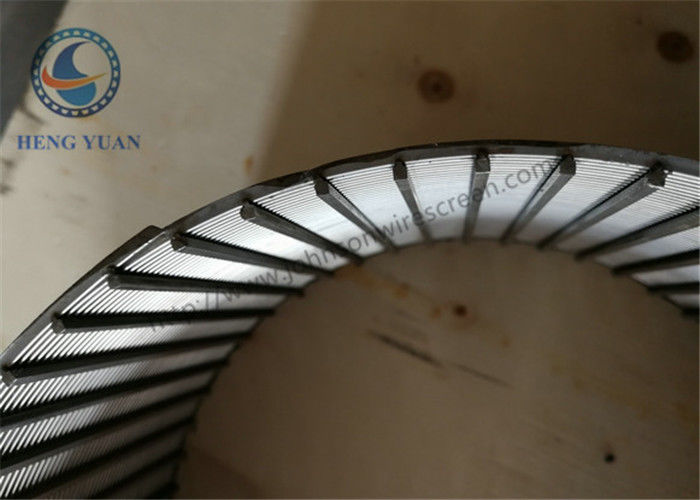

High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot 0



 High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot 1High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot 2High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot 3

High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot 4


Package:

High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot 5
High Filtration Ss 304 Johnson Wire Screen V Shaped 0.25mm Slot 6
