Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel

Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel

  • Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel
  • Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel
  • Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel
  • Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel
Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel
Product Details:
Place of Origin: Hengshui City,Hebei Procince,China
Brand Name: HengYuan
Certification: ISO,CIQ, FORM E,CO etc
Model Number: HY022401
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: Negotiated price
Packaging Details: wooden boxes,container
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs /week
Contact Now
Detailed Product Description
Features: Non-clogging Name: Johnson Wire Screen
Material: Stainless Steel Diameter: 273mm
ID: 10" Length: 3000mm
Slot: 1.5mm Wire: 3*5mm Vee Wire
Support Rod: ø4.2mm Round Wire Ends: Bevel Welded Rings
Technique: Point Welding Package: Air Bubble Film In Container
Applicable Industries: Well Drilling Machinery Test Report: Provided
Usage: In Water Well For Sand Control Feature: Long Service Life
High Light:

diameter 10" johnson screen pipe

,

non magnetic stainless johnson screen pipe

,

non magnetic steel johnson wire screen



Diameter 10" Non-Magnetic Stainless Steel Johnson Wire Screen



Johnson  wire screens(Johnson Type Water Well Screens) are manufactured by VEE or the wedge shaped wire around an internal array of longitudinal support rods. The word advanced all-weld technology is used with the each intersecting point of these wire fusion welded, which creates robust construction and excellent mechanical performance. The VEE or wedge shaped profile wire wraps around support rods over full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well. The slots can be changed according to different strata.





Johnson Wire Screen Sizes:



Diameters:10-3/4", Also can make 4-1/2",  6-5/8",  8-5/8",  12-3/4", 14", 16" etc.

Slot size (mm):0.25mm 0.5mm 0.63mm,  0.75mm,  1.0mm,  1.5mm,also achieved upon customer request.
Open area up to 60%.
Material : Low Carbon ,Low Carbon Galvanized steel (LCG),Stainless Steel( 304,etc.)
Length: up to 6 meters. We suggest 2.9m and 5.8m to fit 20GP, and 3m/ 6m to fit 40HC container.
End Connection:Plain beveled ends for butt welding, male/female threaded,Flange etc.





Johnson Wire Screen Normal Sizes:



SIZE
(Inch)
O.D
(mm)
SLOT
(Inch)
LENGTH
(M)
Collapse Strength
(PSI)
Tensile Weight
(ton)
Wire size
(mm)
Support RODS (mm)
4-1/2 114.3 0.040 3 395 6 2.2*3.5 3.8mm/22
4-1/2 114.3 0.040 3 395 6 2.3*3.5 3.8mm/22
6-5/8 168.3 0.040 3 252 8 2.3*3.5 3.8mm/32
8-5/8 219.1 0.010 3 399 10.5 3.0*4.6 3.8mm/48
8-5/8 219.1 0.020 3 370 10.5 3.0*4.6 3.8mm/48
8-5/8 219.1 0.040 3 323 10.5 3.0*5.0 3.8mm/48
10-3/4 273.1 0.010 3 206 11 3.0*5.0 3.8mm/55
10-3/4 273.1 0.020 3 191 11 3.0*5.0 3.8mm/55
10-3/4 273.1 0.040 3 167 11 3.0*5.0

3.8mm/55





Johnson Wire Screen Advantages:



1. Non-clogging construction: The Hot-selling and high-quality water well screens made in China creates the continuous slot, which can avoid blockage and make sure of the unimpeded water



2.Large filtering area: The Hot-selling and high-quality water well screens made in China have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well



3.Long service life: The Hot-selling and high-quality water well screens made in China have longer and more robust service time



4.Excellent construction strength: The Hot-selling and high-quality water well screens made in China have more excellent pressure-resistant performance



5.Note: Specifications and end connections of wedge wire screens (Johnson type screens) can be fabricated according to customers’ requirements.

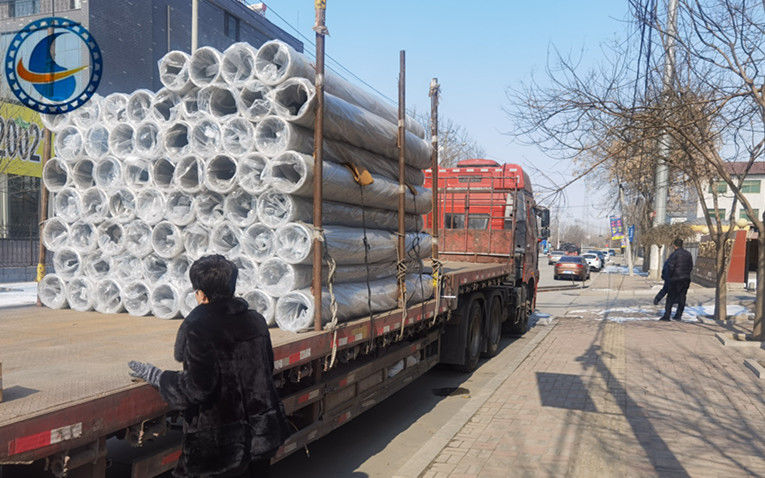

Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel 0Diameter 10" Johnson Screen Pipe Non Magnetic Stainless Steel 1
