Place of Origin:
Hengshui City,Hebei Procince,China
Brand Name:
HengYuan
Certification:
ISO,CIQ, FORM E,CO etc
Model Number:
HY022404
Contact Us

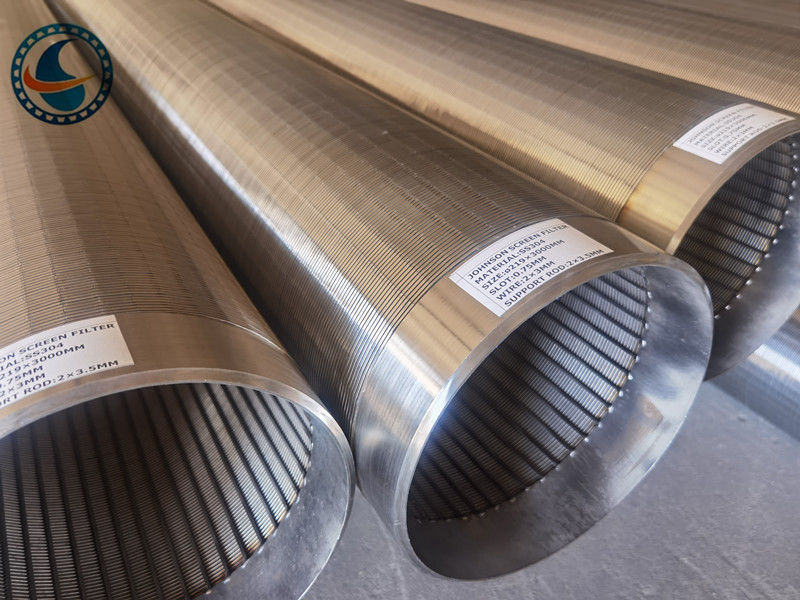

Johnson Continuous Slot Water wire screens, also called water well screen, Vee wire well screens, Wedge wire screen, are made of V or wedge shaped wires around an internal array of longitudinal support rods. It is designed to serve as the intake portion of wells constructed in unconsolidated or semi-consolidated aquifers. This design supplies a continuous slot openings, which allows water to enter the well freely in ample quantities and keeps the majority of sand and gravels out of the well at the same time.
| SIZE (Inch) |
O.D (mm) |
SLOT (Inch) |
LENGTH (M) |
Collapse Strength (PSI) |
Tensile Weight (ton) |
Wire size (mm) |
Support RODS (mm) |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.5 | 3.8mm/22 |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.5 | 3.8mm/22 |
| 6-5/8 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8-5/8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10-3/4 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 |
3.8mm/55 |
