Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia

Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia

  • Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia
  • Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia
  • Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia
  • Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia
Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia
Product Details:
Place of Origin: Hengshui City,Hebe Provincei,China
Brand Name: HengYuan
Certification: ISO,CO,FORM E,CIQ, etc
Model Number: HY022703
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiated price
Packaging Details: wooden box
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs /month
Contact Now
Detailed Product Description
Features: Non-clogging Name: Johnson Continuous Slot Profile Wire Screen
Material: Stainless Steel Diameter: 63mm
Length: 1000mm Slot: 0.02mm
Wire: 1*2mm Vee Wire Support Rod: 2*3mm Vee Wire
Ends: Nothing (open Ends) Technique: Point Welding
Application: Filteration Package: Wooden Box
Business Type: Manufacturer Filter Type: From Outside To Inside
High Light:

continuous slot wedge wire mesh

,

63mm dia wedge wire mesh

,

63mm dia johnson wire screen



Stainless Steel Johnson Continuous Slot Profile Wire Screen





Wedge Wire Filter Screen Size information:



Material : Stainless steel wire.Such as: SS304, SS201, SS316L etc.

Diameter : 25-1300 mm ,can make as customers request.

Slot: 0.02-10mm

Length :10-4000mm

End connection:male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Filter type:From outside to inside.  also can make other type:From inside to outside.

Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 1.5*2.5mm, 2*3mm, 2*3.5mm, 2*4mm, 3*4.6mm, 3*5mm etc.

Support rod: 2*3mm, 3*4.6mm, 3*5mm etc.





Johnson Continuous Slot Profile Wire Screen​ Advantages:



1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.

2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.

3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.

4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)

5. Long live: Welded at each intersection creating a strong and durable screen.

6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.

7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.







The constructions of Johnson Continuous Slot Profile Wire Screen :


1.Standard construction: The flow goes from outward to inside. Vertical rod support.
2.Axial wire construction: The water or liquid flows from outside to inside. Horizontal rod support.
3. Internal circumferential wire construction: The flow goes from inside to outside of the wedge wire screen.
4.Inverwire construction. From inside to outside. Reverse flow.​

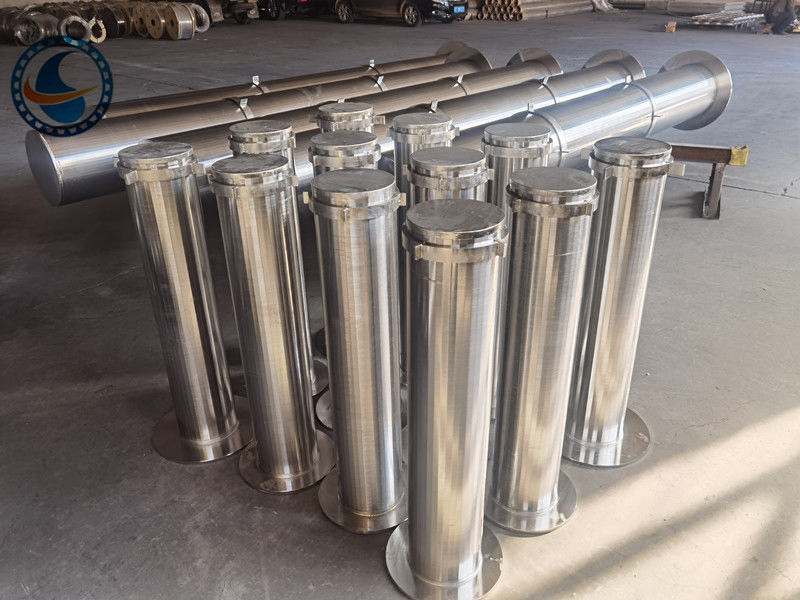

Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia 0

Johnson Continuous Slot Wedge Wire Mesh Profile Screen Stainless Steel 63mm Dia 1
