Name: Stainless Steel Vee Profile Wedge Wire Mesh Pipe Well Screen For Water
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY022701
Price: 155.00 USD
Availability: InStock

Home > PRODUCTS > Wedge Wire Mesh >

Stainless Steel Vee Profile Wedge Wire Mesh Pipe Well Screen For Water

vee profile wedge wire mesh

wedge wire mesh pipe well screen

water wedge wire filter screen

Place of Origin:

Hengshui City,Hebe Provincei,China

Brand Name:

HengYuan

Certification:

ISO,CO,FORM E,CIQ, etc

Model Number:

HY022701

Request A Quote

Product Details

Features:

Non-clogging

Name:

Vee Profile Wedge Wire Pipe Well Screen

Material:

Stainless Steel 316L

Diameter:

325mm

Length:

3000mm

Slot:

0.25mm

Wire:

1*2mm Vee Wire

Support Rod:

2*3mm Vee Wire

Ends:

Nothing (open Ends)

Technique:

Point Welding

Application:

Filteration

Package:

Wooden Box

Business Type:

Manufacturer

Filter Type:

From Outside To Inside

Ss 304 Coutinuous Slot Wedge Screen Filter Wastewater Treatment

Get Best Price

Video

SS304 Vee Wire Wedge Wire Screen Non Clogging Long Lasting Performance

Get Best Price

Video

Enhanced Filtration V Wire Screen Filter With Precise Slot 100 Micron

Get Best Price

Video

Stainless Steel 304 Wedge Wire Mesh With Continuous Slots

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

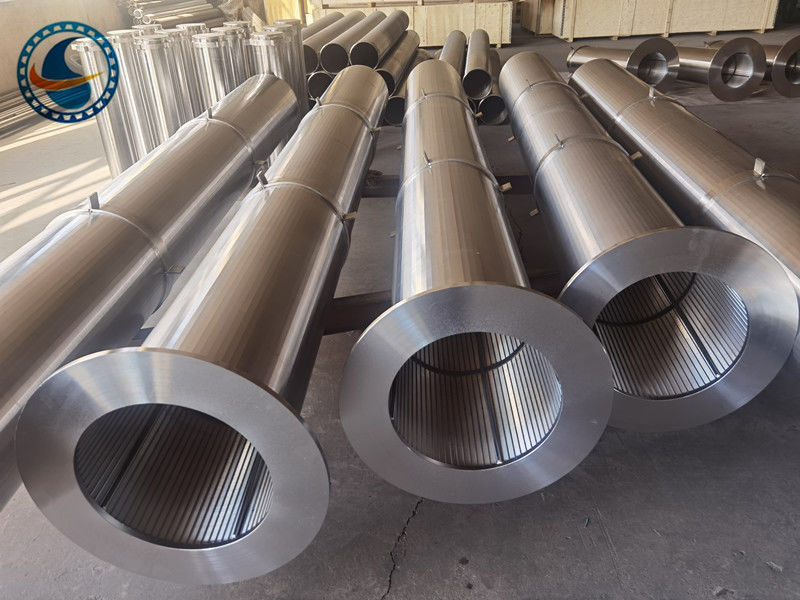

Stainless Steel Vee Profile Wedge Wire Mesh Pipe Well Screen For Water

Product Specifications

Attribute	Value
Name	Vee Profile Wedge Wire Pipe Well Screen
Material	Stainless steel 316L
Diameter	325mm
Length	3000mm
Slot	0.25mm
Wire	1*2mm Vee wire
Support rod	2*3mm Vee wire
Ends	Nothing (open ends)
Technique	Point welding
Features	Non-clogging
Application	Filteration
Package	Wooden box
Business type	Manufacturer
Filter type	From outside to inside

Product Description

Stainless Steel Vee Profile Wedge Wire Pipe Well Screen is a kind of filtered water tubing with the perforation, it can use with the deep well pump, water diving pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Size Information

Material: Stainless steel wire (SS304, SS201, SS316L etc.)

Diameter: 25-1300 mm (custom sizes available)

Slot: 0.02-10mm

Length: 10-4000mm

End connection: Male/female threaded couplings, plain beveled welded ring ends, flange, closed, same slot sieve plate

Filter type: From outside to inside (other types available)

Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 1.5*2.5mm, 2*3mm, 2*3.5mm, 2*4mm, 3*4.6mm, 3*5mm etc.

Support rod: 2*3mm, 3*4.6mm, 3*5mm etc.

Specification (wedge wire):	Width(mm): 1.0, 1.2, 1.5, 2.0, 2.2, 3.0 Height(mm): 2.0, 3.0, 3.5, 4.6, 5.0, 6.0
Specification (support rod):	Width(mm): 2.0, 3.0 Height(mm): 3.0, 4.6, 5.0, 6.0 Round wire: From 2.50mm to 6.0mm
Slot size:	0.10, 0.15, 0.20, 0.25, 0.30...6.00mm (custom sizes available)
Material:	Stainless steel (304,316 etc.)
Length:	Up to 6 meters
Diameter:	From 25mm to 1200mm

Note: Other specifications available as per request

Applications

Used in primary filters with large difference of flow and pressure in various water treatment fields, including Boiler water, petrochemical water, paper water, ship ballast water.
Can be used as pre-coated candles wedge wire screen (vertical filtration elements, beer candles) for the clarification Kieselguhr alluvial filters /Candle Precoat Filters of beer.
