Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter

Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter

  • Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter
  • Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter
Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter
Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000,SGS,CIQ,CE
Model Number: HY004
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,110 pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Contact Now
Detailed Product Description
Material: Stainless Steel 316L 304 321 2205 2507 Slot Size: 0.05-30 Mm Can Be Made
End Connection: Welded Rings/thread Couplings/flange Usage: Liquid Filter,filtration
Filter Rating: Up To 70% Packing: Wooden Cases
Length: Can Be Customized For You Feature: Filter
High Light:

johnson wire screen stainless steel 304

,

wedge slot johnson wire screen

,

filter johnson wedge wire screens

Stainless steel 304 Wedge Wire Slot Shap Johnson Type FOTI filter screen

Product Description:

Stainless Steel Johnson Water Well Wound-Screen For Sand Control is made of V-shape profile wire and longitudinal support rods,make the adjacent wire forming has a fixed value slot tubular body. Each intersecting point of these wires is fusion welded which makes it has sturdy construction and good mechanical property.
The profile wire and support rod can be axial wire or radial wire. It mainly includes internal filtration, external direction
filtration. According to the different usage, we can design the flow direction and shape to meet the application requirements.
What's more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements



Screen Features:


1. The product can be customized with different specifications and raw materials (mainly stainless steel and carbon steel) according to the actual needs of customers, so as to ensure reasonable investment and save production costs.
2. Screen joints can also be made according to different needs. Packaging can be made according to customer needs.
3. Non-stainless steel products can be protected by galvanizing treatment. Beautiful and clean appearance.
4. High-precision filtration, stable effluent quality, applicable to different raw water quality and water requirements.
5. This product is widely used in power station equipment, petroleum, pharmaceutical and chemical industry, coal, metallurgy, papermaking, food and beverage, beer production, environmental protection and other industries to filter and support industrial water treatment such as make-up water and condensate water.
6. The various advantageous properties of this product improve the working efficiency and service cycle of the filter, making this product a leader in water filtration equipment.



Regular Specifications:

SIZE
(INCH)

O.D
(MM)

SLOT
(MM)

LENGTH
(M)

COLLAPSE
STRENGTH
(BAR)

TENSILE
WEIGHT
(TON)

WRAP WIRE(WIDTH*HEIGHT)
(MM)

RODS
(MM)

3-1/2

88.9

1.0

3

>22

10.2

2.3*3.5

3.8MM/22

4-1/2

114.3

1.0

3

>28

11.5

2.3*3.5

3.8MM/22

6-5/8

168.3

0.75

5.8

>40

12.8

2.3*3.5

3.8MM/32

6-5/8

168.3

1.0

5.8

>33

12.8

2.3*3.5

3.8MM/32

6-5/8

168.3

0.63

5.8

>83

45

3.2*6.0

6.0MM*32

8-5/8

219.1

1.0

5.8

>34

21.9

2.3*3.5

3.8MM/48

8-5/8

219.1

1.0

5.8

>50

38.2

3.0*5.0

4.0MM/48

8-5/8

219.1

1.0

5.8

>60

46

3.2*6.0

5.0MM/48

10-3/4

273.1

0.75

5.8

>50

32.9

2.3*3.5

4.9MM/55

10-3/4

273.1

1.0

5.8

>60

39.5

3.0*5.0

4.9MM/55

10-3/4

273.1

1.0

5.8

>100

48

3.2*6.0

5.0MM/55

12-3/4

323.9

1.0

5.8

>120

37.2

3.0*5.0

4.0MM/50

14

355.6

1.0

3

>80

37.8

3.0*5.0

4.0MM/59



Scope of application:


Resin: It is used in the water inlet device of the ion exchanger, the water accumulation device and the resin trap to prevent the broken resin from entering the next production system. Of course, it can also capture the leakage of a large amount of resin in the state of the exchanger accident. The traps manufactured in the past Often when a large amount of resin leaks and the pressure difference between the inlet and outlet of the trap is often increased, it is crushed due to instability. All resin traps are now equipped with perforated liners plus stainless steel wire-wound screens, greatly improving the reliability of equipment operation.


Beer and other alcohol filtration: The candle filter element in the candle type diatomite filter is coated with diatomite. After use, the energy can be saved by 92%, the wine loss can be reduced by 90%, the equipment cost can be saved by 2/3, and the production workers can be reduced by 3 /4 The wine and beverages filtered with diatomaceous earth have the same flavor, non-toxic, no suspended solids, no sediment, clear and transparent, high filtration, small footprint, light and flexible, and easy to move


Iron and steel: used for water treatment and filtration in raw material yards and sintering pelletizing plants, cooling water filtration in blast furnaces, rolling mills, continuous casting machines and other systems, and impurity filtration in high-pressure water phosphorus removal systems
Automobile: coating production line, widely used in automobiles, tractors, motorcycles, engine manufacturing water, and treatment systems


Power plant: used for the precision pretreatment part of the high-purity water preparation of the power plant boiler, the filtration of the cooling water and the sealing water of the generator, and can be used as a side filter when the system 13-4 water consumption is very large.


Petrochemical industry: do side filter treatment in the circulating water field, which can be used for single or multi-model parallel main treatment, instead of filter material filtration, reduce filter material filtration load, avoid a lot of washing water consumption, and save costs


Agricultural gardens and paper mills: In systems with sprinklers and nozzles, equipment blockage and wear caused by impurities should be reduced. Therefore, it is necessary to select high-precision, high-automation filtering products for machinery, food or other: automatic and high-precision filtering for the system, Used to prevent blockage of cooling water system


Mine: filter the underground spray water to ensure the normal operation of the system.


Water supply and sewage treatment: used in pretreatment system to improve system operation efficiency


Food and beverage: used for solid and liquid separation, initial consideration, to achieve hygienic safety in the process of food and beverage production


Widely used in drinking water treatment, construction circulating water treatment, industrial circulating water treatment, sewage treatment, mining water treatment, golf course water treatment, construction, steel, petroleum, chemical, electronics, power generation, textile, paper, food, sugar , pharmaceuticals, plastics, automotive industries and other fields.

Pictures:

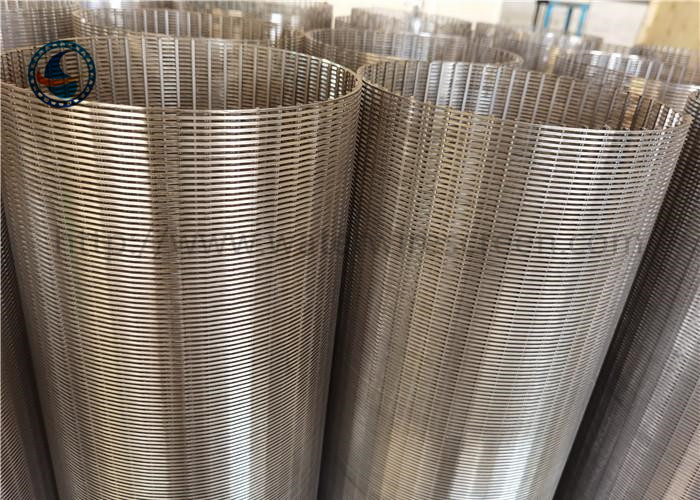

Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter 0

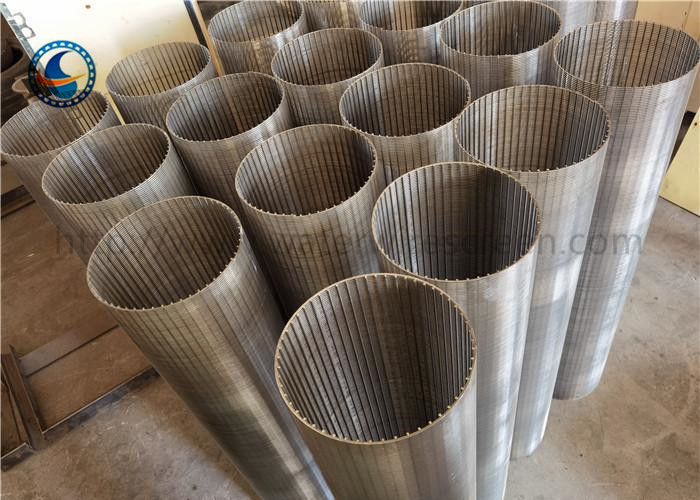

Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter 1

Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter 2Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter 3Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter 4
Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter 5


Package:

Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter 6
Stainless Steel 304 Johnson Wire Screen Wedge Slot Shape Type For Filter 7
