Non Magnetic Stainless Steel Water Well Screen Continuous Slot For Sand Control

Non Magnetic Stainless Steel Water Well Screen Continuous Slot For Sand Control
Non Magnetic Stainless Steel Water Well Screen Continuous Slot For Sand Control Non Magnetic Stainless Steel Water Well Screen Continuous Slot For Sand Control Non Magnetic Stainless Steel Water Well Screen Continuous Slot For Sand Control Non Magnetic Stainless Steel Water Well Screen Continuous Slot For Sand Control

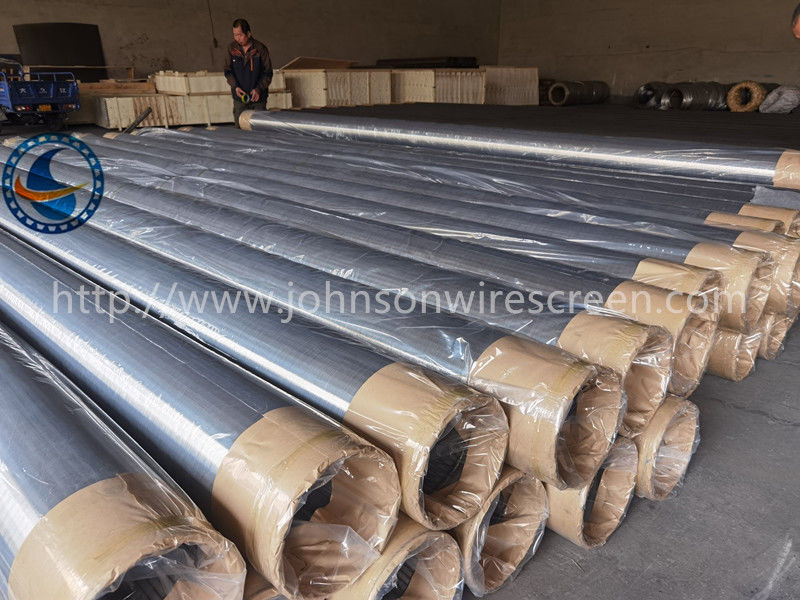

Large Image :  Non Magnetic Stainless Steel Water Well Screen Continuous Slot For Sand Control

Product Details:
Place of Origin: Hengshui,Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: 10-3/4"
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Plastic film
Delivery Time: 10 work days
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Name: Water Well Screen Material: Non-magnetic Stainless Steel
Diameter: 273mm Length: 5850mm
Slot Size: 0.2 Mm Wrap Wire: 2.2×4.5mm
Support Rod: ø5.0mm NO. Of Rod: 55NOS
End Connection: Welded Rings Weight: 170KG/piece
Package: Plastic Film Use: In Water Wells For Sand Control
High Light:

non magnetic ss water well screen

,

continuous slot water well screen

,

sand control wedge wire screen tube



Non-magnetic Stainless Steel Continuous Slot Water Well Screen





Continuous Slot Water Well Screen Information:





Commonly referred to as continuous slot water well screen or wire wrap screen, These wells were typically completed in relatively shallow, thin aquifers that were very prolific in terms of water production. Continuous slot water well screens are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize frictional head loss.

Continuous slot water well screen is manufactured by wrapping a shaped wire around an internal array of longitudinal rods and are joined by resistance welding. Screen sections are usually twenty feet long. Most continuous slot water well screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often lead to accelerated corrosion.





Continuous Slot Water Well Screen Regular Specifications:





Name:Continuous Slot Water Well Screen, Johnson screen,Water wire screen,Wire warp screen,

Wedge wire screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,

Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.

Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:2*3.5mm,2.2*3.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)

3-1/2 88.9 1.0 2.9 >22 10.2 2.0*3.5(Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 >28 11.5 2.0*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 >40 12.8 2.0*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 >33 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 0.63 5.8 >83 45 3.0*6.0(Width*height) ø6.0MM×32
8-5/8 219.1 1.0 5.8 >34 21.9 2.2*3.5(Width*height) ø3.8MM×48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*4.6(Width*height) ø4.0MM×48
8-5/8 219.1 1.0 5.8 >60 46 3.0*6.0(Width*height) ø5.0MM×48
10-3/4 273.1 0.75 5.8 >50 32.9 2.2*3.5(Width*height) ø4.0MM×55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*4.6(Width*height) ø4.8MM×55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0(Width*height) ø5.0MM×55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0(Width*height) ø4.0MM×56
14 355.6 1.0 2.9 >80 37.8 3.0*5.5(Width*height) ø4.0MM×59
16 426 1.0 2.9 >80 37.5 3.0*5.5(Width*height) ø4.0MM×64




Special specification can be made according to your need !





Technical Support and Design Assistance



  • Sand analysis of formation materials
  • Screen size recommendations
  • Screen installation suggestions
  • Well construction consultation
  •

Our technical staff includes expert design engineers, welders, technical support personnel, and sales engineers who are familiar with all aspects of manufacturing and deployment of downhole screens for different applications.
