Place of Origin:
Hengshui City,Hebei Provincei,China
Brand Name:
HengYuan
Certification:
ISO,CO,FORM E,CIQ, etc
Model Number:
HY072605
Contact Us

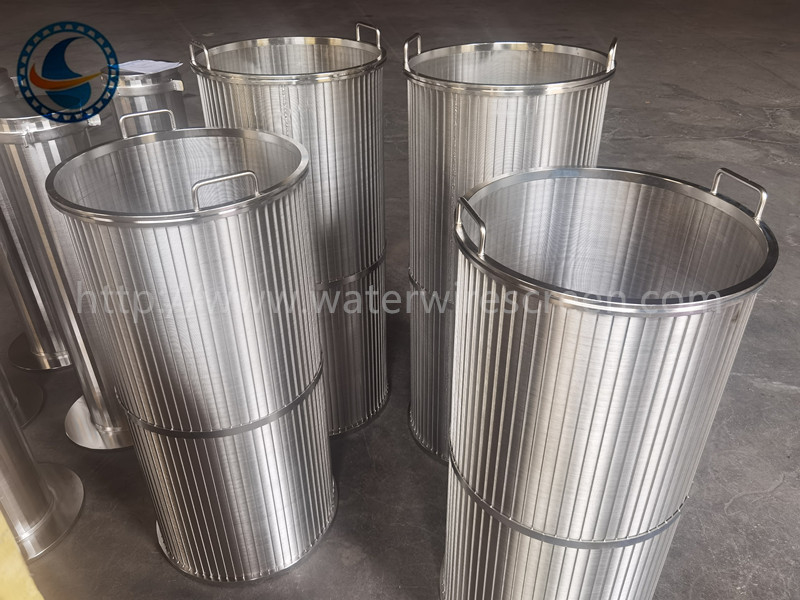

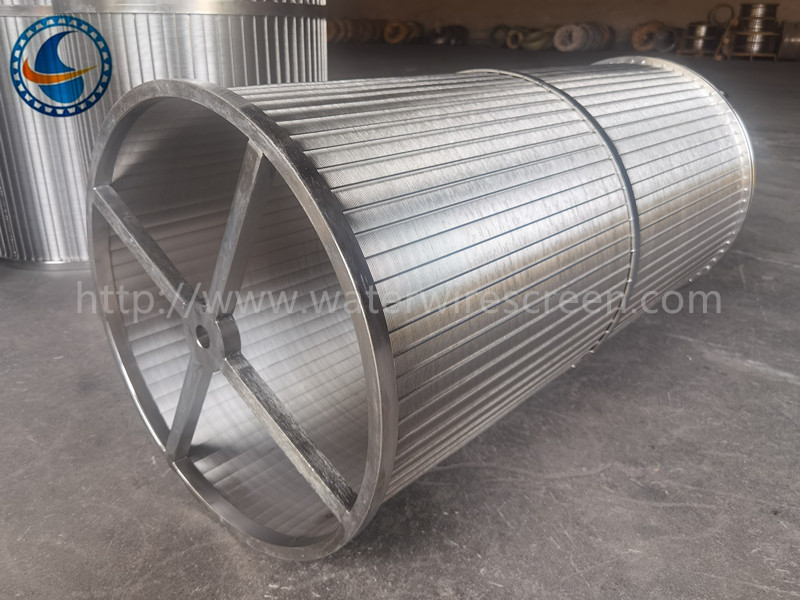

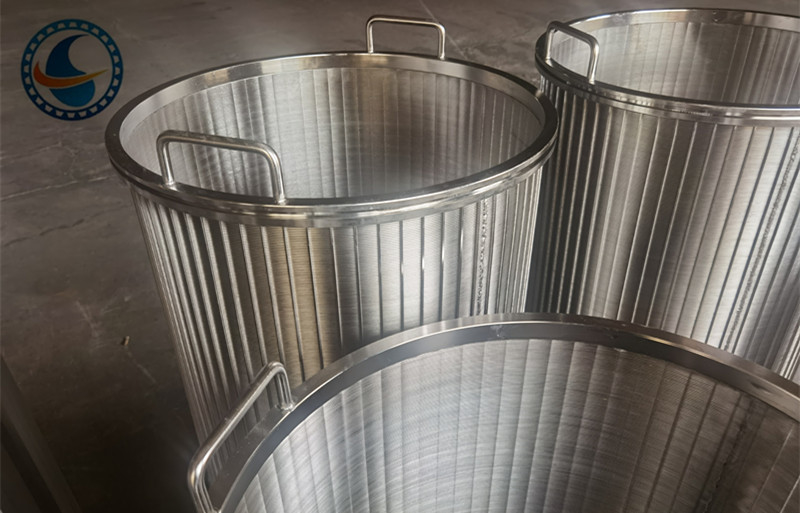

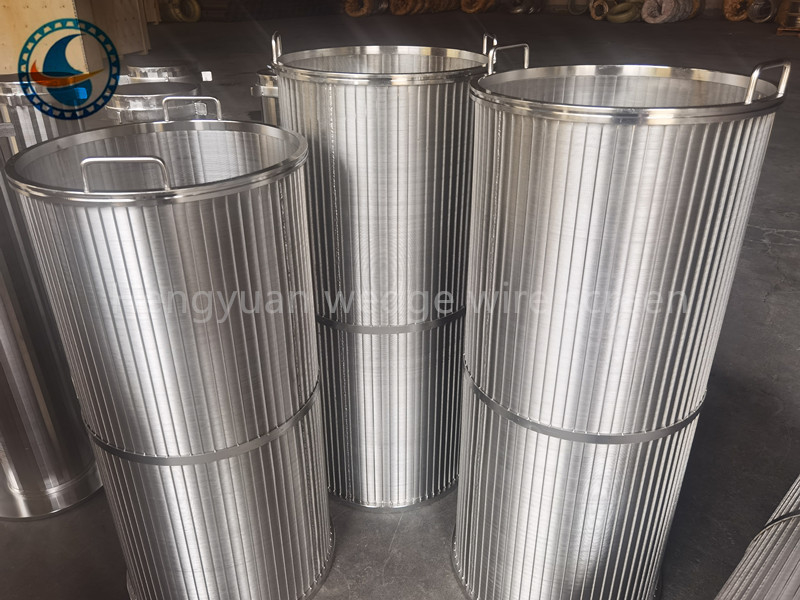

Wedge Wire Screen Basket are initially manufactured as cylinders with the slots and wires running radial around the outside and support rods internal and axial. In each application every intersection of wedge wire and support rod is welded for strength. Various wire and support rod sizes can be used to produce screen designs for your particular application.
Wedge Wire Screen Basket can be manufactured in various standard diameters ranging from 17mm I.D. to 1270mm I.D. Cylinders with a required I.D. larger than 1270mm can be fabricated in segments.
Our standard size toolings are designed to match up with standard pipe sizes to service the water bore industry.
Wedge wire screen basket, once manufactured, can be reverse rolled to any desired sieve radius, or flat rolled, to suit many different applications. Surround frames, or stiffener bars, can be added to suit your needs.
|
Name: Wedge Wire Screen Basket,Johnson Wedge Wire Screen,Water well screen, Wire warp screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Rotary filter drum. |
| Material: Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc. |
| Diameter: From OD 25-1300mm |
| Slot: From 0.025-100mm |
| Length: From 100-6000mm |
| Wrap wire:1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc. |
| Support rod:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange ,Closed up etc. |
|
Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens, Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
1. Triangle wedge wire smooth surface inside, filtering from inside to outside
2. Triangle wedge wire smooth surface outside,support rod inside, filtering from outside to inside.
3. Flange or stainless steel plate at both ends.
4. Cylinder body plus flat steel, square steel, spiral and so on,it can be customized
5. Notched sieve tube, convenient for material in and out.
