Name: Stainless Steel 321 Wound Slot Johnson Vee Wire Screen Cylinder For Strainer
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY0010
Price: 260.00 USD
Availability: InStock

Home > PRODUCTS > Rotary Screen Drum >

Stainless Steel 321 Wound Slot Johnson Vee Wire Screen Cylinder For Strainer

ss 321 johnson vee wire screen

strainer johnson vee wire screen

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY0010

Request A Quote

Product Details

Material:

Stainless Steel 321

Slot Size:

0.75 Mm

Wire Size:

1*2/1.5*2.5/2.2*3.5

Rod Size:

2*3/2.2*3.5/3*4.6

Wire Shape:

V Shape

Filter Type:

From Inside To Outside

Diameter:

40-1500mm Can Be Made

Length:

Max 6 Meter

Frame:

Flange/ None/ Requirment

Filter Rate:

15-70%

Backwash Johnson V Shape Filter Element With Handle Basket

Get Best Price

Video

Reverse Back Wash Filter Drum Johnson Wire Screen Slot Cylinder 316l

Get Best Price

Video

Stainless Steel 321 Wound Slot Johnson Vee Wire Screen Cylinder For Strainer

Get Best Price

Video

Slot 20 Stainless Steel 304 Filter Screen Wedge Wire Screen Back Wash Element

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

Stainless Steel 321 Wound Slot Johnson Vee Wire Screen Cylinder For Strainer

Product Specifications

Attribute	Value
Material	Stainless Steel 321
Slot size	0.75 mm
Wire size	12/1.52.5/2.2*3.5
Rod size	23/2.23.5/3*4.6
Wire shape	V shape
Filter type	From inside to outside
Diameter	40-1500mm can be made
Length	Max 6 meter
Frame	Flange/ none/ requirement
Filter rate	15-70%

Product Description

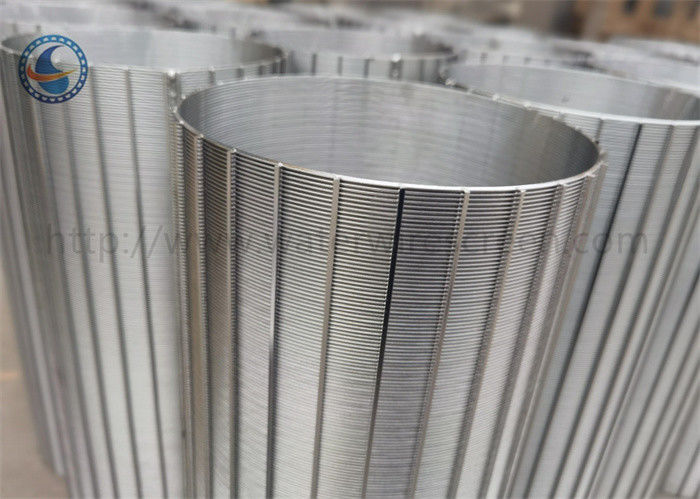

Johnson Type V wire Wound Slot Screen Cylinder For Strainer is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights. There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open area to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

Filter Precision Conversion

Microns	10	25	30	40	50	80	100	120	150	200	400	800	1500	3000
Mesh	1500	650	550	400	300	200	150	120	100	80	40	20	10	5
MM	0.01	0.025	0.03	0.04	0.05	0.08	0.1	0.12	0.15	0.2	0.4	0.8	1.5	3.0

Key Advantages

The slit size is accurate and the filtering precision is high
Strong structure with high ventilation efficiency
Good heat dissipation and high temperature resistance
Excellent corrosion resistance and mechanical properties
Long service life, safe and reliable
High strength, stiffness and bearing capacity
Advanced fusion welding technology for highest screening efficiency
Strongest anti-tensile capacity with minimal maintenance
Option for polyurethane framing to strengthen structure

Regular Specifications

Material: stainless steel 302, 304, 316, 304L, 316L 2205 2507 and so on
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside
Slot type: Inside circle wire and slot, inside vertical wire and slot
Other components: Flange, stiffener, lifting handle, and other type components by request

Sizes of the Wire and Rod
