Stainless Stelel 304 Water Well Wedge Wire Screen 89mm Diameter

Stainless Stelel 304 Water Well Wedge Wire Screen 89mm Diameter

Stainless Steel 304 Water Well Screen

Stainless Stelel 304 Wedge Wire Screen

89mm Dia Wedge Wire Screen

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY001

Contact Us

Request A Quote
Product Details
Material:
Stainless Steel 304 316L
Grade:
304 316L 304L 321 2205 2507
Slot Size:
0.5mm-30MM
Diameter:
89mm
Length:
2.9M/5.8M,1000-6000MM
End Connection:
Thread Couplings ( Male / Female )
Package:
Woden Box, Container
Product Description

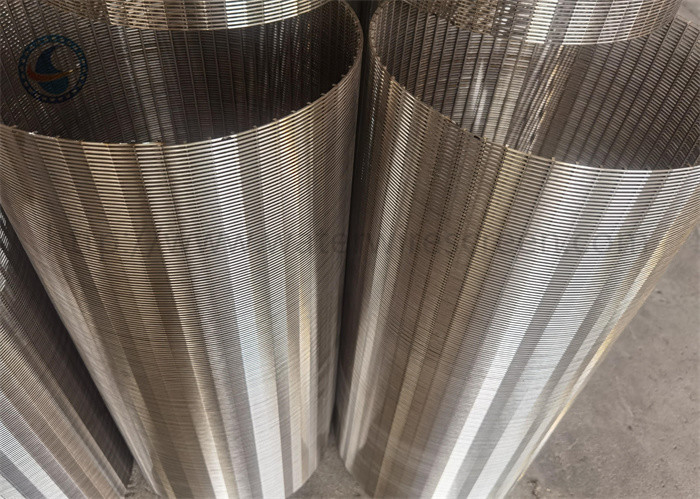

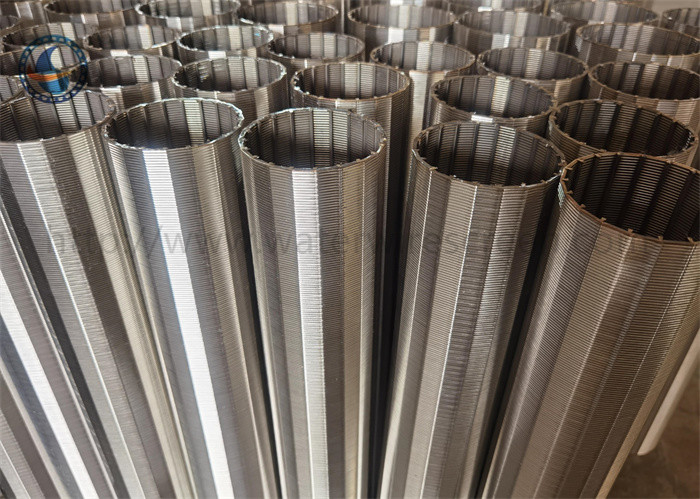

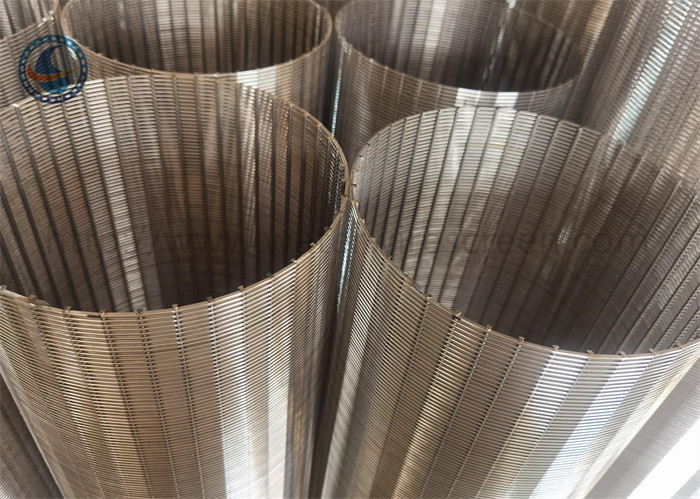

Stainless Stelel 304 Water Well Screen Wedge Wire Screen Pipe Wound Screen

Stainless Steel Continuous Gap Wire Wrap Screen Pipe OD 219



Working principle of seam screen:


Slit vibrator is composed of a set of cylindrical shaker with straight equipment. There is a bias block or a bias wheel at both ends of the cylindrical shaker. When the motor drives the bias wheel to rotate, centrifugal force occurs and is transmitted to the equipment on the main shaft in the cylinder, so that the main shaft moves in a circle around the center line fixed on it. Thus, the two supporting rings fixed at both ends of the spindle roll along the axis direction.
Because the two supporting rings are located in opposite directions of the roll and parallel to each other, a gap is formed between them parallel to the horizontal plane. When the material enters from the feed end, it falls into the lower discharge port through the gap, and the other part of the material is discharged from the discharge port and discharged out of the machine through the discharge tank.
The working principle of the seam screen: when the motor drives the biased wheel clockwise rotation by the coupling, the centrifugal force drives the equipment at both ends of the vibrator to the opposite direction along the axis of the support ring light, at the same time installed in the rotor above the two isolation tautts also follow the rotation of the rotor and contraction deformation, So the whole rotor is moving back and forth along a sinusoidal track at a certain point of view to the horizontal plane.



Specificarion:



MaterialA Stainless steel
Grade 304
O.D 219mm
Size 8"
Length 300mm-6000mm,2.9m,5.8m
Solt size 1.0 mm
End connection Thread Couplings ( male / female )
Wire size 93 #
Support rod 140 #
Wire shape V shape

Characteristic:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.



Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.



Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance



Regular Specification:



Material: Stainless steel 304, 304L, 316, 316L, 321. Low Carbon Steel Galvanized

Diameter: 30 - 1000mm, such as 63mm, 89mm, 117mm, 168mm, 219mm, 273mm, 325mm, 377mm and so on.

Inch: 3 " , 4 " , 6 " , 8 " , 10 " , 12 " , 14 " , 16 "  and so on.

Length: 2.9m and 5.8m is the regular length ,and we can make the length 300mm - 6000mm.

Slot size: 0.2mm , 0.5mm , 0.7mm , 1.0mm , 1.5mm. 0.1 - 45mm.

End connection: welded rings, thread couplings ( male / female )

V wire: 63 #, 93 #, 118#, and so on.

Support rod : diameter 300mm, 350mm, 380mm, 400mm, 480mm, 500mm and so on.



We can make the screen pipe as the customers' requested!



Use:



Johnson wire wrap screen is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
